Delta VFD040C43A-21

Chapter 7 Optional AccessoriesC2000 Plus
7-34

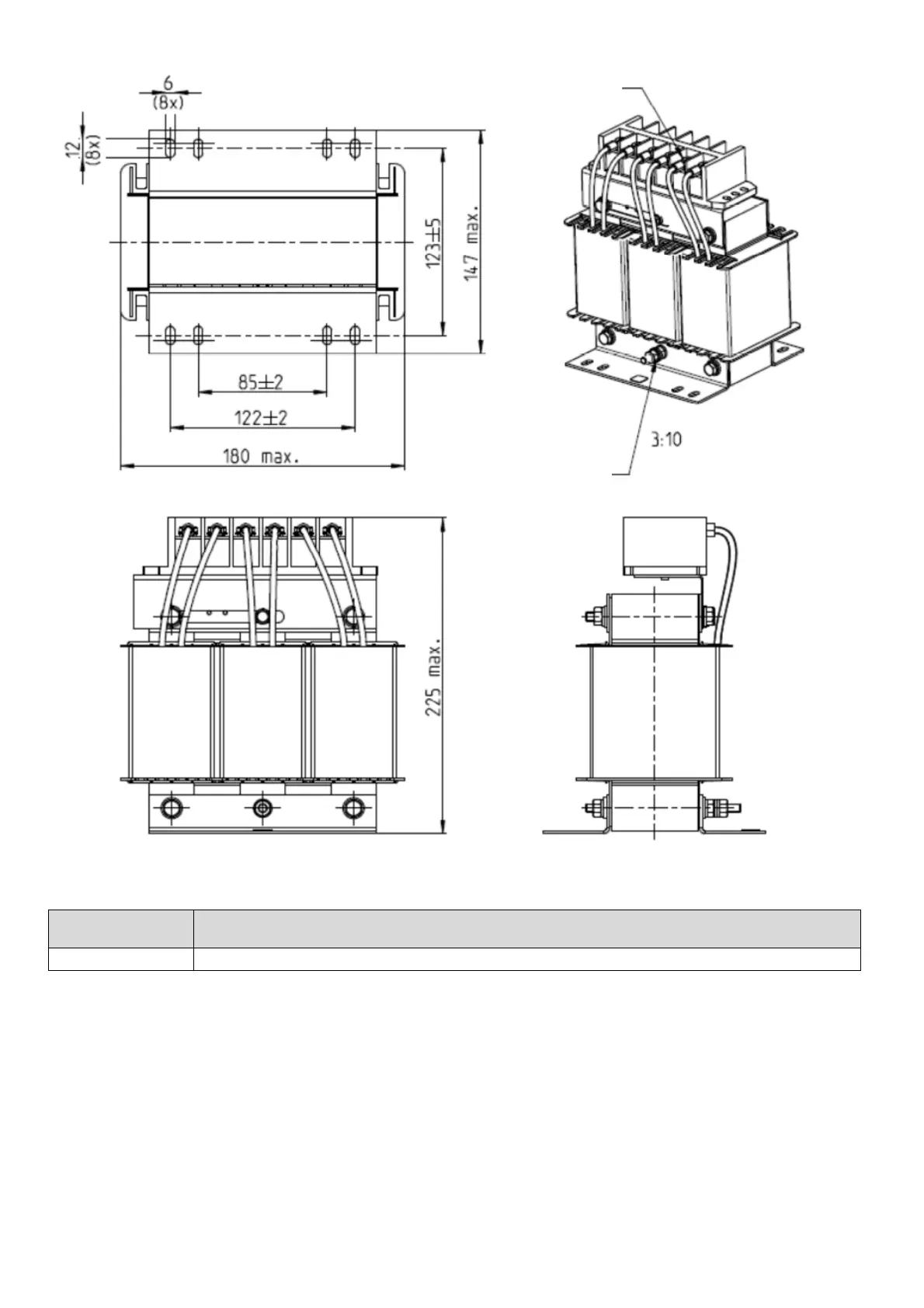

Figure 7-19
Unit: mm
AC Input Reactors
Delta part #
Dimensions
DR060AP405 Dimensions are as shown in the figures above.
Installing Screw M6
Table 7-37
PE Screw M6
Torque: 15.3–45.9 kg-cm /
(13.3–39.8 lb-in.) /
(1.5–4.5 Nm)
Screw length
must not
interfere with
the mounting
holes
