Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-35

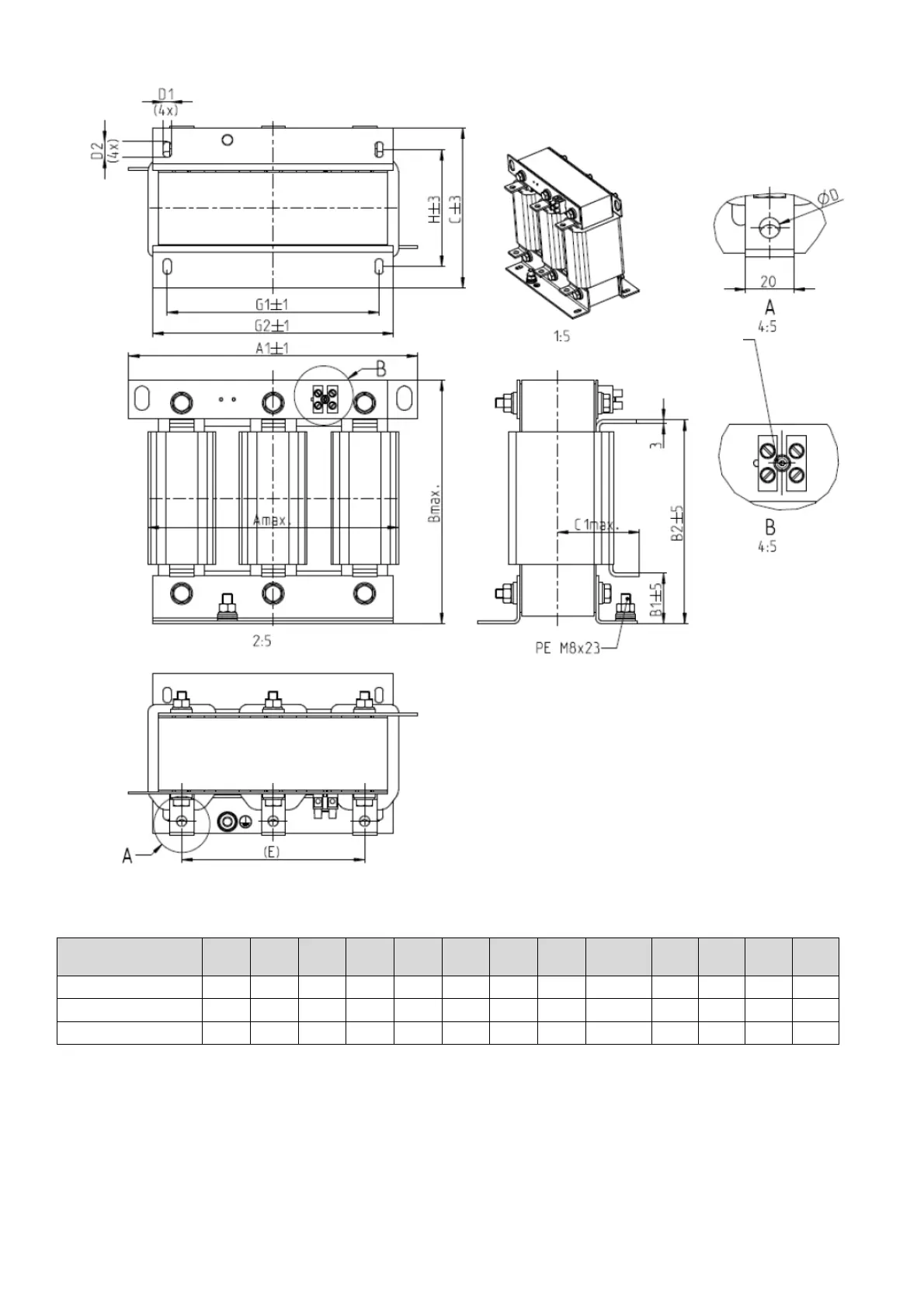

Figure 7-20
Unit: mm
AC Input Reactors
Delta part #
A A1 B B1 B2 C C1 D D1*D2 E G1 G2 H
DR073AP334 228
240
215
40 170
133
75 8.5
7*13 152 176 200 97
DR091AP267
228 240
245
40 195
133
90 8.8
7*13 152 176 200 97
DR110AP221
228 240
245
40 195
138
95 8.5
7*13 152 176 200 102
Table 7-38
Torque: 58.2–64.3 kg-cm /
(50.5–55.8 lb-in.) /
(5.7–6.3 Nm)
Terminals 4 mm
2
Torque: 8.2–10.2 kg-cm /
(7.1–8.9 lb-in.) /
(0.8–1.0 Nm)
