Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-49

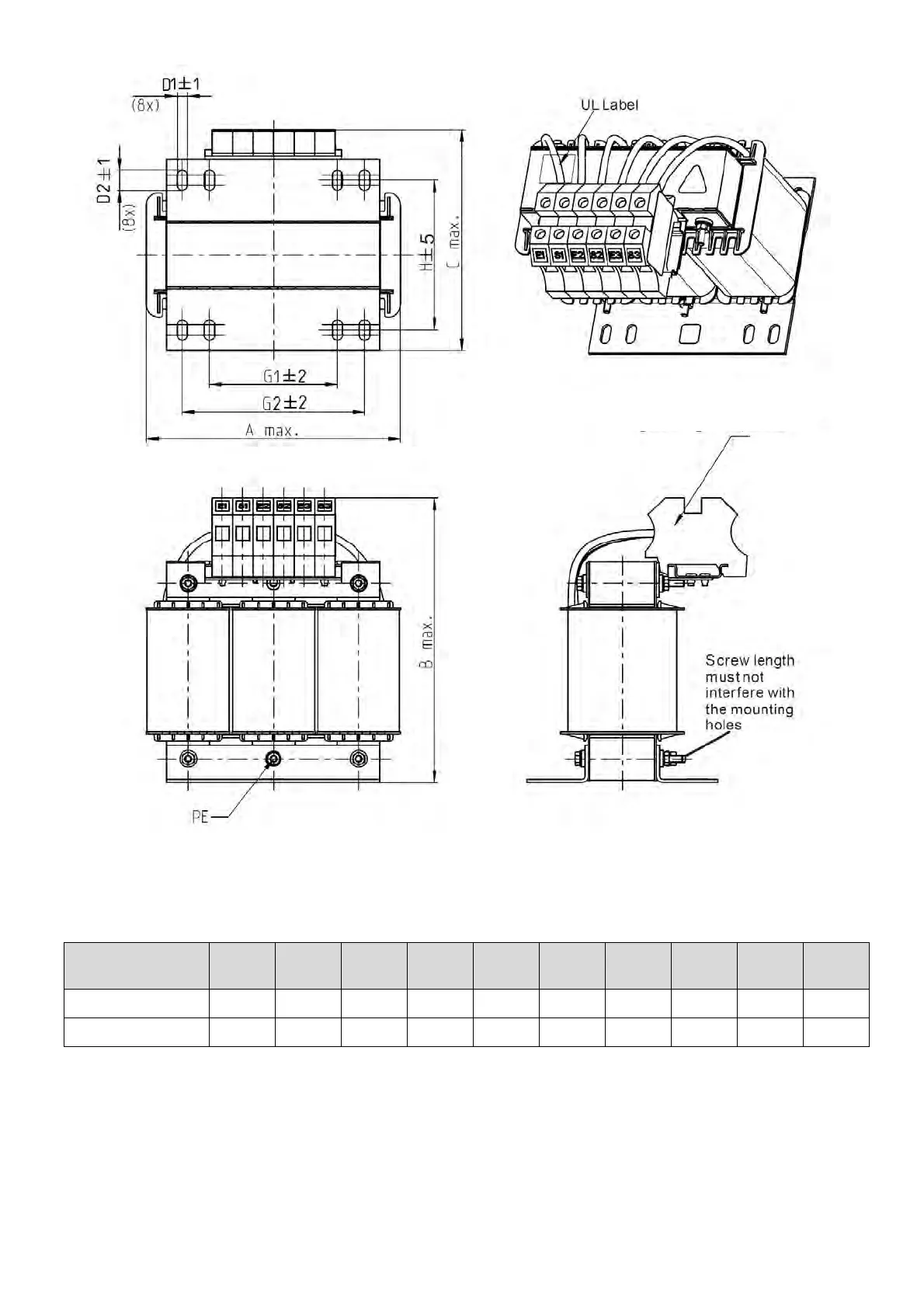

Figure 7-27
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H G G1 Q M PE
DR049LP215 180 205 175 6*12 115 85 122 16 1.2–1.4 M4
DR065LP162 180 215 185 6*12 115 85 122 35 2.5–3.0 M4
Table 7-55
Terminal 16 mm
2
Torque: 12.2–14.3 kg-cm / (10.6–12.4 lb-in) /
(1.2–1.4 Nm)
