Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-48

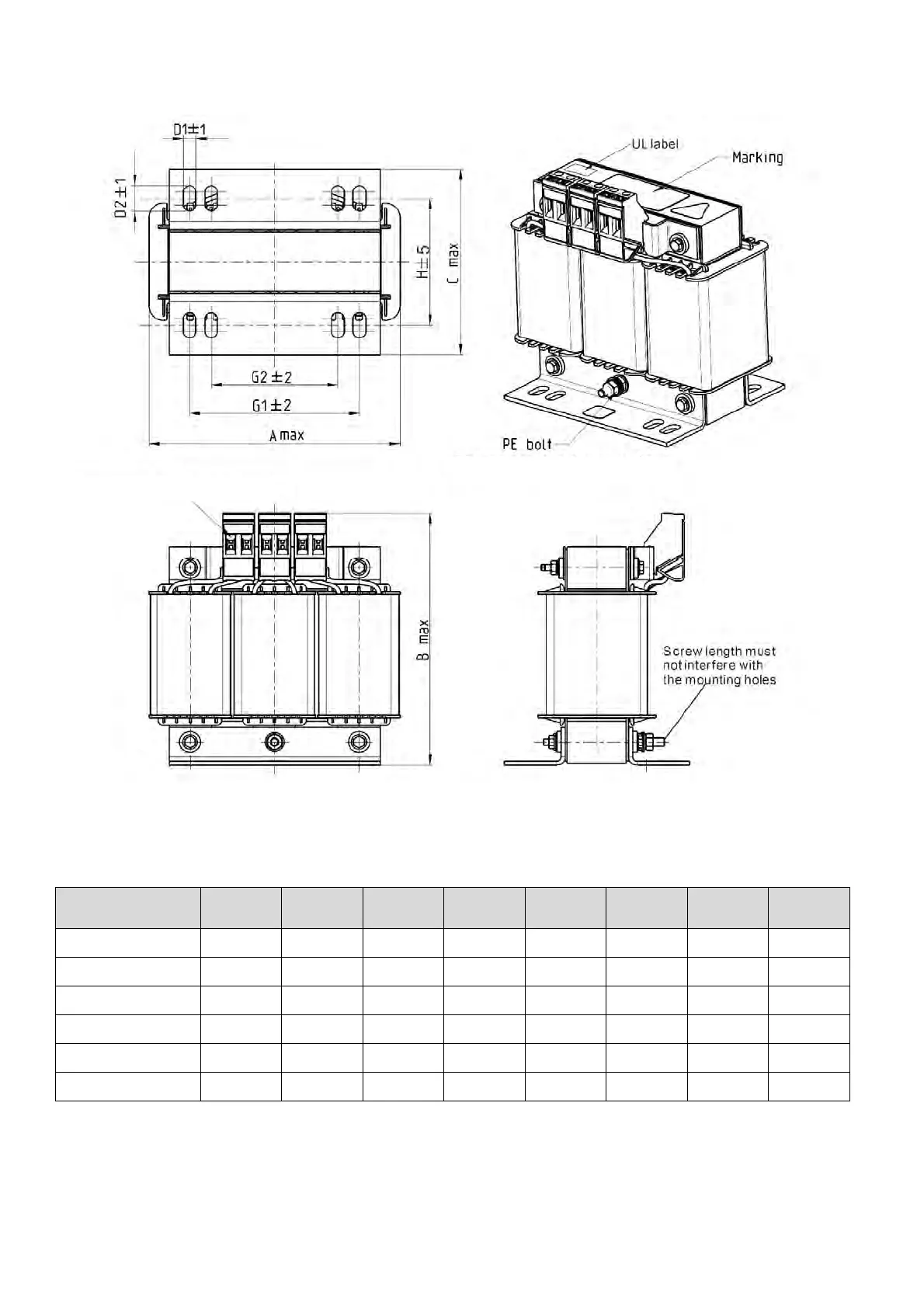

AC output reactor dimensions and specification:
Figure 7-26
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H H1 H2 PE
DR005L0254 96 110 70 6*9 42 60 40 M4
DR008L0159 120 135 96 6*12 60 80.5 60 M4
DR011L0115 120 135 96 6*12 60 80.5 60 M4
DR017LP746 120 135 105 6*12 65 80.5 60 M4
DR025LP507 150 160 120 6*12 88 107 75 M4
DR033LP320 150 160 120 6*12 88 107 75 M4
Table 7-54
Torque: 6.1–8.2 kg-cm / (5.3–7.1 lb-in) /
(0.6–0.8 Nm)
Torque: 10.2–12.2 kg-cm / (8.9–10.6 lb-in) /
(1.0–1.2 Nm)
