Chapter 7 Optional AccessoriesC2000 Plus
7-51

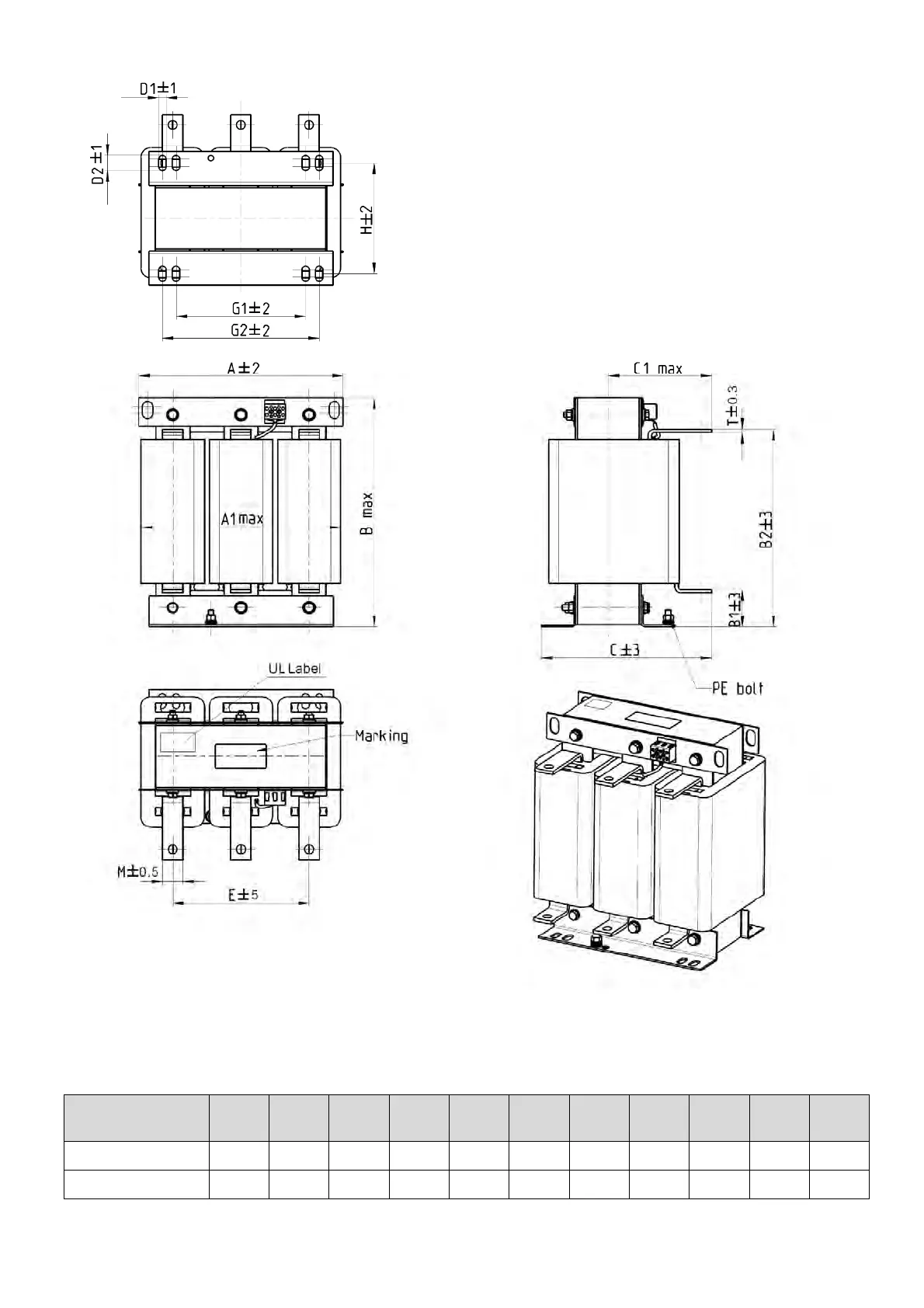

Figure 7-29
Unit: mm
Output AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E H M*T
DR276AP049 270 260 320 50 265 200 140 10*18 176 106 30*5
DR346LP037 270 265 340 50 285 200 140 10*18 176 106 30*5
Table 7-57
