Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-52

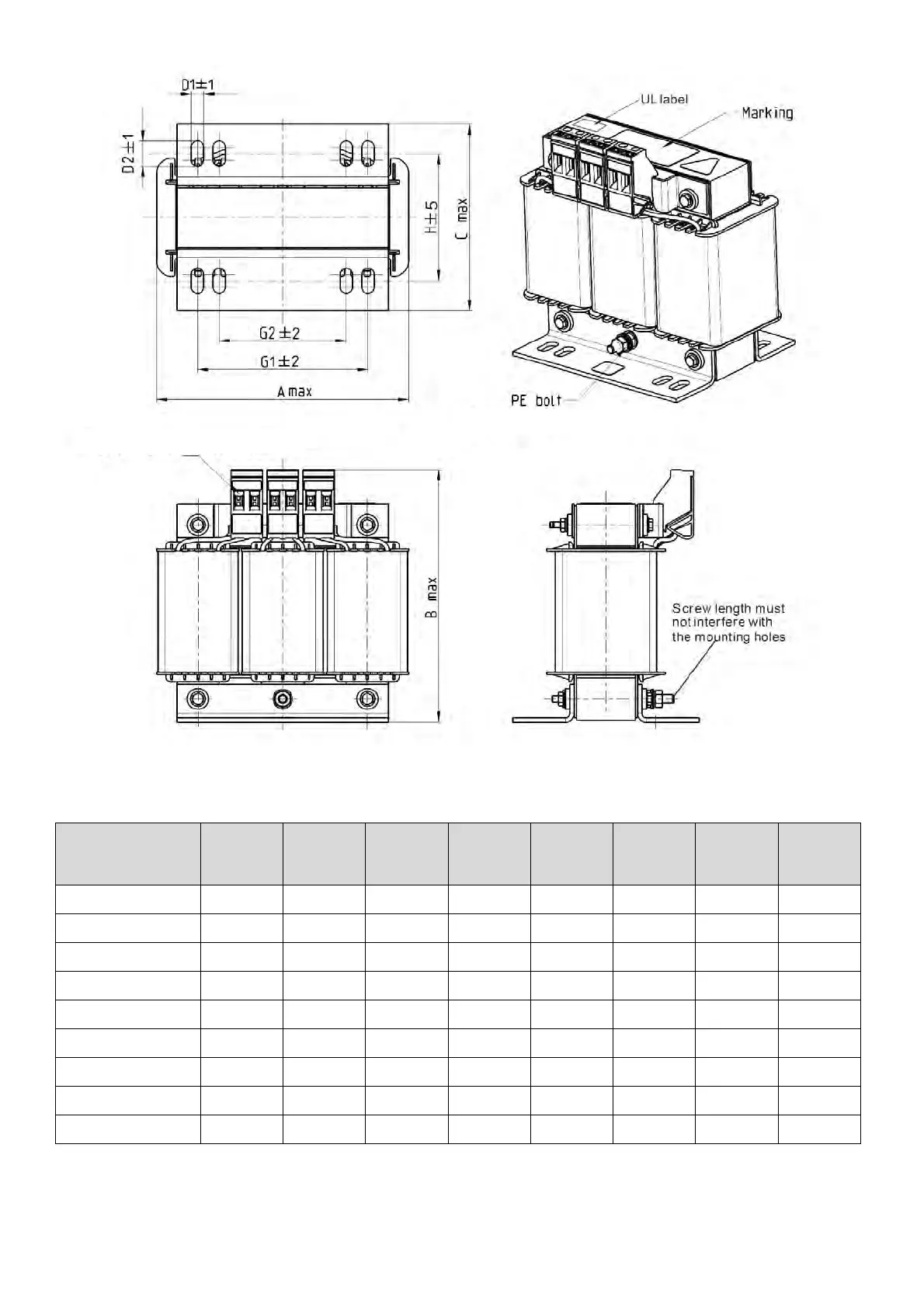

Figure 7-30
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE
DR003L0810 96 115 65 6*9 42 60 40 M4
DR004L0607 120 135 95 6*12 60 80.5 60 M4
DR006L0405 120 135 95 6*12 60 80.5 60 M4
DR009L0270 150 160 100 6*12 74 107 75 M4
DR010L0231 150 160 115 6*12 88 107 75 M4
DR012L0202 150 160 115 6*12 88 107 75 M4
DR018L0117 150 160 115 6*12 88 107 75 M4
DR024LP881 150 160 115 6*12 88 107 75 M4
DR032LP660 180 190 145 6*12 114 122 85 M6
Table 7-58
Torque: 10.2–12.2 kg-cm / (8.9–10.6 lb-in) /
(1.0–1.2 Nm)
Torque: 6.1–8.2 kg-cm / (5.3–7.1 lb-in) /
(0.6–0.8 Nm)
