Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-53

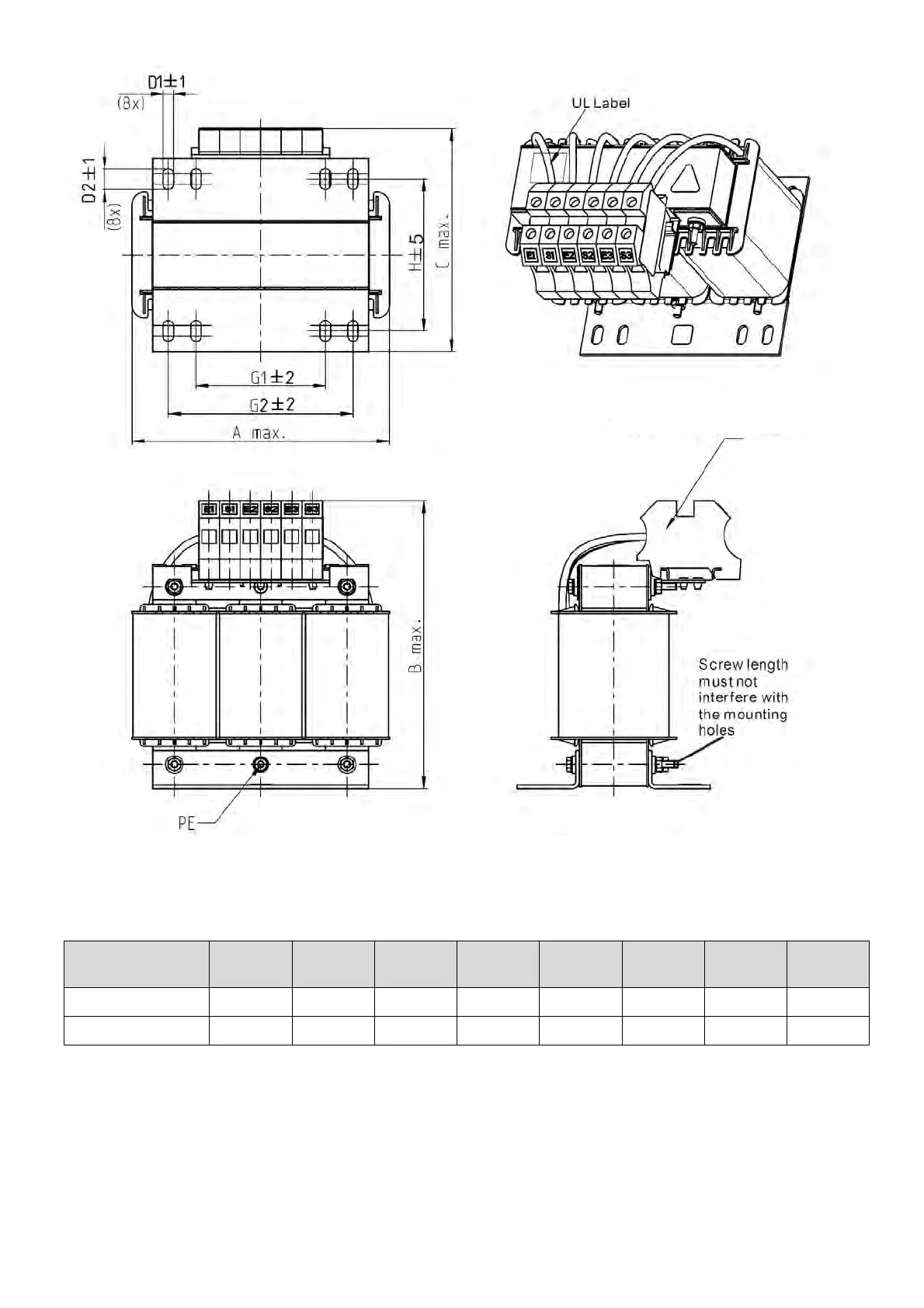

Figure 7-31
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE
DR038LP639 180 205 170 6*12 115 85 122 M4
DR045LP541 235 245 150 7*13 85 / 176 M6
Table 7-59
Terminals 16 mm
2
Torque: 12.2–14.3 kg-cm / (10.6–12.4 lb-in) /
(1.2–1.4 Nm)
