Chapter 7 Optional AccessoriesC2000 Plus
7-55

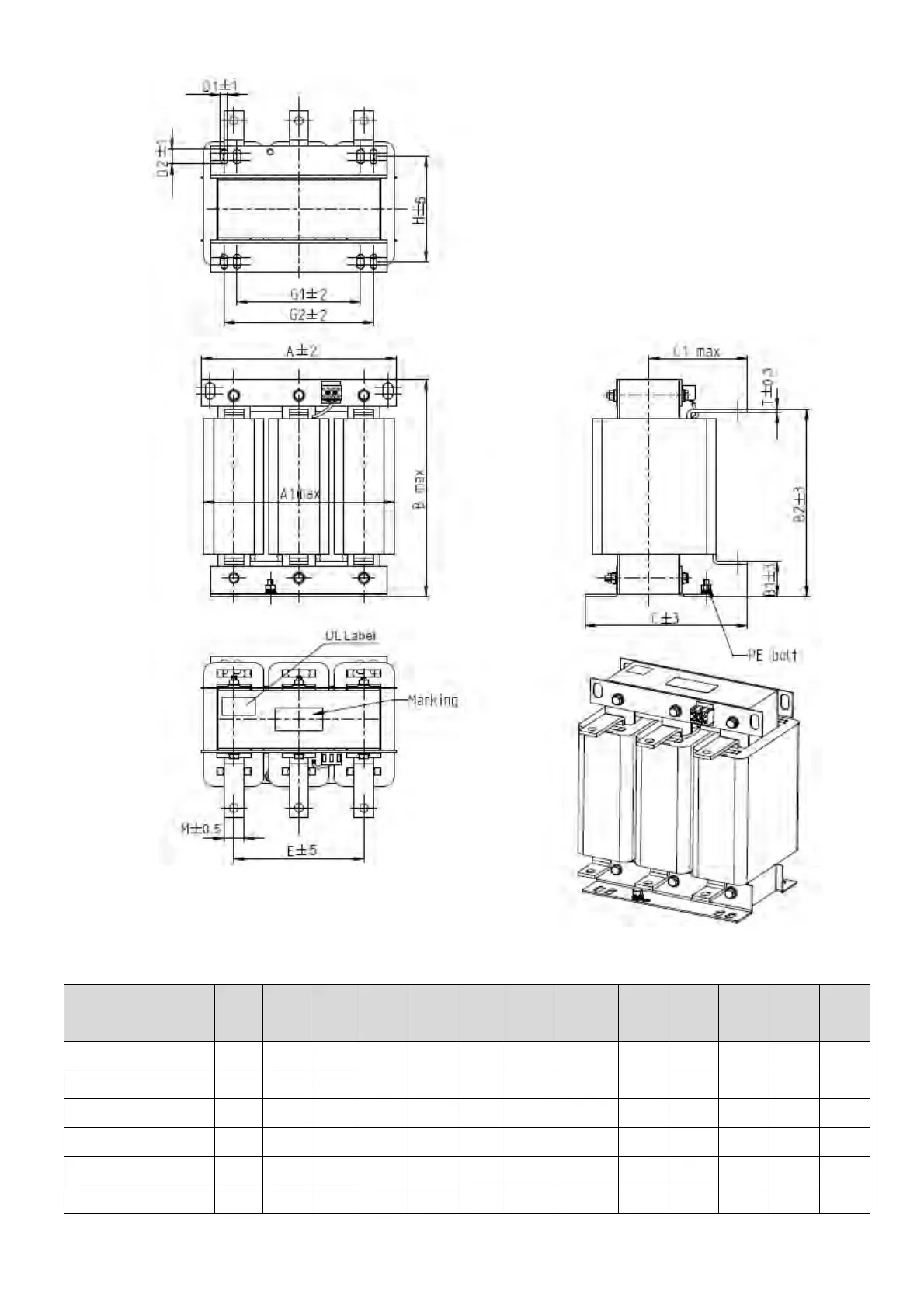

Figure 7-33
Unit: mm
Output AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 G2 H M*T
DR150LP162 270 264 265 51 208 192 125 10*18 176 200 / 118 30*3
DR180LP135 300 295 310 55 246 195 125 11*22 200 230 190 142 30*3
DR220LP110 300 298 310 57 248 210 140 11*22 200 230 190 142 30*5
DR260LP098 300 295 330 56 270 227 140 11*22 200 230 190 160 30*5
DR310LP078 300 298 350 54 288 233 145 11*22 200 230 190 160 30*5
DR370LP066 300 298 350 54 289 268 170 11*22 200 230 190 185 40*5
Table 7-61
