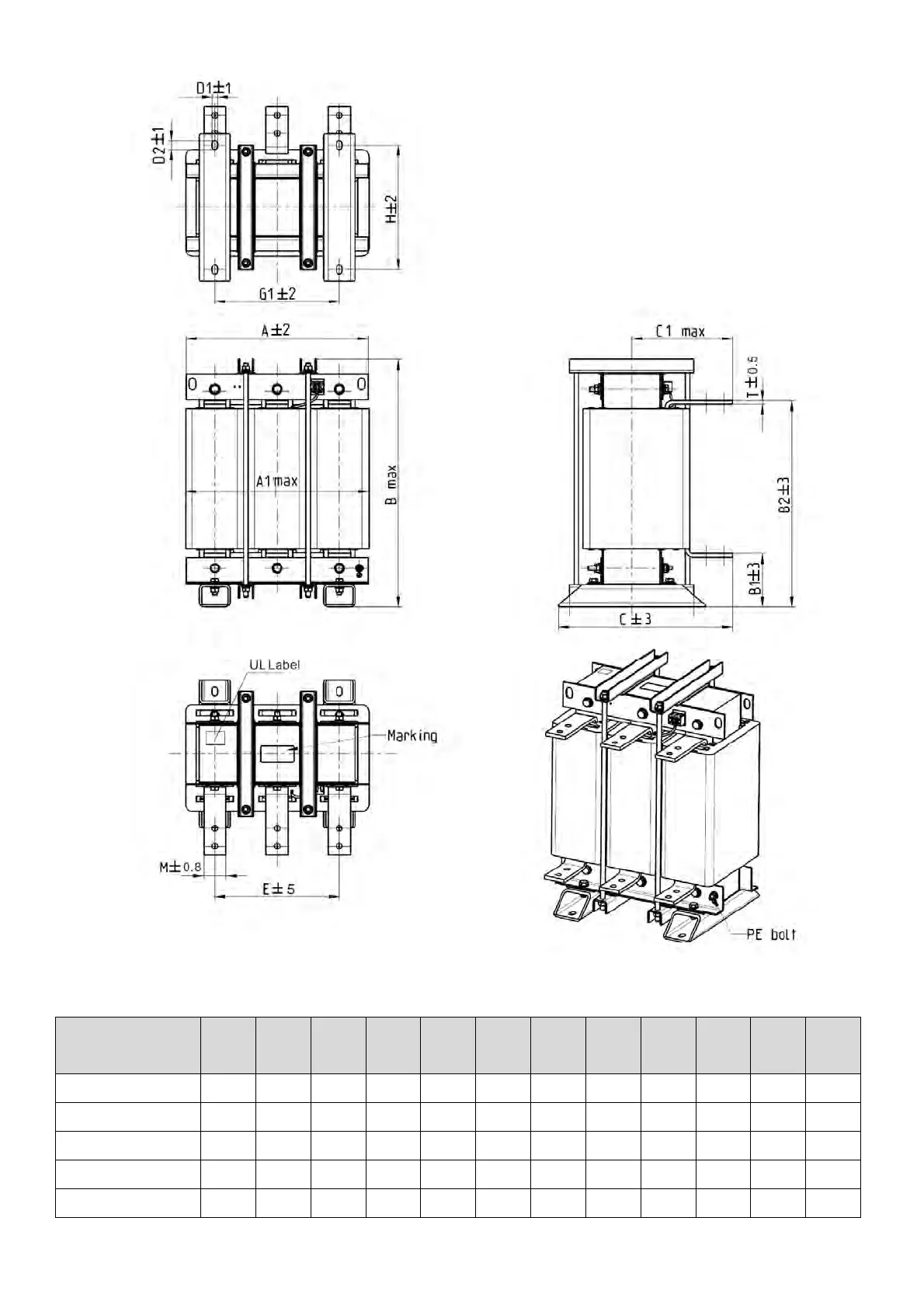

Figure 7-34
Unit: mm
Output AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T
DR460LP054 360 355 510 106 401 346 215 12*20 240 240 240 50*5
DR550LP044 360 355 510 106 401 358 220 12*20 240 240 250 50*5
DR616LP039 360 355 510 110 401 376 230 12*20 240 240 270 50*8
DR683LP036 360 355 510 110 401 396 240 12*20 240 240 290 50*8
DR866LP028 410 418 570 120 464 402 245 12*20 280 280 290 50*8
Table 7-62
