Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-116
 Fan Removal
Frame A
Model “MKC-AFKM” : Heat Sink Fan
Applicable models
VFD015C23A-21; VFD022C23A-21; VFD037C23A-21; VFD022C43A-21; VFD037C43A-21; VFD040C43A-21;
VFD055C43A-21; VFD022C4EA-21; VFD037C4EA-21; VFD040C4EA-21; VFD055C4EA-21; VFD015C53A-21;
VFD037C53A-21

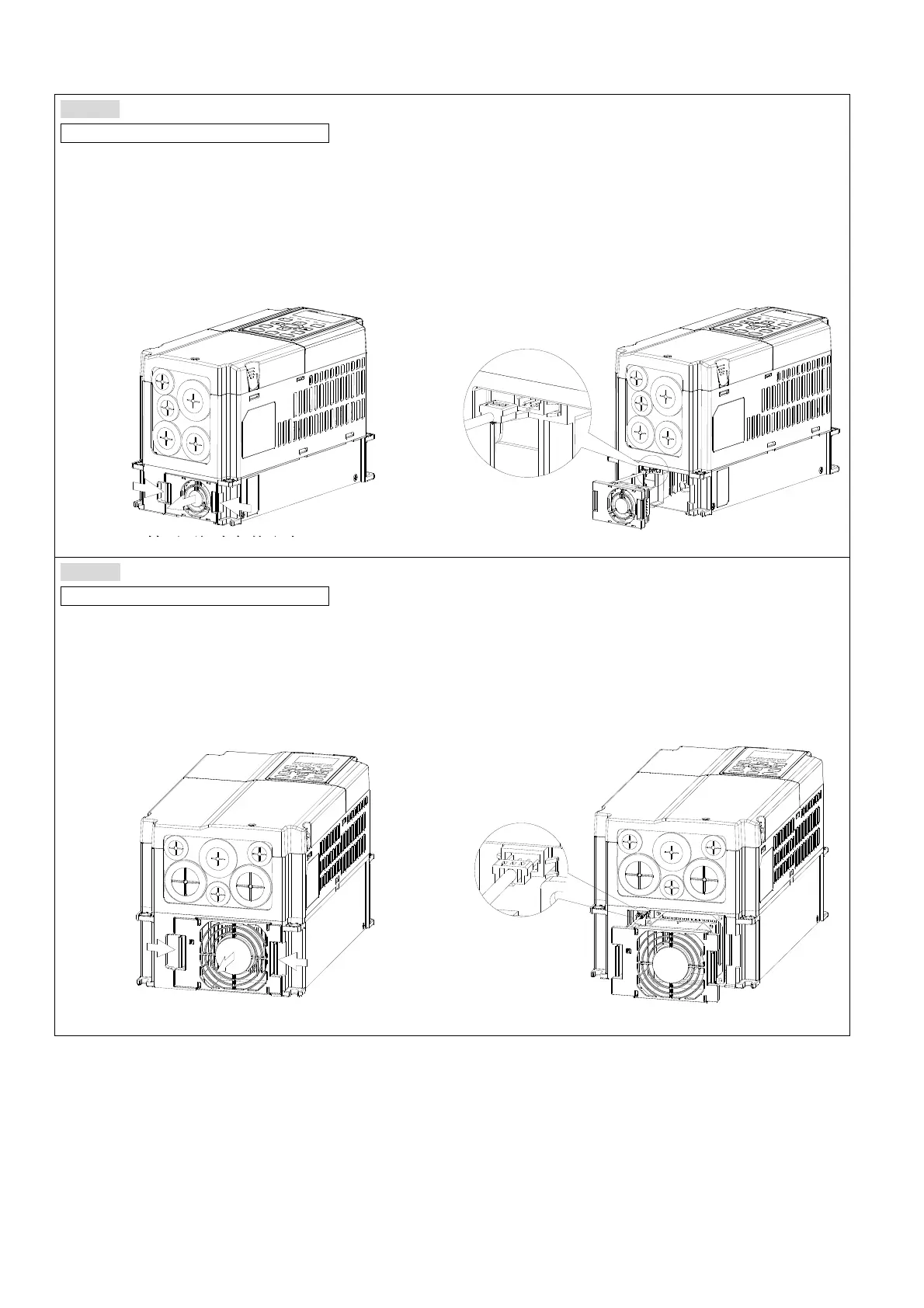

1. Refer to the figure below, press the tabs on both
side of the fan to successfully remove the fan.
Figure 7-147
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 7-148
Frame B
Model ”MKC-BFKM1” Heat Sink Fan
Applicable models
VFD055C23A-21; VFD075C43A-21; VFD075C4EA-21; VFD055C53A-21; VFD075C53A-21; VFD110C53A-21;
VFD150C53A-21
1. Refer to the figure below, press the tab on both side
of the fan to successfully remove the fan.
Figure 7-149
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 7-150
