Chapter 7 Optional AccessoriesC2000 Plus
7-129

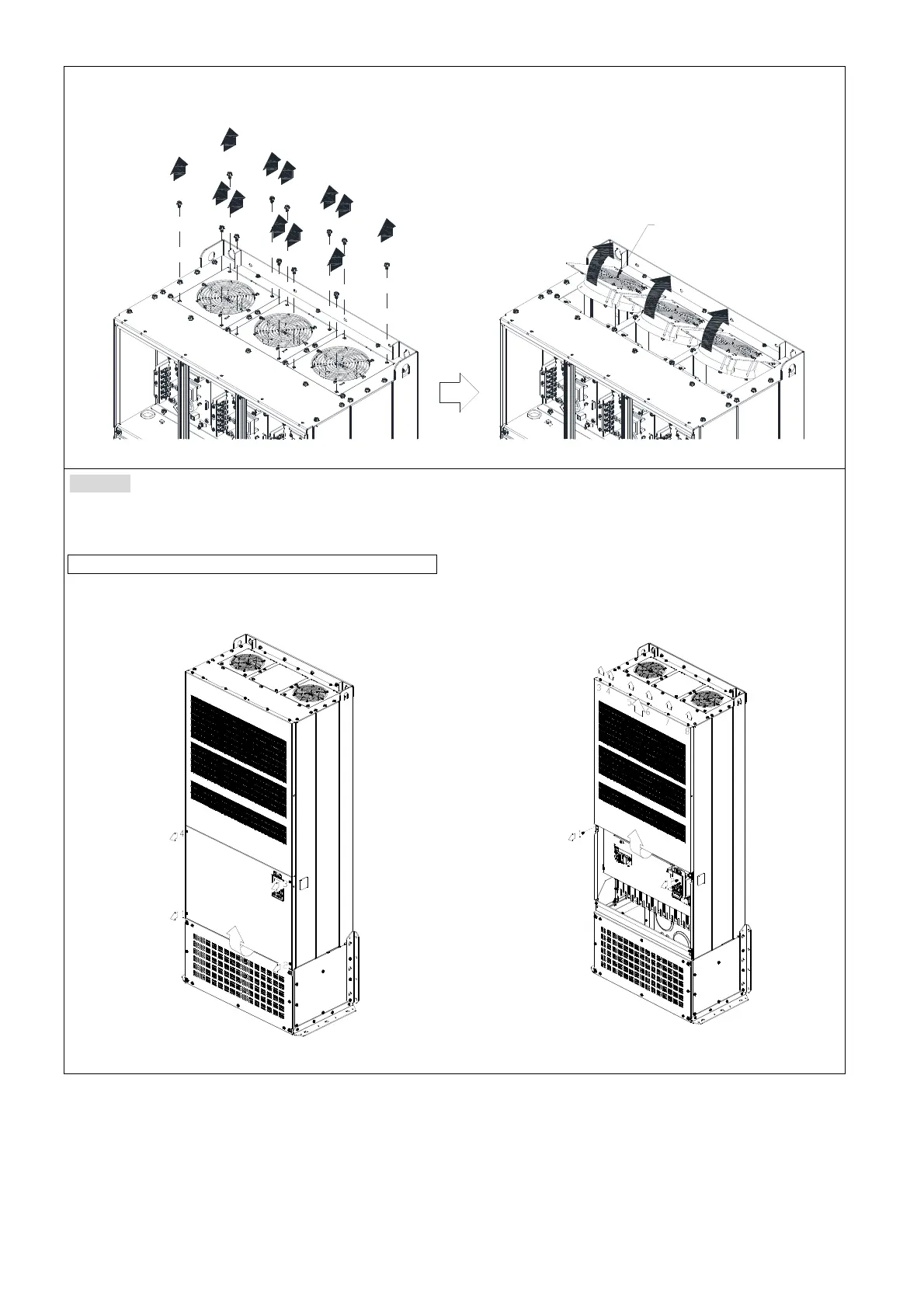

4. Two sets of fans: Loosen the screw 13–16 / 21–24 and remove the fan A and C.
Three sets of fans: Loosen the screw 13–24 and remove the fan A, B, and C.
Screw torque: 35–45 kg-cm / (30.4–39.1 Ib-in.) / (3.4–4.4 Nm)
C
A
B
取出風扇時,
請先確認電源接頭已移除
16
15
17
24
14
22
19
20
21
13
23
18
Figure 7-186
Frame H
Applicable models
VFD4000C63B-00; VFD4000C63B-21
Fan model “MKC-HFKM1” Heat Sink Fan, Two sets
1. Loosen the screw 1–4 and remove the top cover.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)
Figure 7-187
2. Loosen the screw 1–8 and remove the top cover.
Screw torque: 24–26kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
Figure 7-188
Make sure the power is
disconnected before
removing the fan.
To Next Page
