Chapter 7 Optional AccessoriesC2000 Plus
7-130

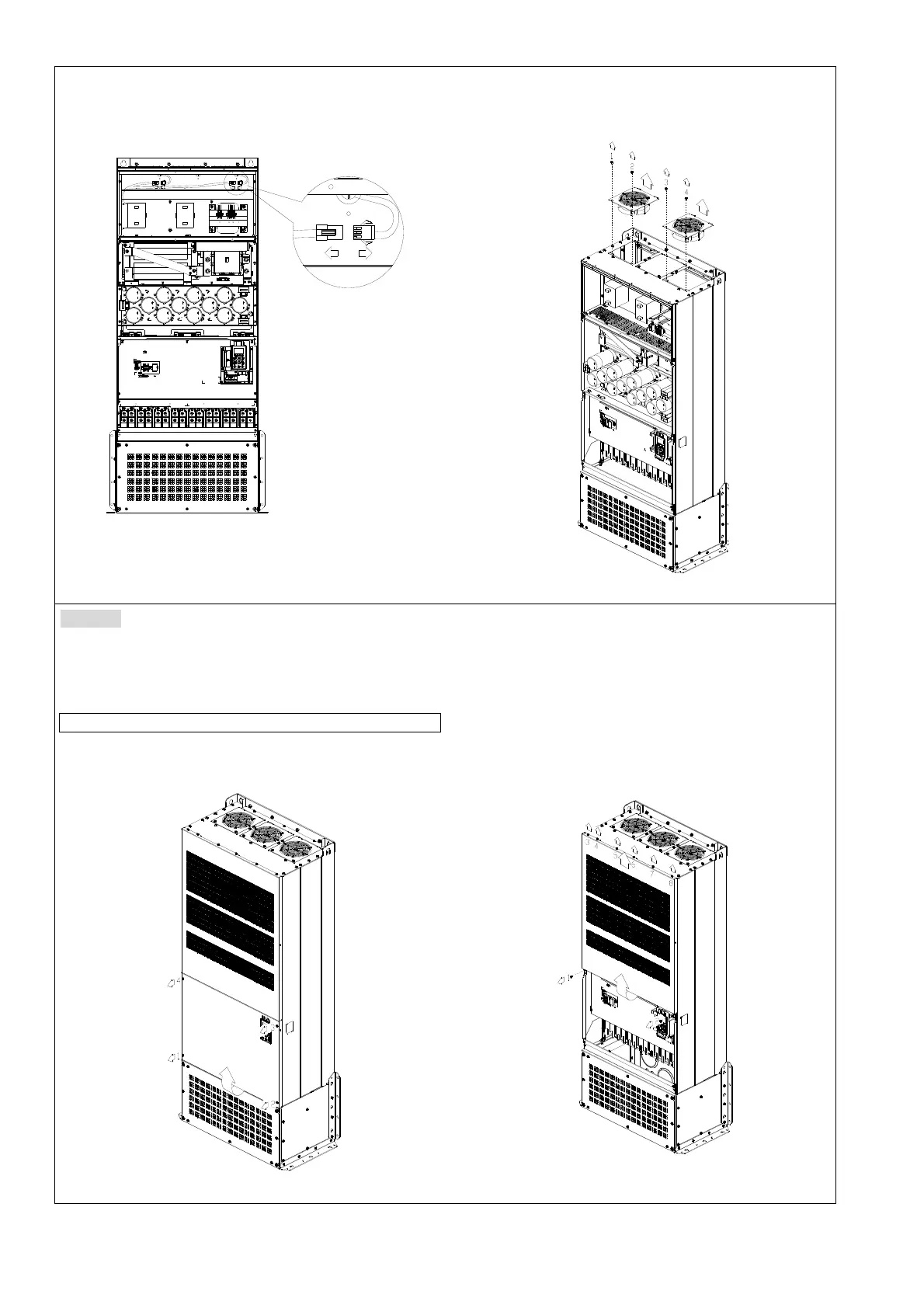

3. Disconnect the fan connector.
Figure 7-189
4. Loosen screws 1–4 (as shown below) and remove
the fan. Make sure the fan is disconnected when
removing. Screw torque: 24–26 kg-cm / (20.8–22.6
Ib-in.) / (2.4–2.5 Nm)
Figure 7-190
Frame H
Applicable models
VFD4500C63B-00; VFD5600C63B-00; VFD6300C63B-00; VFD4500C63B-21; VFD5600C63B-21;
VFD6300C63B-21
Fan model “MKC-HFKM1” Heat Sink Fan, Three sets
1. Loosen the screw 1–4 and remove the top cover.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)
Figure 7-191
2. Loosen the screw 1–8 and remove the top cover.
Screw torque: 24–26kg-cm / (20.8–22.6 Ib-in.) /
(2.4–2.5 Nm)
Figure 7-192
To Next Page
