Chapter 7 Optional AccessoriesC2000 Plus
7-131

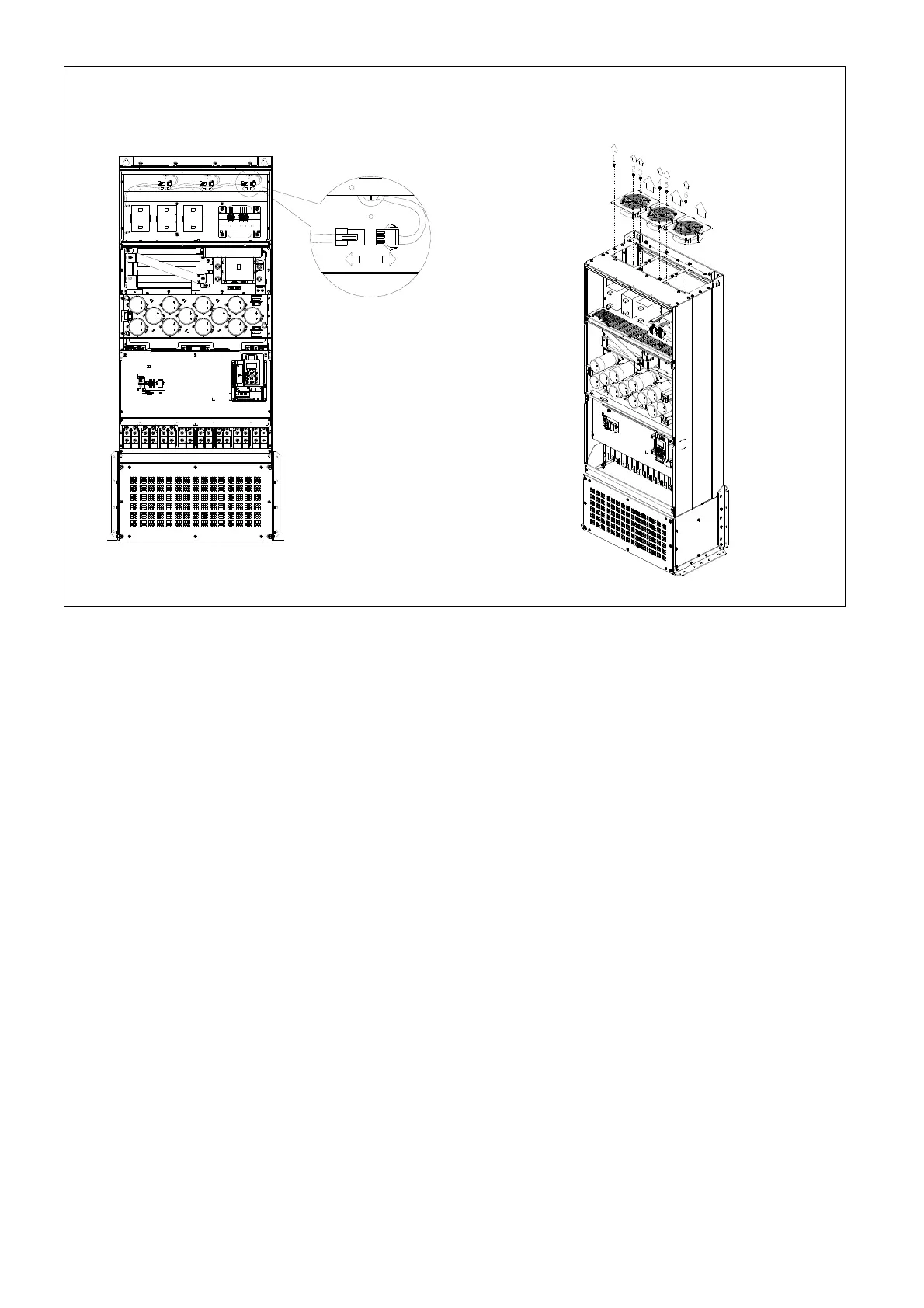

3. Disconnect the fan connector.


Figure 7-193
4. Loosen screws 1–6 (as shown below) and remove
the fan. Make sure the fan is disconnected when
removing. Screw torque: 24–26 kg-cm / (20.8–22.6
Ib-in.) / (2.4–2.5 Nm)


Figure 7-194
