Chapter 10 Digital KeypadC2000 Plus
10-16
If the PLC program is not available in the control
board, the PLFF warning displays when you choose
option 2 or 3.
In this case, choose option 1: Disable to clear PLFF
warning.
11. Copy PLC
Four groups of parameters are available to copy.
The steps are shown in the example below.
Example: PLC program saved in the motor drive.

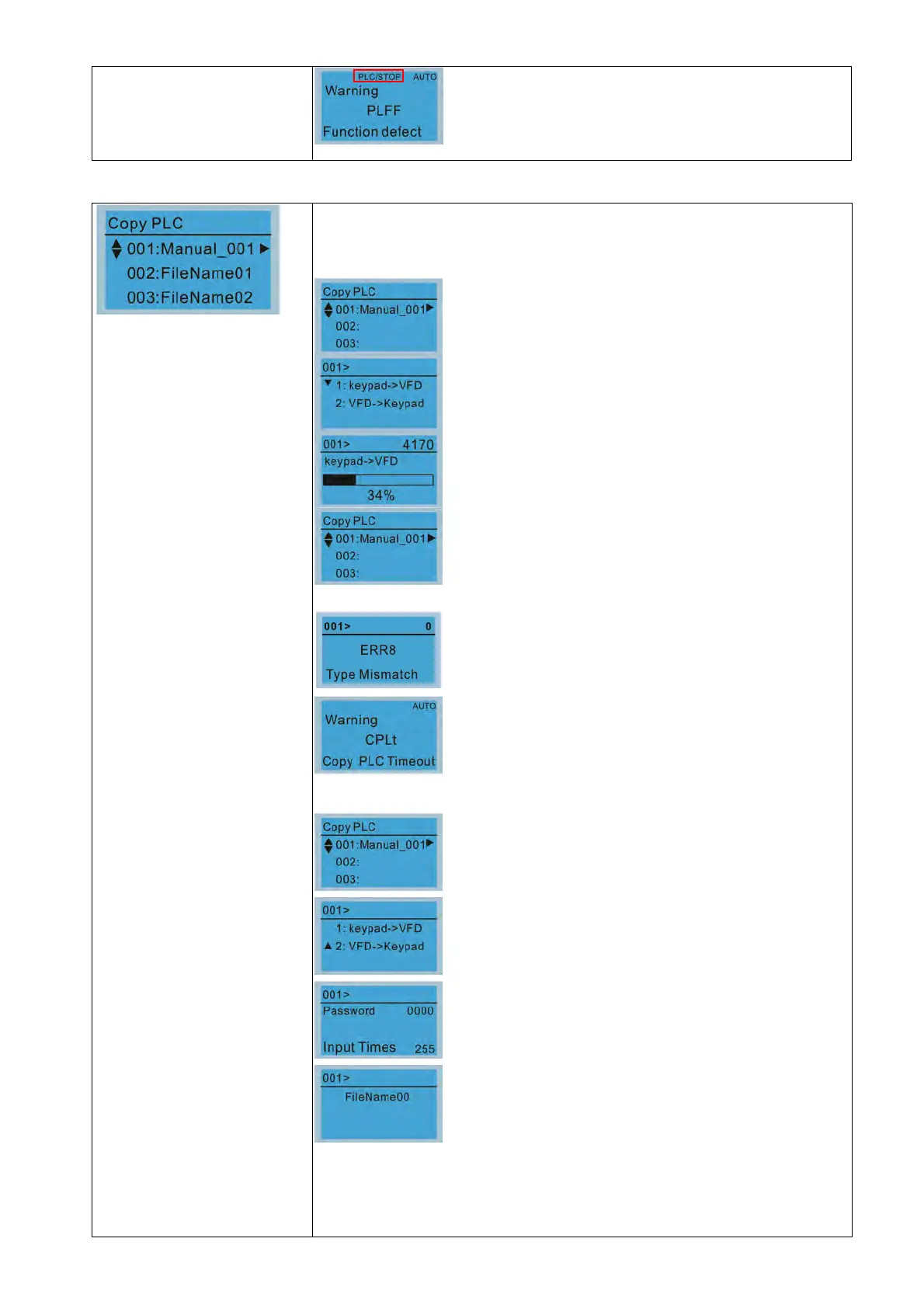

1. Go to Copy PLC
2. Select the PLC program to copy and press ENTER.
1. Select 1: KeypadVFD
2. Press ENTER to go to the “KeypadVFD” screen.
Begin copying the PLC program until it is done.
After copying is done, the keypad automatically
returns to this screen.
NOTE:
If you select “Option 1: KeypadVFD”, check if the
PLC program is built-in to the KPC-CC01 keypad. If
the PLC program is not available in the keypad when
you select “Option 1: KeypadVFD”, an “ERR8
Warning: Type Mismatch” displays on the screen.
If you unplug the keypad and plug it back while
copying the PLC program, the screen displays a CPLt
warning.
Example: PLC program saved in the keypad.
1. Go to Copy PLC.
2. Select the PLC program to copy and press ENTER.
Press ENTER to go to the “VFDKeypad” screen.
If the WPLSoft editor is installed uses password, enter
the password to save the file to the keypad.
Press the UP / DOWN keys to select a symbol.
Press the LEFT / RIGHT keys to move the cursor to
select a file name.
String & Symbol Table:
！＂＃＄％＆＇（）＊＋，－．／０１２３４５６７８９：；＜＝＞？＠ＡＢ
ＣＤＥＦＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ［＼］＾＿｀ａｂｃｄ
ｆｇｈｉｊｋｌｍｎｏｐｑｒｓｔｕｖｗｘｙｚ｛｜｝～
To Next Page
