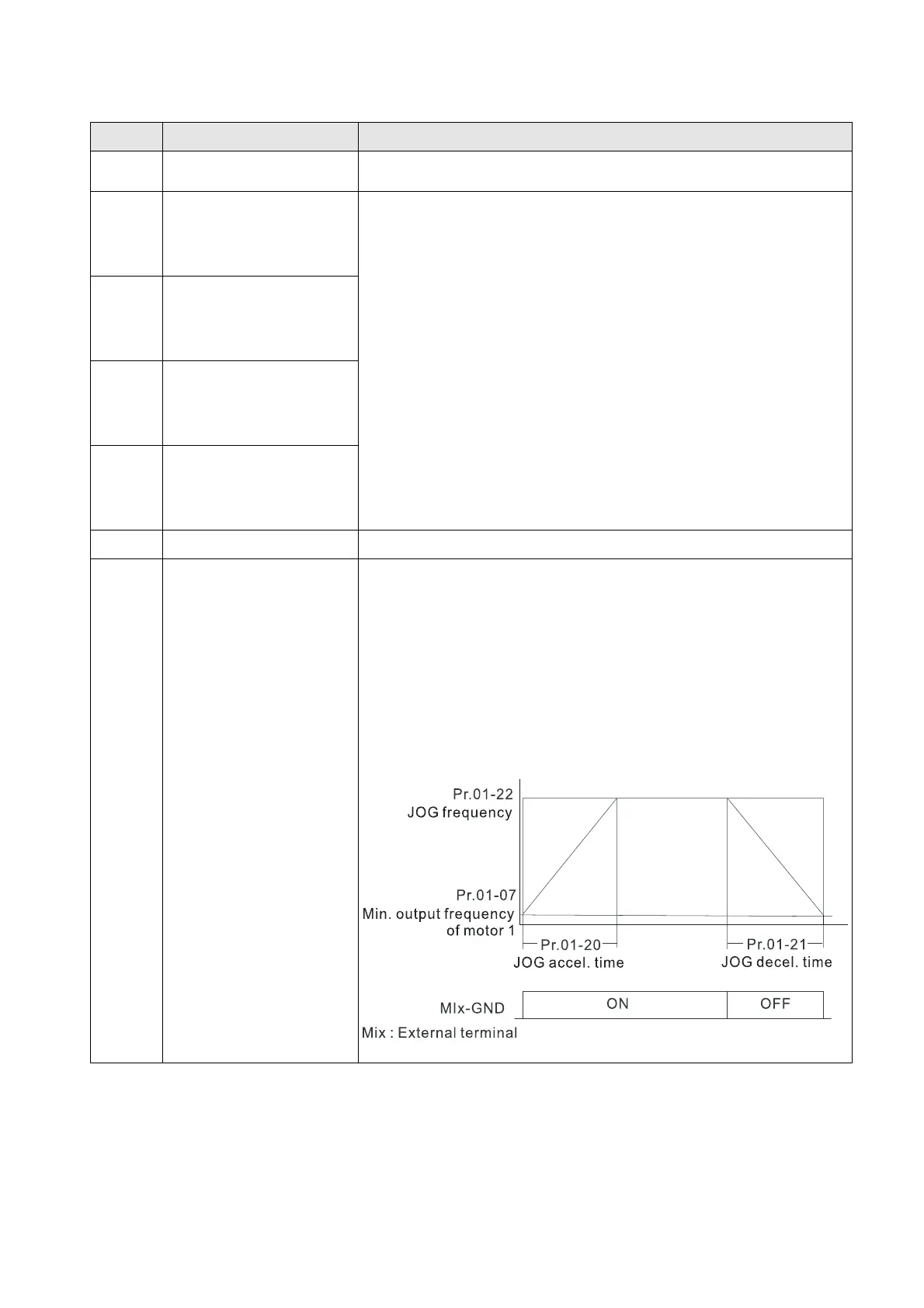

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-02-4
Summary of function settings
Take the normally opened contact (N.O.) for example, ON: contact is closed, OFF: contact is open
Settings Functions Descriptions
0 No Function
1
Multi-step speed
command 1 / multi-step
position command 1
You can set 15 steps of speed or 15 positions with the digital
status of these four terminals. You can use 16-steps of speed if
you include the master speed when setting as 15 steps of speed
(refer to Parameter Group 04
Multi-step Speed Parameters).
2
Multi-step speed
command 2 / multi-step
position command 2
3
Multi-step speed
command 3 / multi-step
position command 3
4
Multi-step speed
command 4 / multi-step
position command 4
5 Reset Use this terminal to reset the drive after clearing a drive fault.
6
JOG operation
[by external control or
KPC-CC01 (optional)]
This function is valid when the source of the operation command
is the external terminals.
The JOG operation executes when the drive stops completely.
While running, you can still change the operation direction, and
the STOP key on the keypad* and the STOP command from
communications are valid. Once the external terminal receives
the OFF command, the motor stops in the JOG deceleration
time. Refer to Pr.01-20–Pr.01-22 for details.
*: This function is valid when Pr.00-32 is set to 1.
