Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-02-26

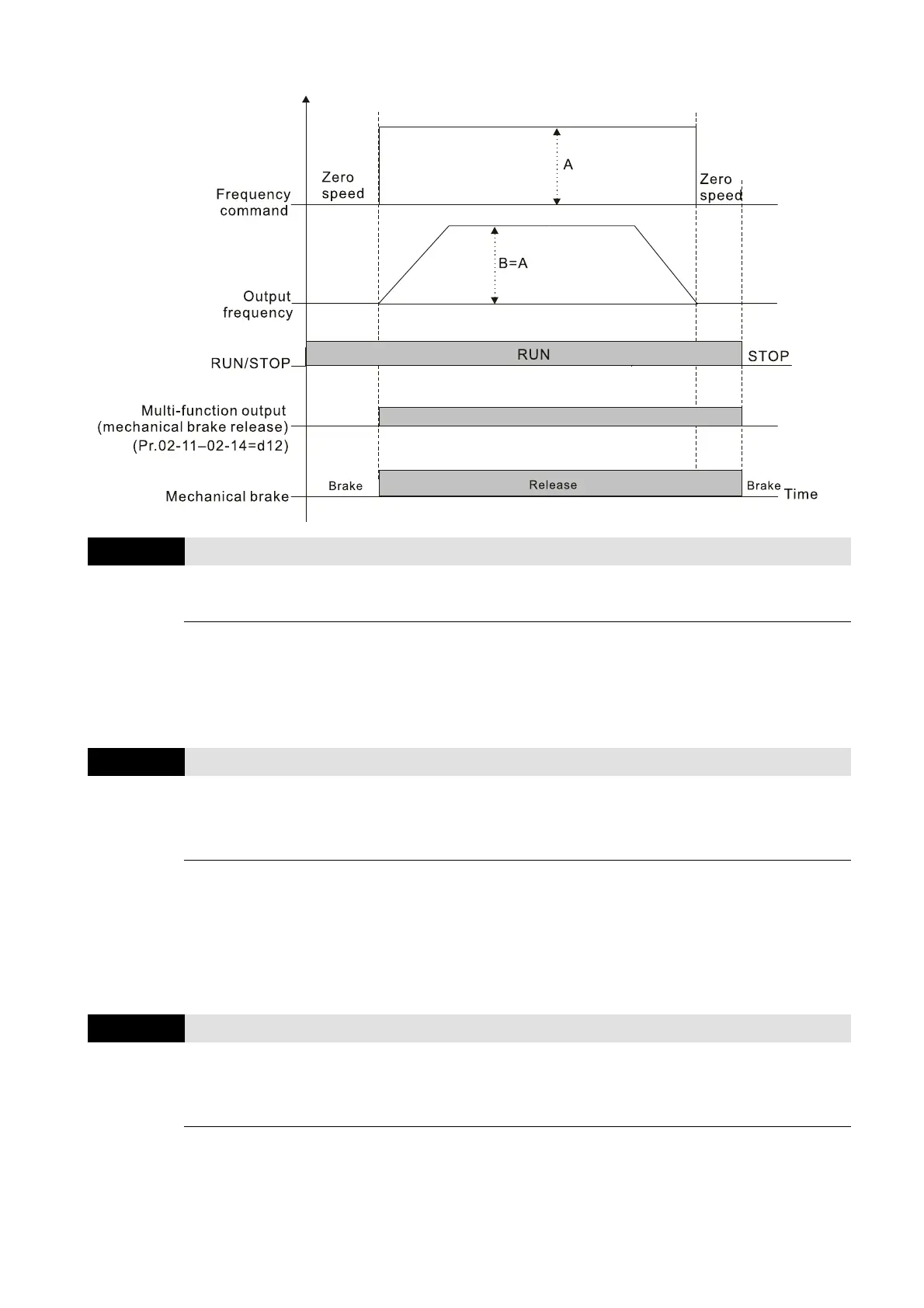

This parameter is invalid if it is used without DC brake. Refer to the following operation timing.
02-33
Output Current Level Setting for Multi-Function Output Terminal
Default: 0
Settings 0–100%
When the drive outputs current higher than or equal to Pr.02-33 ( Pr.02-33), the multi-function
output parameters active (Pr.02-13, Pr.02-14, Pr.02-16, and Pr.02-17 are set to 27).
When the drive outputs current lower than Pr.02-33 (< Pr.02-33), the multi-function output
parameters active (Pr.02-13, Pr.02-14, Pr.02-16, and Pr.02-17 are set to 28).
02-34
Output Frequency Setting for Multi-Function Output Terminal
Default: 3.00
Settings 0.00–599.00 Hz
(Motor speed when using PG Card)
When the drive outputs frequency higher than or equal to Pr.02-34 (actual output frequency H
Pr.02-34), the multi-function terminals activate (Pr.02-13, Pr.02-14, Pr.02-16 and Pr.02-17 are set
to 29).
When the drive outputs frequency lower than Pr.02-34 (actual output frequency H < Pr.02-34), the
multi-function terminals activate (Pr.02-13, Pr.02-14, Pr.02-16 and Pr.02-17 are set to 30).
02-35
External Operation Control Selection after Reset and Reboot
Default: 0
Settings 0: Disabled
1: Drive runs if the RUN command remains after reset or reboot
Setting 1: The drive automatically executes the RUN command under the following
circumstances, pay extra attention on this.
Status 1: After the drive is powered on and the external terminal for RUN stays ON, the drive
runs.
