26: Reserved

27: ASR1/ASR2 selection

28: Emergency stop (EF1) (motor coasts to stop)

29–30: Reserved

31: High torque bias (according to Pr.07-21)

32: Middle torque bias (according to Pr.07-22)

33: Low torque bias (according to Pr.07-23)

34–37: Reserved

38: Disable writing to EEPROM

39: Torque command direction ( 0 is positive direction)

40: Enable drive function

41: Magnetic contactor detection

42: Mechanical brake 1

43: EPS function (Emergency Power System)

44: Mechanical brake 2

45–51: Direct docking mode only

53: Terminal leveling signal for direct docking

54: Power failure signal

55: Manual emergency deceleration

56: Automatic emergency deceleration

57: Brake torque test action signal

59: AFE fault

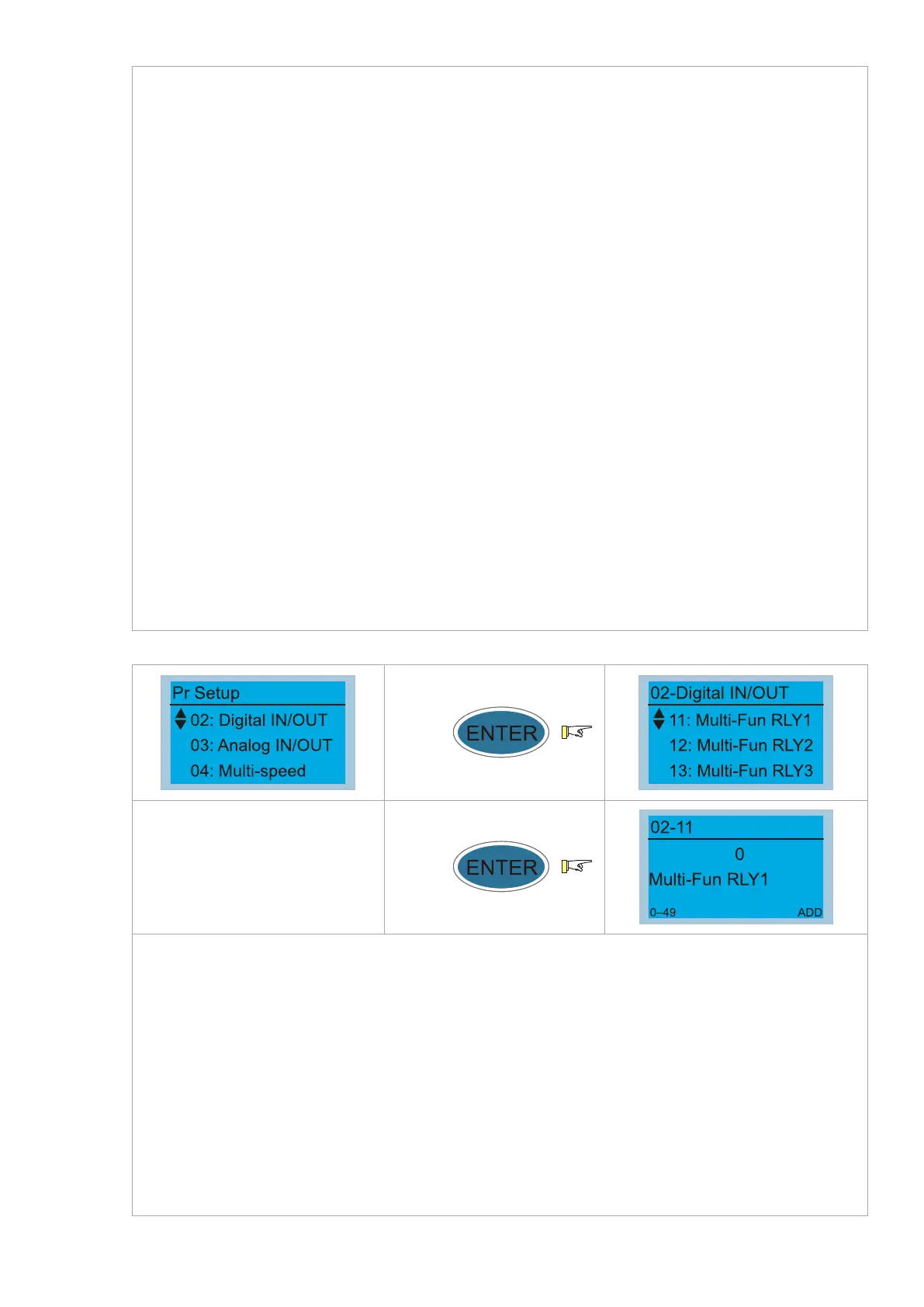

Pr.02-11–Pr.02-16 Multi-function Output Settings

Press

 Setting value:

0: No function

1: Indication during operation

2: Operation speed reached

3: Desired frequency 1 reached (Pr.02-25, Pr.02-26)

4: Desired frequency 2 reached (Pr.02-27, Pr.02-28)

5: Zero Speed (Frequency command)

6: Zero speed with stop (Frequency command)

7: Over-torque (OT1) (Pr.06-05–Pr.06-07)

8: Over-torque (OT2) (Pr.06-08–Pr.06-10)

9: Drive is ready
