Chapter 10 Auto-tuning Process | VFD-ED

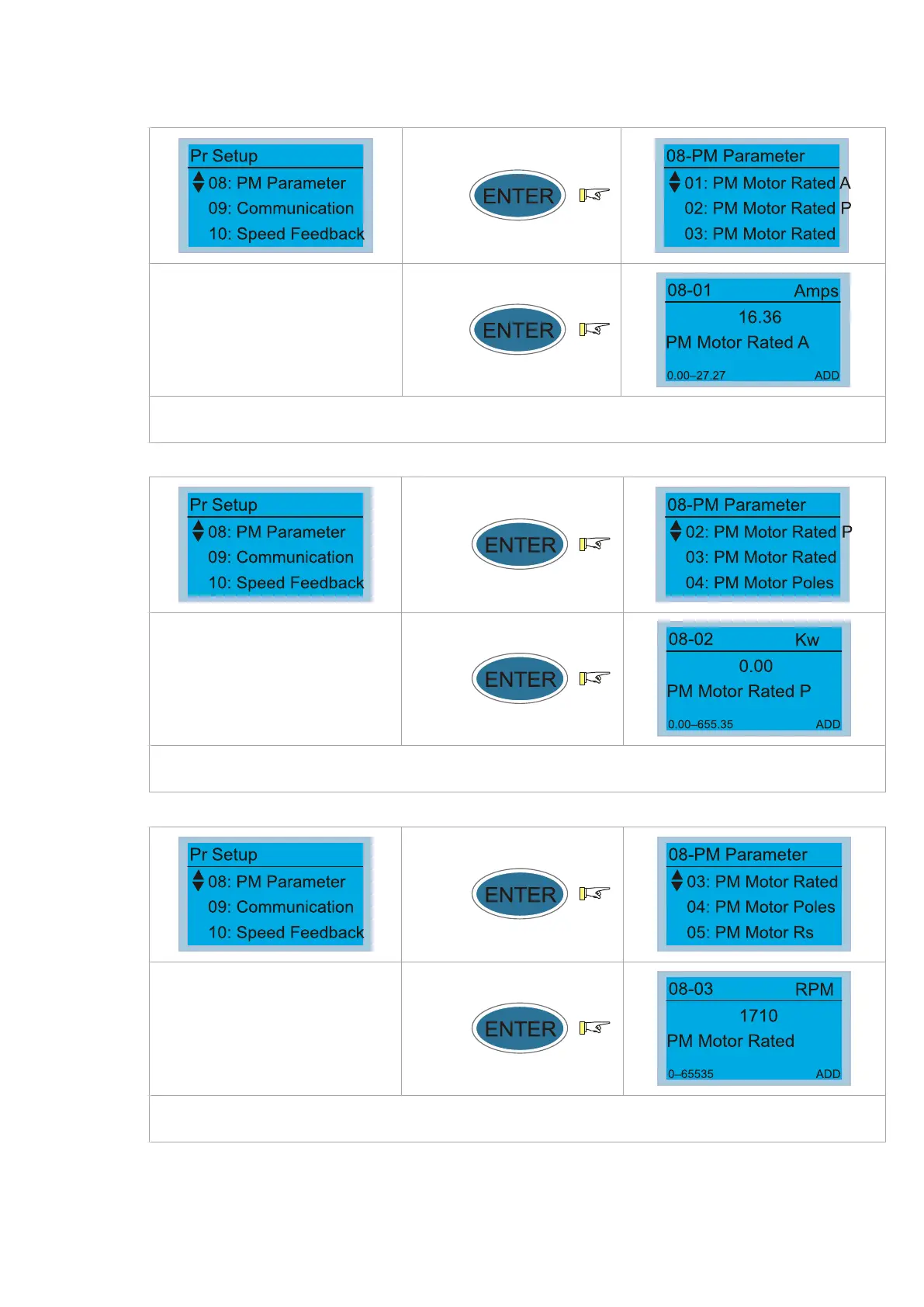

10-3-3-3 Settings for Permanent Magnet Synchronous Motor (PM)
Pr.08-01 Motor Rated Current
Press
Press
 Sets according to the motor rated current as indicated on the motor nameplate.
Pr.08-02 Motor Rated Power
Press
Press
 Sets the motor rated power. The default is the power of the drive.
Pr.08-03 Motor Rated Speed
Press
Press
 Sets the motor rated speed according to the motor nameplate.
