12 Descriptions of Parameter Settings | VFD-ED
Desired Frequency Reached 1
Control Mode
VF VFPG SVC FOCPG
FOCPM
Default: 60.00/50.00
Settings 0.00–299.00 Hz
Desired Frequency Reached Width 1
Control Mode
VF VFPG SVC FOCPG
FOCPM
Default: 2.00
Settings 0.00–299.00 Hz
Desired Frequency Reached 2
Control Mode
VF VFPG SVC FOCPG
FOCPM
Default: 60.00/50.00
Settings 0.00–299.00 Hz
Desired Frequency Reached Width 2
Control Mode
VF VFPG SVC FOCPG
FOCPM
Default: 2.00
Settings 0.00–299.00 Hz
Once the output frequency reaches the desired frequency and the corresponding multi-function output
terminal is set to 3 or 4 (Pr.02-11–Pr.02-22), this multi-function output terminal is ON.
Brake Release Delay Time when Elevator Starts
Control Mode
VF VFPG SVC FOCPG FOCPM Default: 0.250
Settings 0.000–65.000 sec.
Brake Engage Delay Time when Elevator Stops
Control Mode
VF VFPG SVC FOCPG FOCPM Default: 0.250
Settings 0.000–65.000 sec.

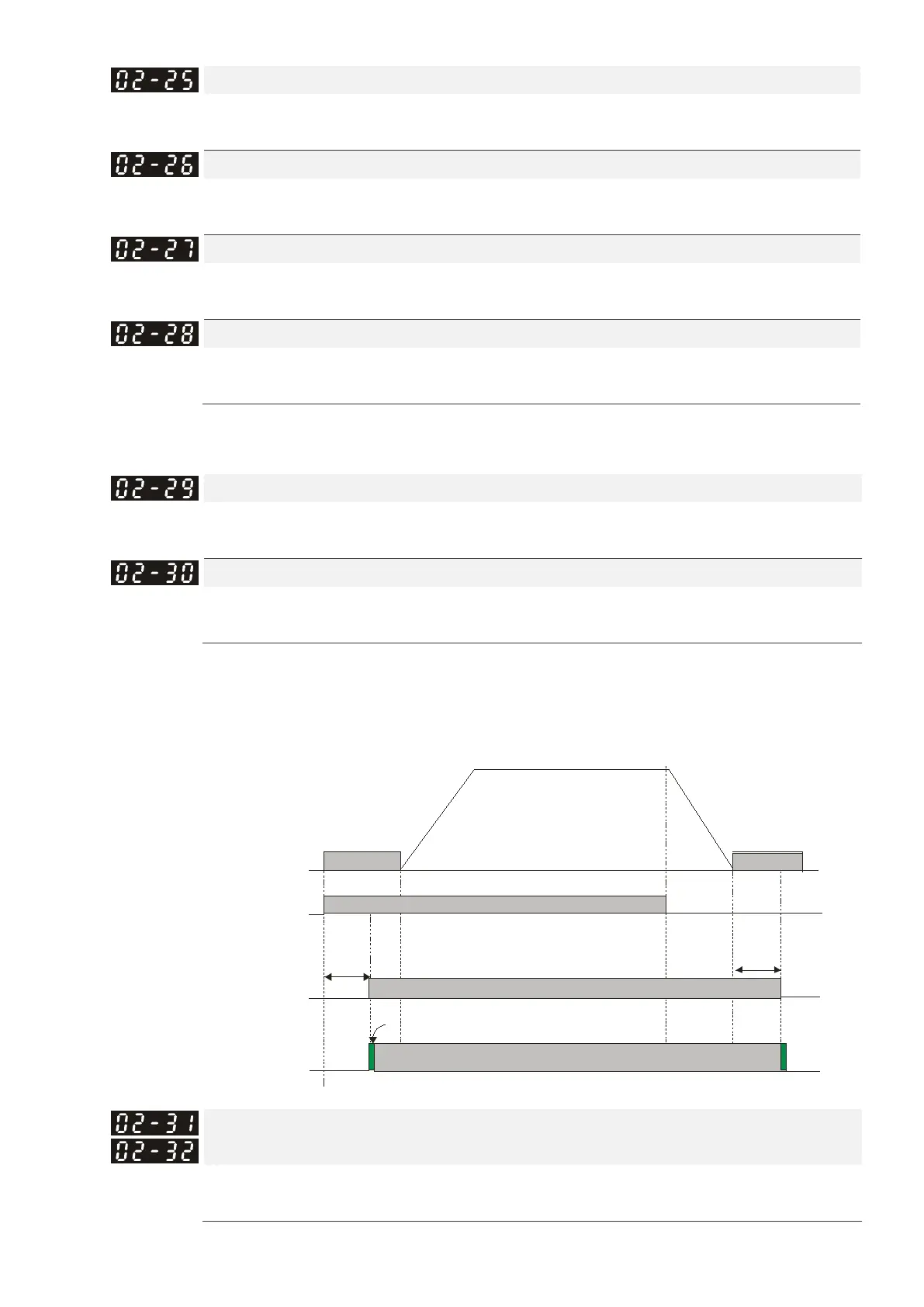

When the AC motor drive runs and after the delay time in Pr.02-29, the corresponding multi-function
output terminal (12: mechanical brake release) is ON.
When the AC motor drive stops and after the delay time in Pr.02-30, the corresponding multi-function
output terminal (12: mechanical brake release) is OFF.
Use this function with the DC brake function.
Motor speed/
Output frequency
0 7- 03
DC brake
time during
start-up
0 7- 04
DC brake
time during
stopping
Multi-function output
(m ech a ni ca l br ak e r el e as e)
Pr.0 2- 11 to 02 -2 2= 1 2
Mechanical brake
bounce time of mechanical brake
RUN/STOP
02-29 Brake release delay time
when elevator starts
RUN STOP
02-30 Brake engage
delay time when
elevator stops
DC brake
DC brake
Mechanical brake release
brake
engage
brake
engage
Magnetic Contactor Contracting Delay Time between Drive and Motor
Magnetic Contactor Release Delay Time between Drive and Motor
Control Mode
VF VFPG SVC FOCPG FOCPM Default: 0.200
Settings 0.010–65.000 sec.
