12 Descriptions of Parameter Settings | VFD-ED
12-03-4
 This function is only valid for AUI1.

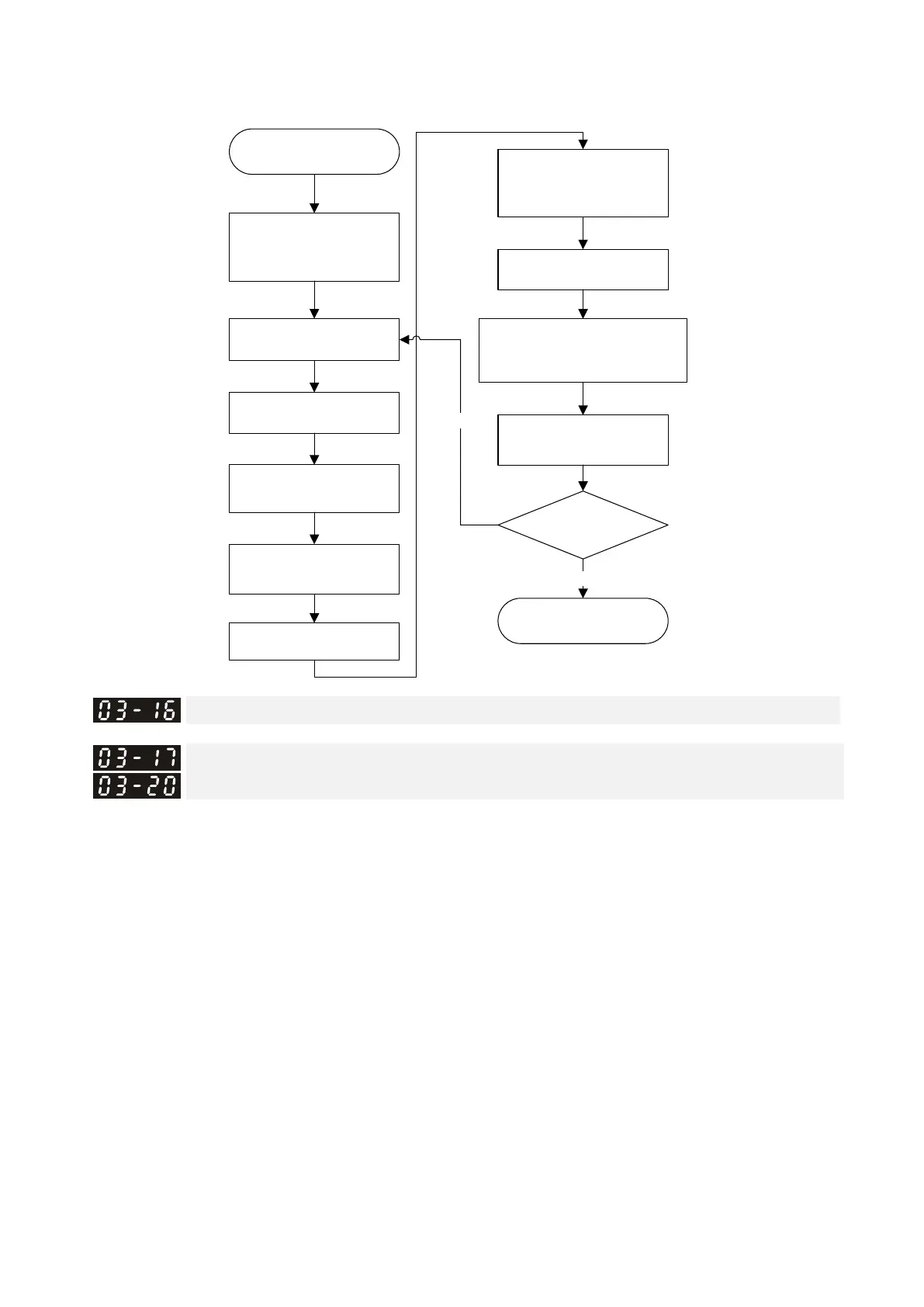

 Auto-tuning process:
Reserved

Analog Output Selection 1

Analog Output Selection 2
Control Mode
VF VFPG SVC FOCPG FOCPM Default: 0
Settings 0: Output frequency (Hz)
1: Frequency command (Hz)
2: Motor speed (RPM)
3: Output current (rms)
4: Output voltage
5: DC bus voltage
6: Power factor angle
7: Power factor
8: Output torque
9: AUI1
10: Reserved
11: AUI2
12: q-axis current
13: q-axis feedback value
Start
Set
Pr.03-00 = 3
Pr.03-06 = 4
Pr.03-23 = 0
Run (0Hz) the car for more
than 5 seconds without load
Run (0Hz) the car for more
than 5 seconds with larger
than 50% of the load.
Set
Pr.03-15 = 2
Check
Pr.03
-03 Analog Input Bias 1 (AUI1)
Pr.03-09 Analog Input Gain 1 (AUI1)
End
Check ride comfort
YES
NO
Set
Pr.07-13 = 2
Pr.07-19 = 1
Set
Pr.03-15 = 1
Set
Pr.07-19 = 0
When tuning is finished,
Pr.03-15 will become 0.
When tuning is finished,
Pr.03-15 will become 0.
