Delta VFD055ED43S User Manual

Chapter 4 Main Circuit Terminals | VFD-ED
4-6

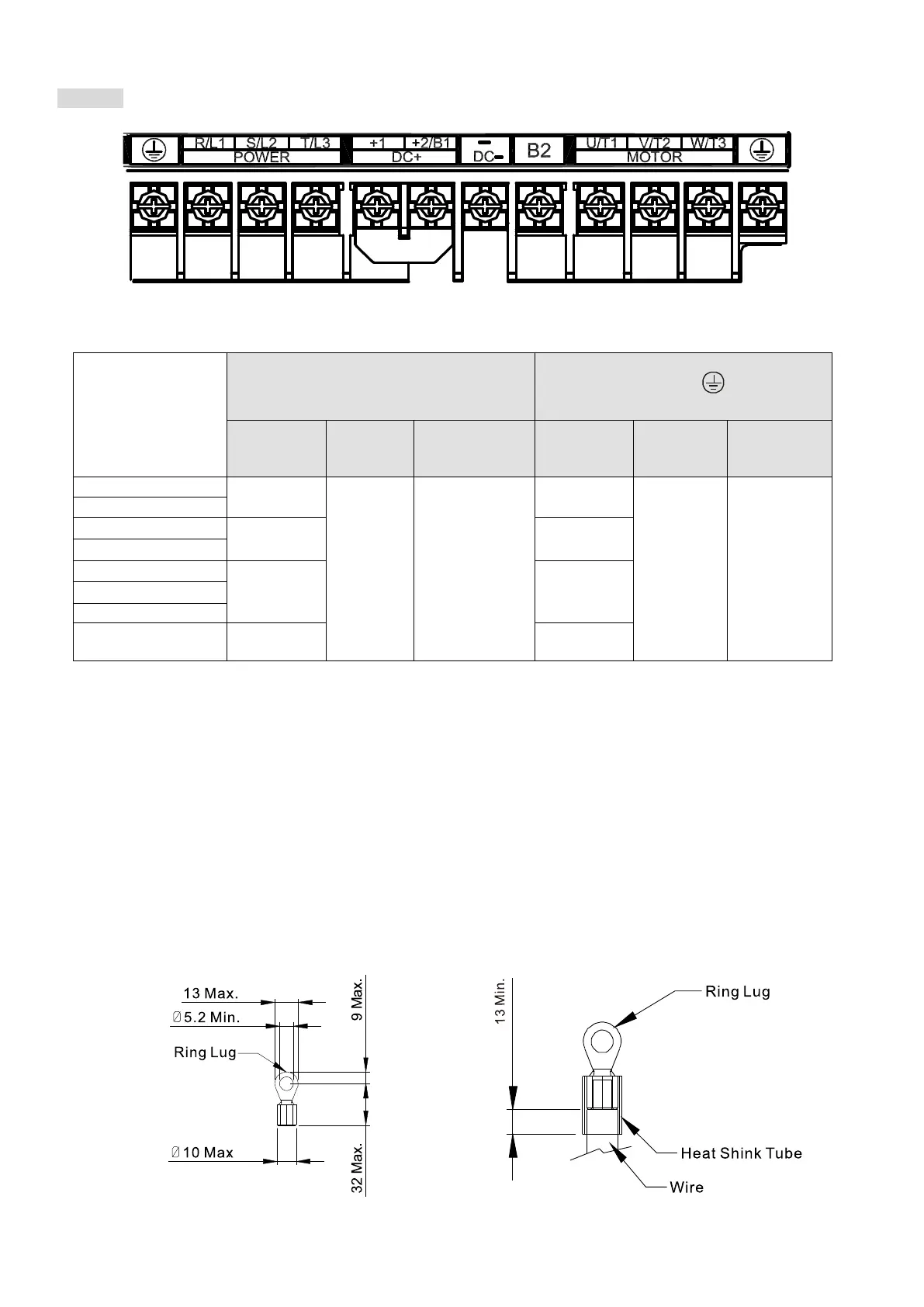

Frame C
Figure 4-8
Model
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
+1, +2/B1, -, B2
Terminal
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening Torque
(±10%)
Min. Wire
Gauge
Max. Wire
Gauge
Screw Size &
Tightening
Torque (±10%)
VFD055ED23S
3.3 mm²
(10 AWG)
13.3 mm²
(6 AWG)
M5
30 kg-cm
(26 lb-in.)
(2.9 N-m)
3.3 mm²
(10 AWG)
13.3 mm²
(6 AWG)
M5
30 kg-cm
(26 lb-in.)
(2.9 N-m)
VFD110ED43S
VFD055ED43S
3.3 mm²
(12 AWG)
3.3 mm²
(12 AWG)
VFD075ED43S
VFD075ED23S
8.4 mm²
(8 AWG)
8.4 mm²
(8 AWG)
VFD150ED43S
VFD185ED43S
VFD110ED23S
13.3 mm²
(6 AWG)
13.3 mm²
(6 AWG)
Table 4-3
NOTE:
 For UL installation compliance, select copper wires with voltage rating of 600V and temperature
resistance of 75°C.
 Choose terminal wire size as Figure 4-9 shows.
 Use insulated heat shrink tubing that is resistant to at least 600V to comply with UL and CSA
regulations (600 V, YDPU2), as Figure 4-10 shows.
 If you install at Ta 50°C environment, use copper wires with voltage rating of 600V and
temperature resistance of 75°C or 90°C.
 If you install at Ta 50°C above environment, use copper wires with voltage rating of 600V and
temperature resistance of 90°C or above.
 To be UL installation compliant, you must use copper wires when installing. The wire gauge is
based on temperature resistance of 75°C, in accordance with UL requirements and
recommendations. Do not reduce the wire gauge when using high-temperature resistant wire.
Figure 4-9 Figure 4-10

Delta VFD055ED43S Specifications

General

Brand	Delta
Model	VFD055ED43S
Category	DC Drives
Language	English
