Chapter 1. Description of Hybrid Servo Drives I VFD-VJ
1-2
1-1 Receiving and Inspection
This VFD-VJ hybrid servo drive has gone through tough tests at the factory before shipping under
quality control and strengthened the packaging method to secure it. Upon receiving the hybrid servo
drive, please check the following items immediately:
Inspect the drive to assure it was not damaged during shipping.
Make sure the model name on the nameplate corresponds to that of your registered information
in the shipping carton.
If the registered information does not match your purchase order, or if there is any problem in the product, please
contact the dealer or distributor.

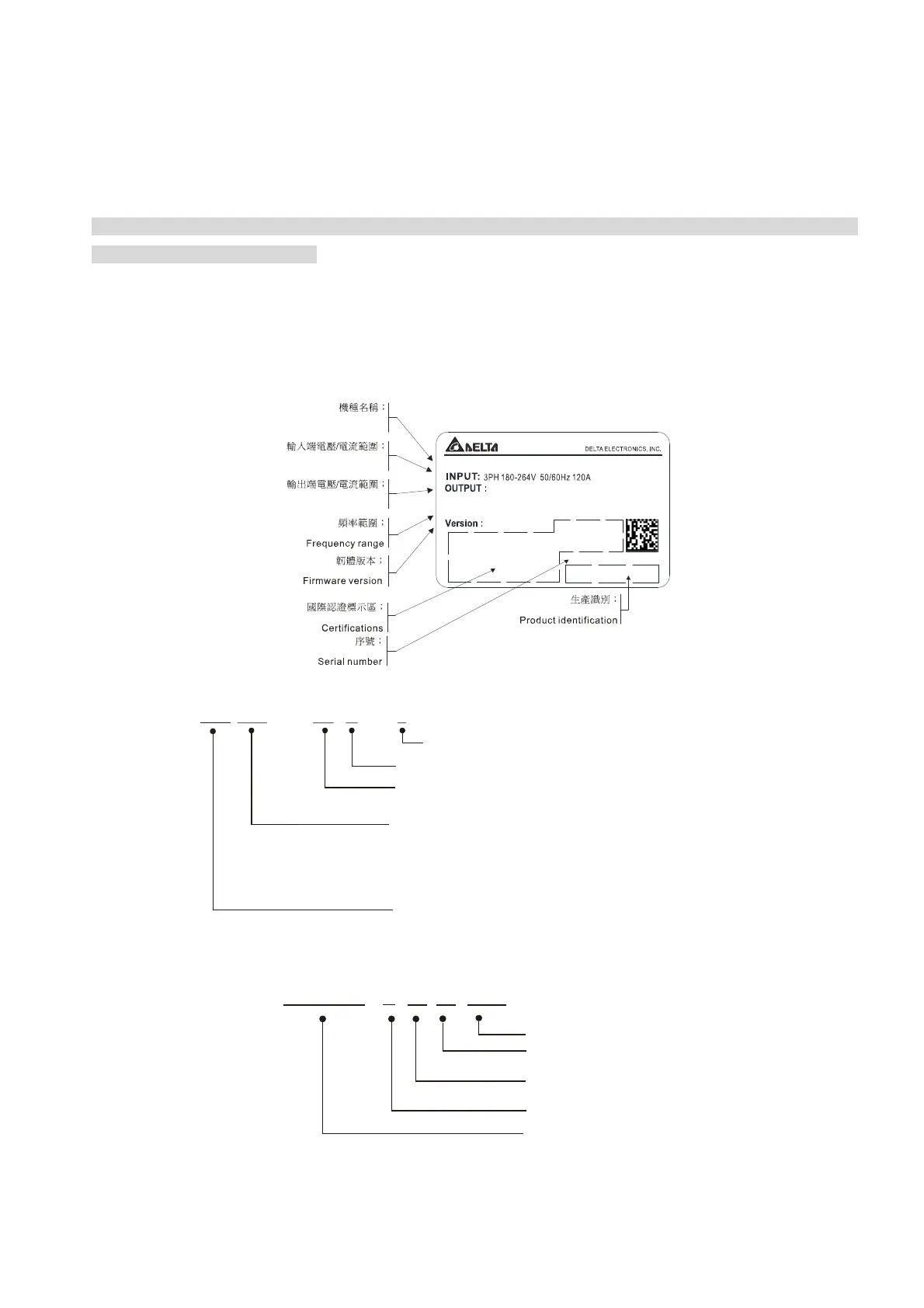

Air Cooled:
Nameplate:
Take the 30kW, 40HP, 230V
AC
3-Phase model as an example.
300VJ23CT17470002
MODEL: VFD300VL23C-J
3PH 0-240V 120A
30kW/ 40HP
00.51
國際認證標示區；
序號；
機 名稱；種
Model name
輸入端電壓/電流範圍；
Input voltage/current
輸出端電壓/電流範圍；
Output voltage/current
頻率範圍；
韌體版本；
生产识别；
FREQUENCY RANGE:
0~ 599Hz
Model Name:
Ver sion: C
23: 230V 3-PHASE
43: 460V 3-PHASE
High performance hybrid servo drive (air cooled)
300: 30kW(40HP), 370: 37kW(50HP)
VFD 300 VL 23 C -
110: 11KW(15HP), 150: 15KW(20HP),
185: 18.5KW(25HP), 220: 22KW(30HP),
450: 45kW(60HP), 550: 55kW(70HP),
750: 75KW(100HP)
Mains input voltage:
Applicable motor capacity:
Series name: Variable Frequency Drive
Serial Number:
Production number
300VJ23C T 18 47 0002
Production week
Production year
Production factory
Model
18 = year 2018
T = Taoyu an , W = Wu jian g
230V, 3-phase, 30kW, 40HP
20 = year 2020
To Next Page
