Chapter 2 DimensionsME300
2-4

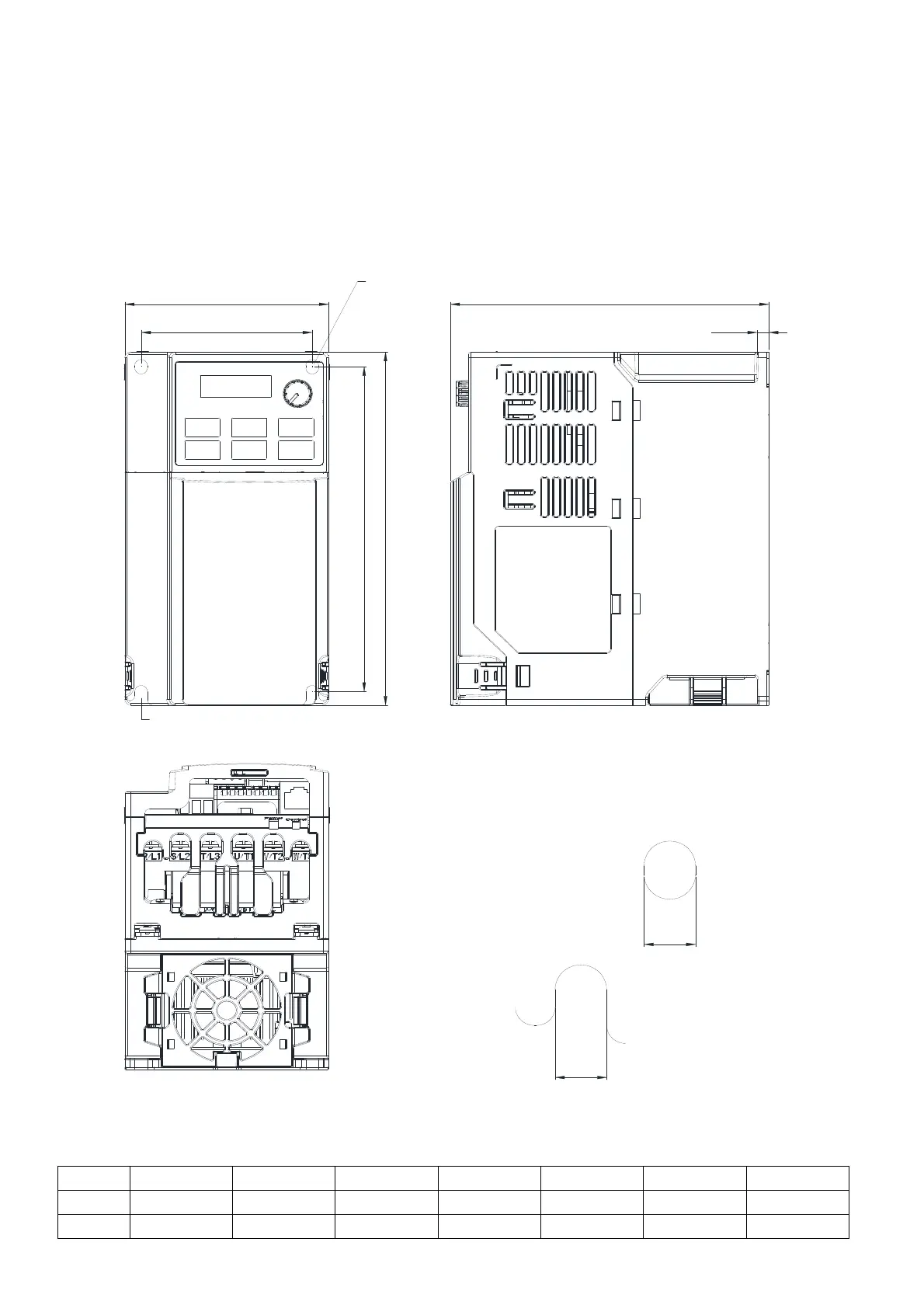

2-3 Frame C
C1: VFD4A8ME11ANNAA; VFD4A8ME11ANSAA; VFD7A5ME21ANNAA; VFD7A5ME21ANSAA;
VFD11AME21ANNAA; VFD11AME21ANSAA; VFD11AME23ANNAA; VFD11AME23ANSAA;
VFD17AME23ANNAA; VFD17AME23ANSAA; VFD5A5ME43ANNAA; VFD5A5ME43ANSAA;
VFD7A3ME43ANNAA; VFD7A3ME43ANSAA; VFD9A0ME43ANNAA; VFD9A0ME43ANSAA
C2: VFD7A5ME21AFNAA; VFD7A5ME21AFSAA; VFD11AME21AFNAA; VFD11AME21AFSAA;
VFD5A5ME43AFNAA; VFD5A5ME43AFSAA; VFD7A3ME43AFNAA; VFD7A3ME43AFSAA;
VFD9A0ME43AFNAA; VFD9A0ME43AFSAA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
C1 87.0 [3.43] 157.0 [6.18] 136.0 [5.35] 73.0 [2.87] 144.5 [5.69] 5.0 [0.20] 5.5 [0.22]
C2 87.0 [3.43] 157.0 [6.18] 163.0 [6.42] 73.0 [2.87] 144.5 [5.69] 5.0 [0.20] 5.5 [0.22]
See Detail B
D1
H1
See Detail A
H
Detail B (Mounting Hole)
W1
Detail A (Mounting Hole)
DW
S1
S1
