Chapter 2 DimensionsME300
2-5

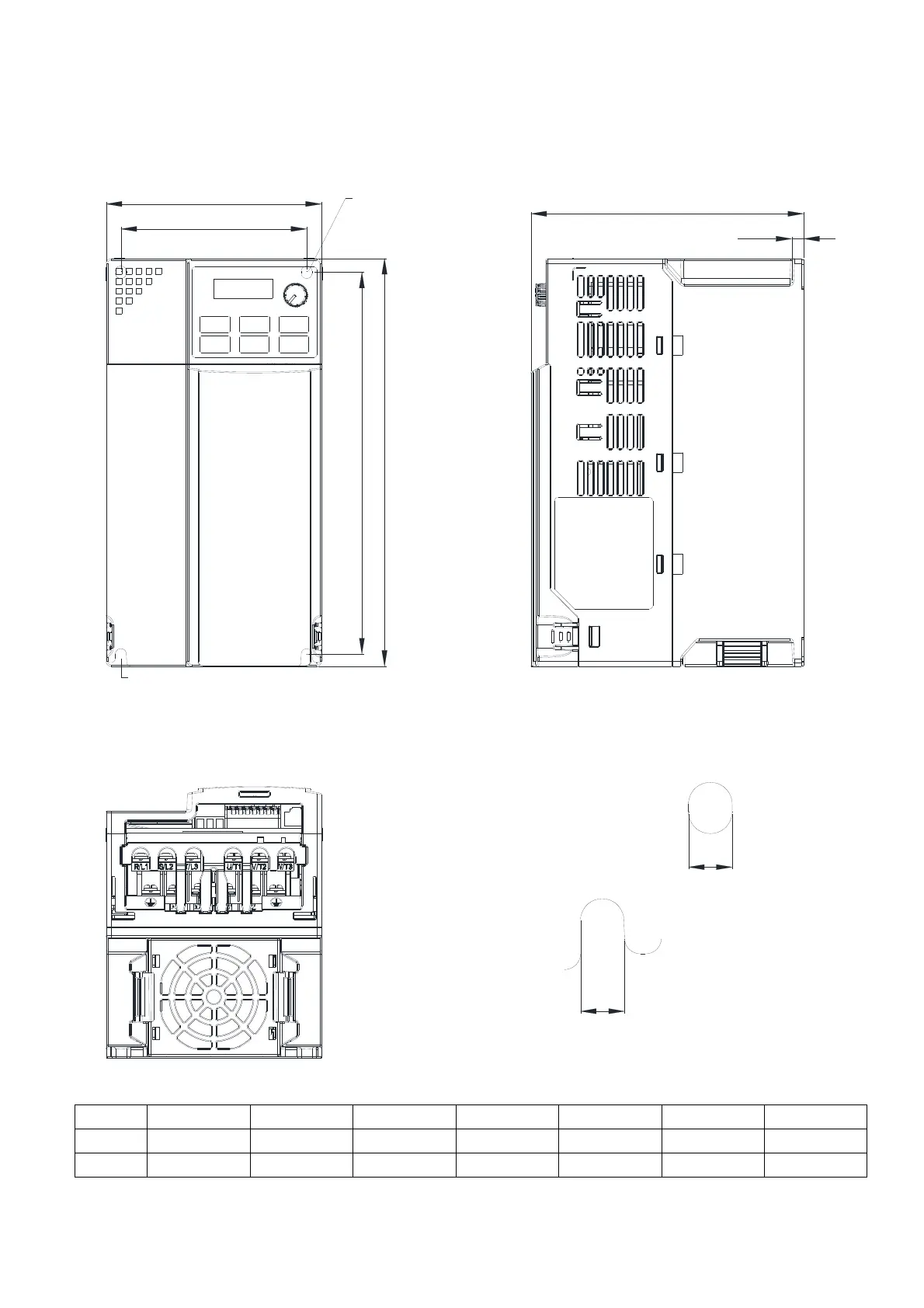

2-4 Frame D
D1: VFD25AME23ANNAA; VFD25AME23ANSAA; VFD13AME43ANNAA; VFD13AME43ANSAA;
VFD17AME43ANNAA; VFD17AME43ANSAA
D2: VFD13AME43AFNAA; VFD13AME43AFSAA; VFD17AME43AFNAA; VFD17AME43AFSAA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
D1 109.0 [4.29] 207.0 [8.15] 138.0 [5.43] 94.0 [3.70] 193.8 [7.63] 6.0 [0.24] 5.5 [0.22]
D2 109.0 [4.29] 207.0 [8.15] 171.0 [6.73] 94.0 [3.70] 193.8 [7.63] 6.0 [0.24] 5.5 [0.22]
See Detail B
See Detail A
Detail B (Mounting Hole)
Detail A (Mounting Hole)
S1
S1
D
H1
W1
D1
H
W
