Chapter 12 Description of Parameter SettingsME300
12.1-06-18

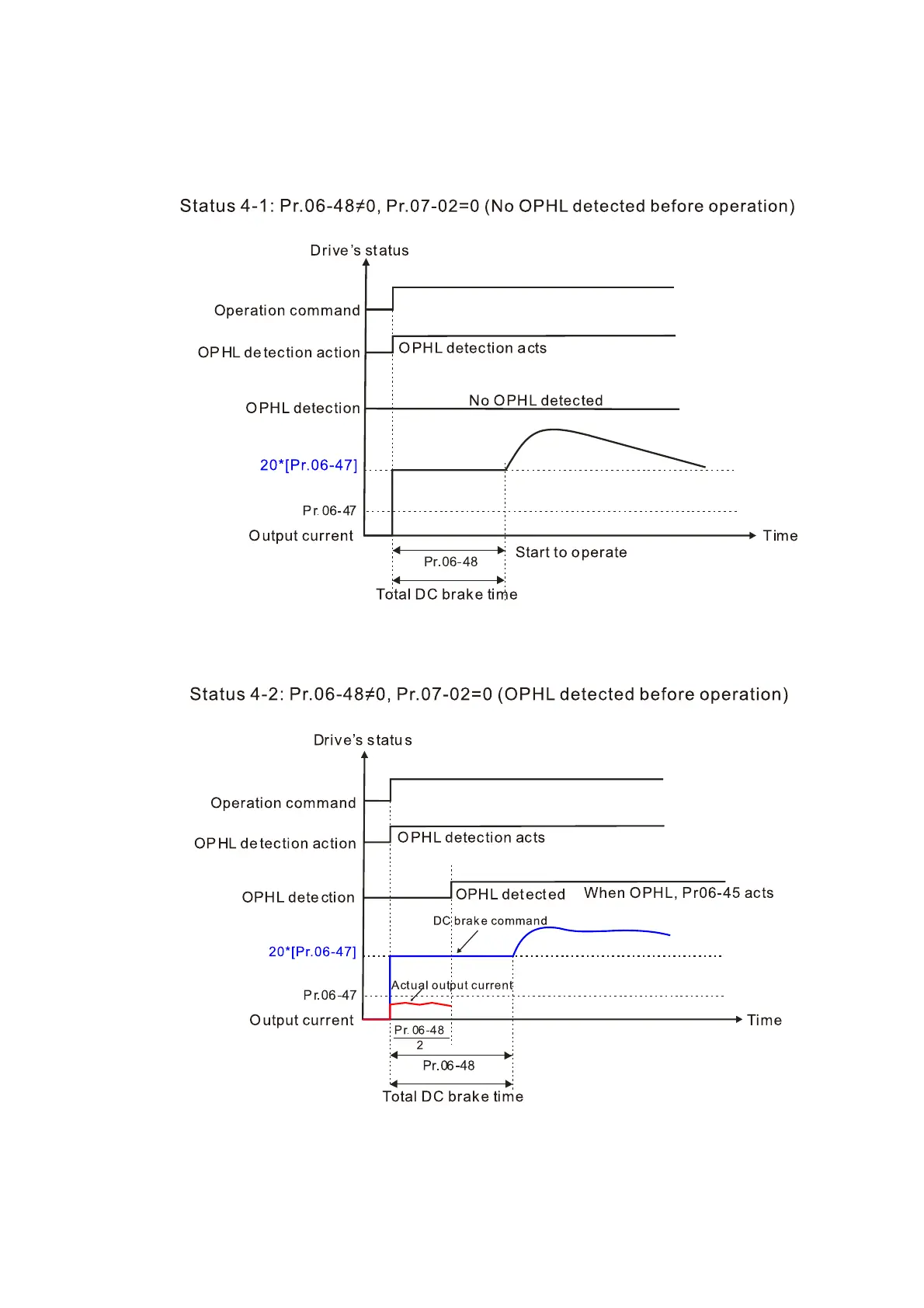

Status 4: The drive is in STOP; Pr.06-48 ≠ 0; Pr.07-02 = 0
When the drive starts, it executes Pr.06-48 as the DC brake. The DC brake current level is 20
times the Pr.06-47 setting value. In this period, if an OPHL happens within the time for Pr.06-48,
the drive executes the Pr.06-45 setting after the drive starts counting for half the time of Pr.06-48.
