Chapter 12 Description of Parameter SettingsME300
12.1-06-22
When Pr.06-58 = 0.00 Hz, PT100 function is disabled.
Example:

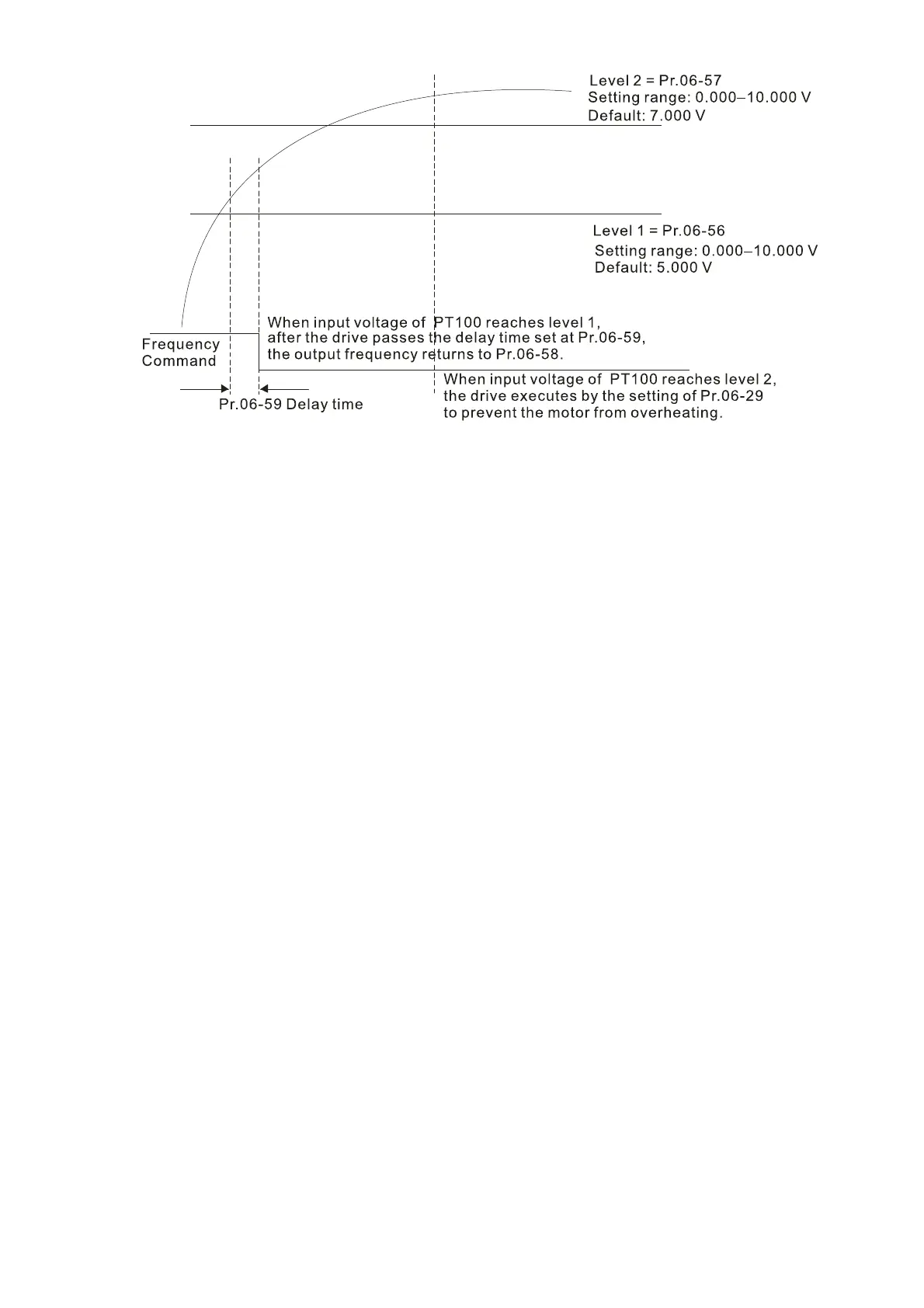

When using PT100, if the motor temperature is higher than 135°C (275°F), the drive starts to
count the delay time for auto-deceleration (Pr.06-59). The drive decreases the motor frequency
to the setting for Pr.06-58 when it reaches the delay time count value. The drive operates at the
frequency set for Pr.06-58 until the motor temperature is lower than 135°C (275°F). If the motor
temperature is higher than 150°C (302°F), the drive automatically decelerates to STOP and
displays the warning “OH3”.
Set up process:
1. Switch AFM to 0–20 mA on the control board.
2. Wiring:
Connect external terminal AFM to “+”; Connect external terminal ACM to “-“
Connect AFM and AVI to “short-circuit”
3. Pr.03-00 = 11, Pr.03-20 = 23, Pr.03-32 = 45% (9 mA)
4. Refer to the RTD temperature and resistance comparison table
Temperature = 135°C, resistance = 151.71 Ω, input current: 9 mA, voltage: about 1.37 V
DC
Temperature = 150°C, resistance = 157.33 Ω, input current: 9 mA, voltage: about 1.42 V
DC
5. When the RTD temperature > 135°C, the drive decelerates to the specified operation
frequency automatically. Then, Pr.06-56 = 1.37 and Pr.06-58 = 10 Hz. When Pr.06-58 = 0, it
disables the specified operation frequency.
6. When RTD temperature > 150°C, the drive outputs a fault, decelerates to STOP, and
displays the warning “OH3”. Then, Pr.06-57 = 1.42 and Pr.06-29 = 1 (warn and ramp to
stop).
