Chapter 2 Wiring | VFD-VJ
2-16
Frame
Size
AWG VENDOR P/N
A
(max.)
B
(max.)
C
(min.)
D
(max.)
d2
(min.)
E
(min.)
F
(min.)
W
(max.)
t
(max.)
C
8 K.S.T. RNBS8-5
25.0 6.0 7.0 9.0 5.2 13.0 7.0 12.5 3.0
6 K.S.T. RNBS14-5
Unit: mm

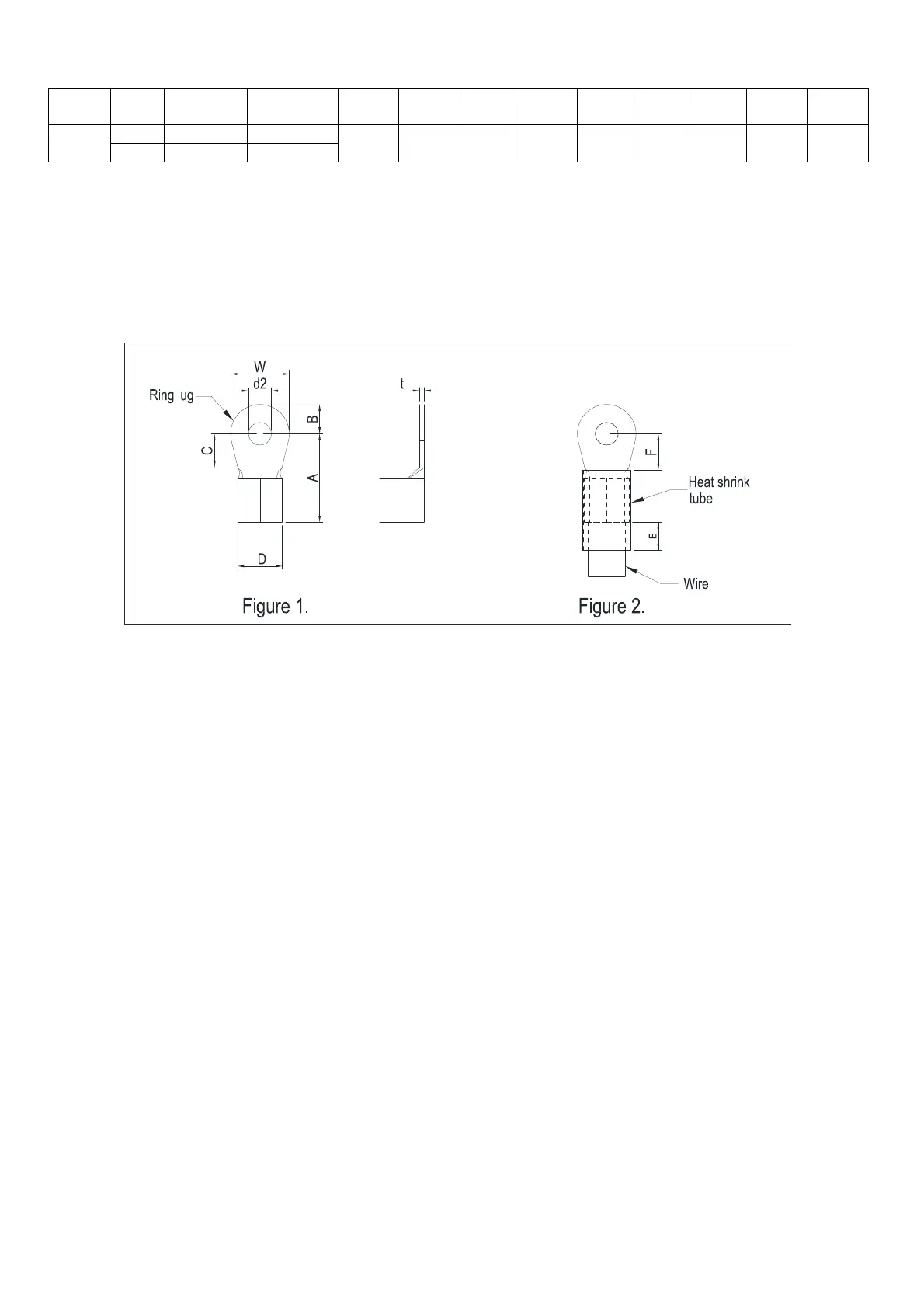

The following additional terminals are required when wiring. The additional terminal dimension should comply
with Figure 1 below.
After crimping the wire to the ring lug (must be UL approved), UL and CSA approved R/C (YDPU2), and
install heat shrink tubing rated at a minimum of 600 V
AC
insulation over the live part. Refer to Figure 2 below.
