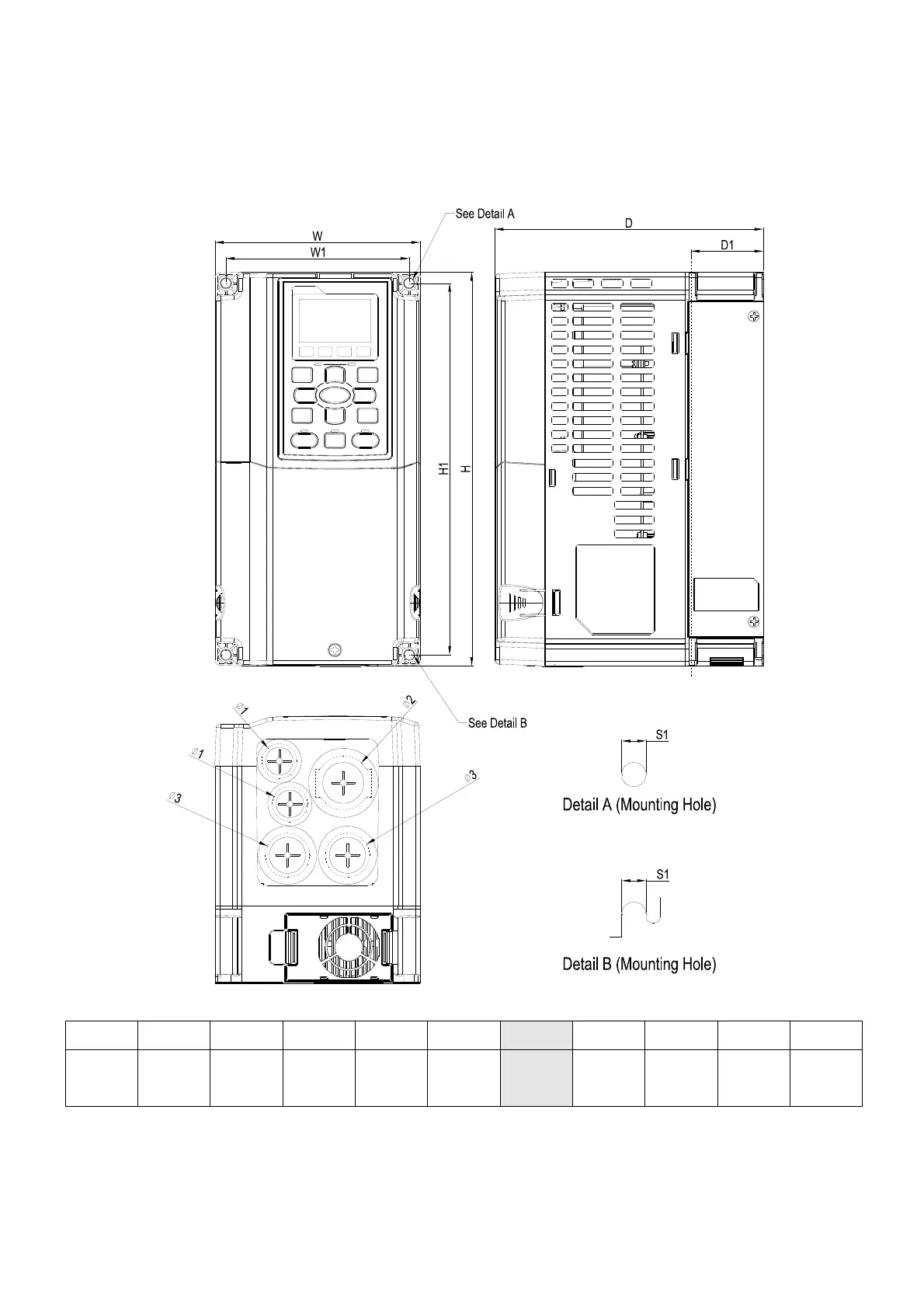

1-6 Dimensions
Frame A
VFD007C23A; VFD007C43A/E; VFD015C23A; VFD015C43A/E; VFD022C23A; VFD022C43A/E;
VFD037C23A; VFD037C43A/E; VFD040C43A/E; VFD055C43A/E
Unit: mm [inch]
Frame
W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
A1
130.0
[5.12]
250.0
[9.84]
170.0
[6.69]
116.0
[4.57]
236.0
[9.29]
45.8
[1.80]
6.2
[0.24]
22.2
[0.87]
34.0
[1.34]
28.0
[1.10]
D1*: Flange mounting
