Chapter 7 Optional AccessoriesC2000 Plus
7-120
Frame D0
Model “MKC-DFKB” Capacitor Fan
Applicable models
VFD370C43S-00; VFD450C43S-00; VFD370C43S-21; VFD450C43S-21

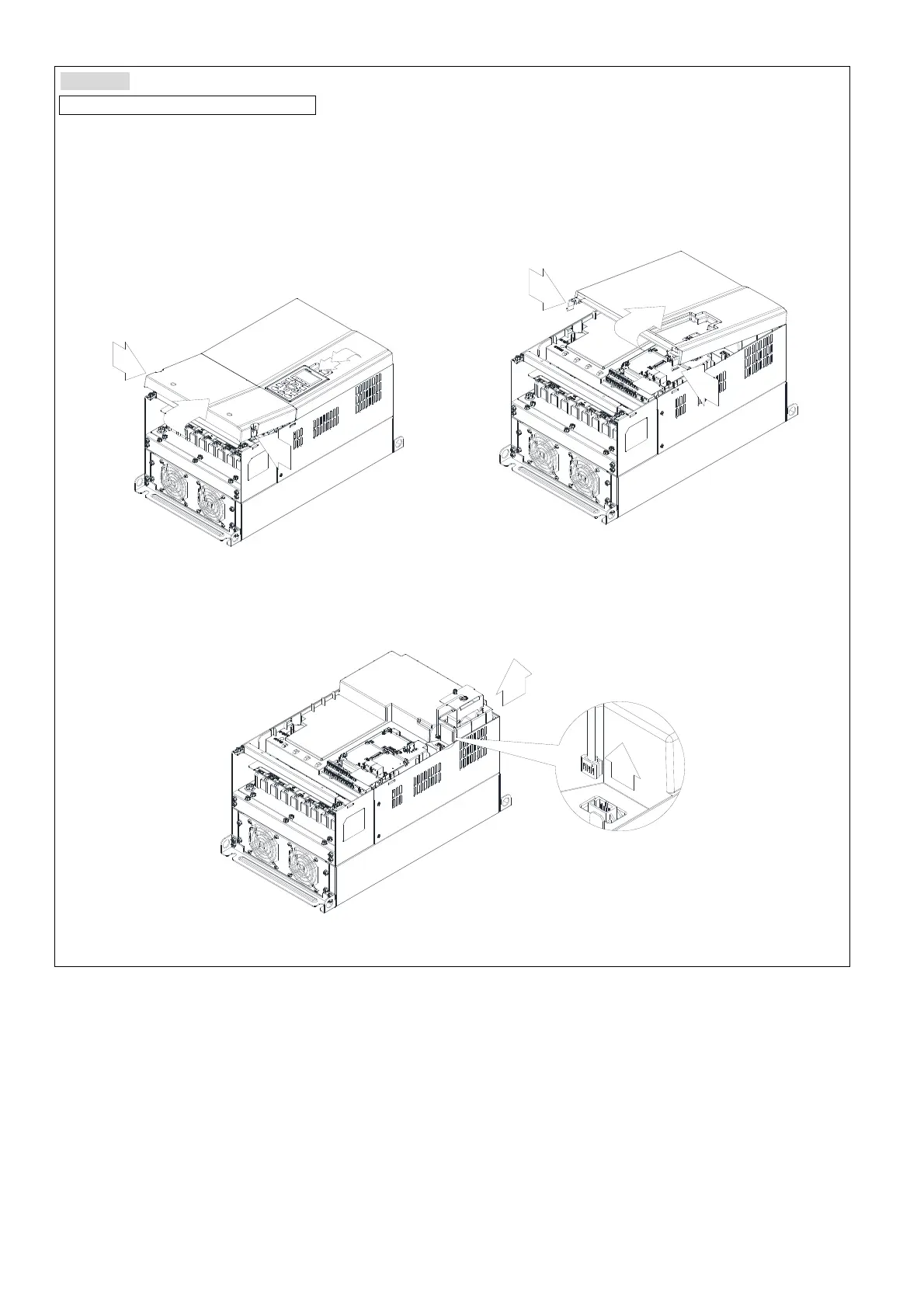

1. Loosen screw 1 and screw 2, press the tab on the
right and left to remove the cover, follow the
direction the arrows indicate. Press on top of
digital keypad to properly remove it. Screw 1, 2
Torque: 12–15 kg-cm / (10.4–13 lb-in.) / (1.2–1.5
Nm)
1
2
Fi
g
ure 7-157
2. Loosen screw 3, press the tab on the right and the
left to remove the cover. Screw 3 Torque: 6–8
kg-cm / (5.2–6.9 lb-in.) / (0.6–0.8 Nm)
3
Figure 7-158
3. Loosen screw 4 (see the figure below) and disconnect fan power and pull out the fan. (As shown in the
enlarged picture). Screw 4 Torque: 10–12 kg-cm / (8.7–10.4 lb-in.) / (1.0–1.2 Nm)
4
Figure 7-159
