Chapter 7 Optional AccessoriesC2000 Plus
7-121
Frame D0

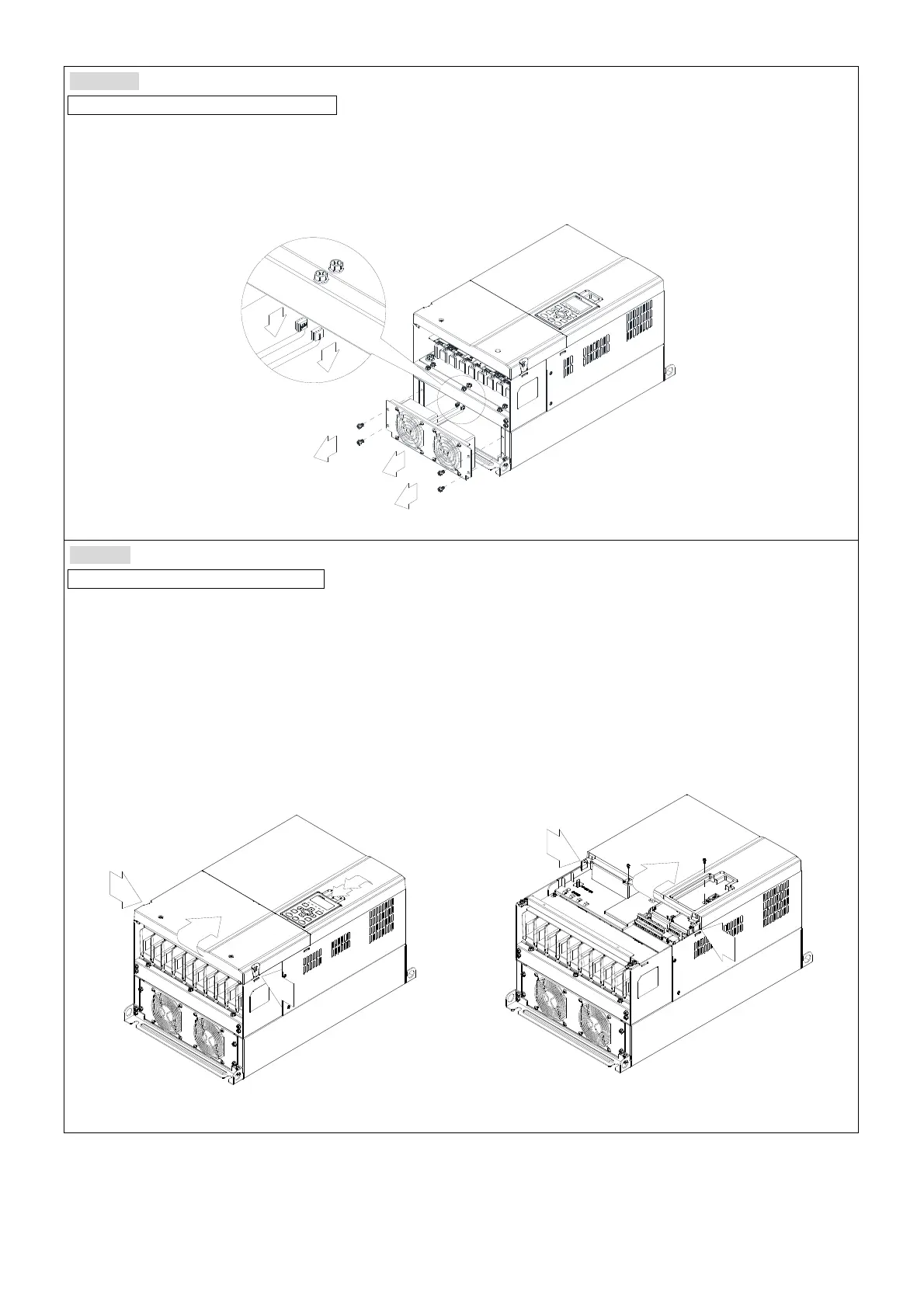

Model “MKC-D0FKM” Heat Sink Fan
Applicable models
VFD370C43S-00; VFD450C43S-00; VFD370C43S-21; VFD450C43S-21
1. Loosen the screw and remove the fan kit. Screw torque: 24–26 kg-cm / (20.8–22.6 lb-in. / (2.4–2.5 Nm)
2. (As shown in the figure below)
Before pulling out the fan, make sure the fan power is disconnected.
1
2
3
4
Fi
g
ure 7-160
Frame D
Model “MKC-DFKB” Capacitor Fan
Applicable models
VFD300C23A-00; VFD370C23A-00; VFD300C23A-21; VFD370C23A-21; VFD550C43A-00; VFD750C43A-00;
VFD550C43A-21; VFD750C43A-21; VFD450C63B-00; VFD550C63B-00; VFD450C63B-21; VFD550C63B-21
1. Loosen screw 1 and screw 2, press the tab on the
right and the left to remove the cover, follow the
direction the arrows indicate in the following
figure. Press on the top of digital keypad to
properly remove it.
Screw 1, 2 Torque: 12–15 kg-cm / (10.4–13 lb-in.)
/ (1.2–1.5 Nm)
1
2
Figure 7-161
2. Loosen screw 3 & 4, press the tab on the right and
the left to remove the cover.
Screw 3, 4 Torque: 6–8 kg-cm / (5.2–6.9 lb-in.) /
(0.6–0.8 Nm)
3
4
Figure 7-162
