Delta VFD300C43A - RFI Jumper; RFI Jumper for Frame A-C

Chapter 1 IntroductionC2000 Series
1-3
1-5 RFI Jumper
RFI Jumper: The AC motor drive may emit the electrical noise. The RFI jumper is used to suppress the
interference (Radio Frequency Interference) on the power line.

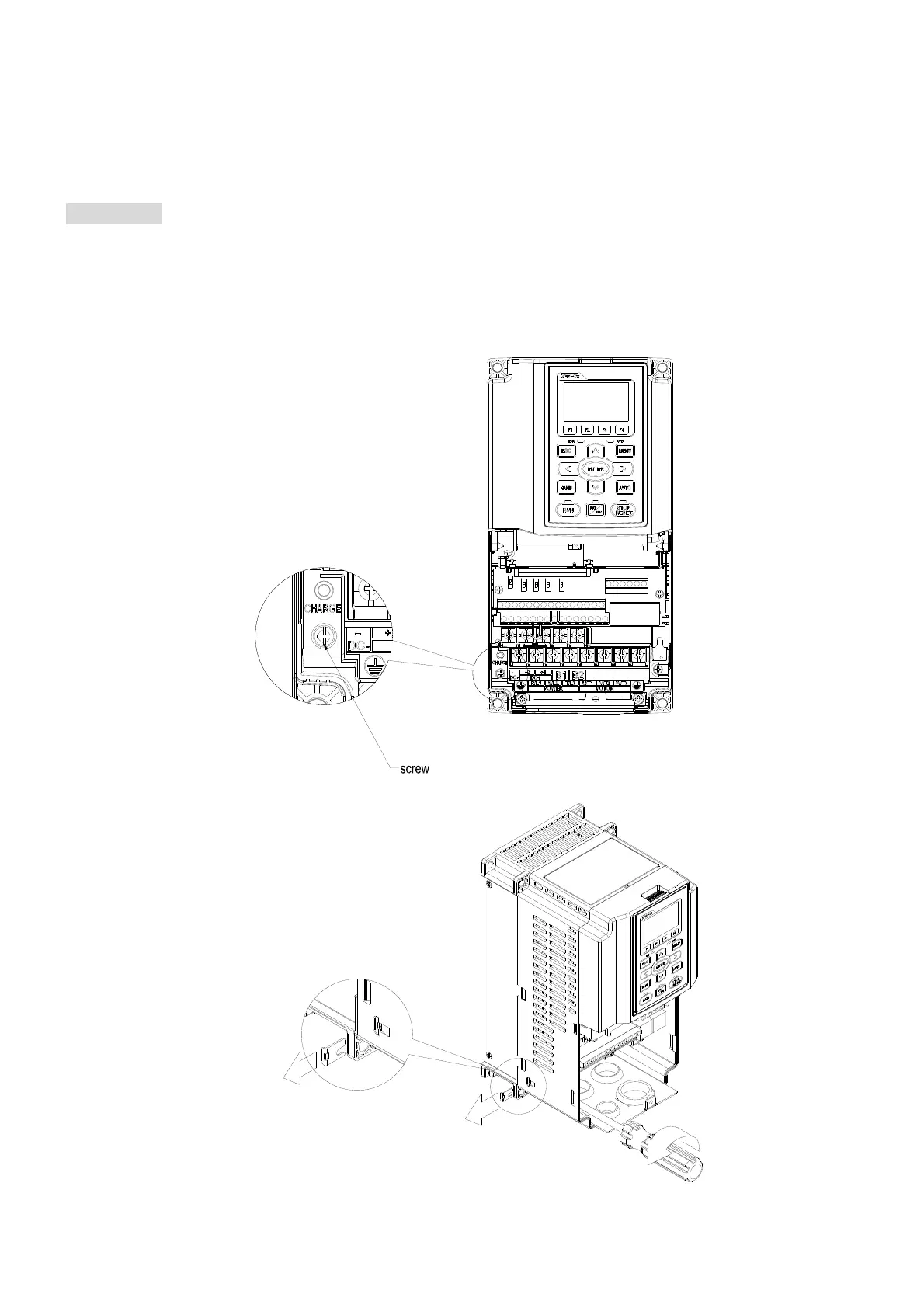

Frame A~C
Screw Torque: 8~10kg-cm(6.9-8.7 lb -in.)
Loosen the screws and remove the MOV-PLATE. Fasten the screws back to the original position after
MOV-PLATE is removed.
