IMPORTANT:
It is important to leave a clearance of 25cm behind the chassis. The clearance is required to
ensure an adequate airow through the chassis to ventilate heat.
To ensure normal operation, maintain ambient airow. Do not block the airow around chassis
such as placing the system in a closed cabinet.
NOTE:

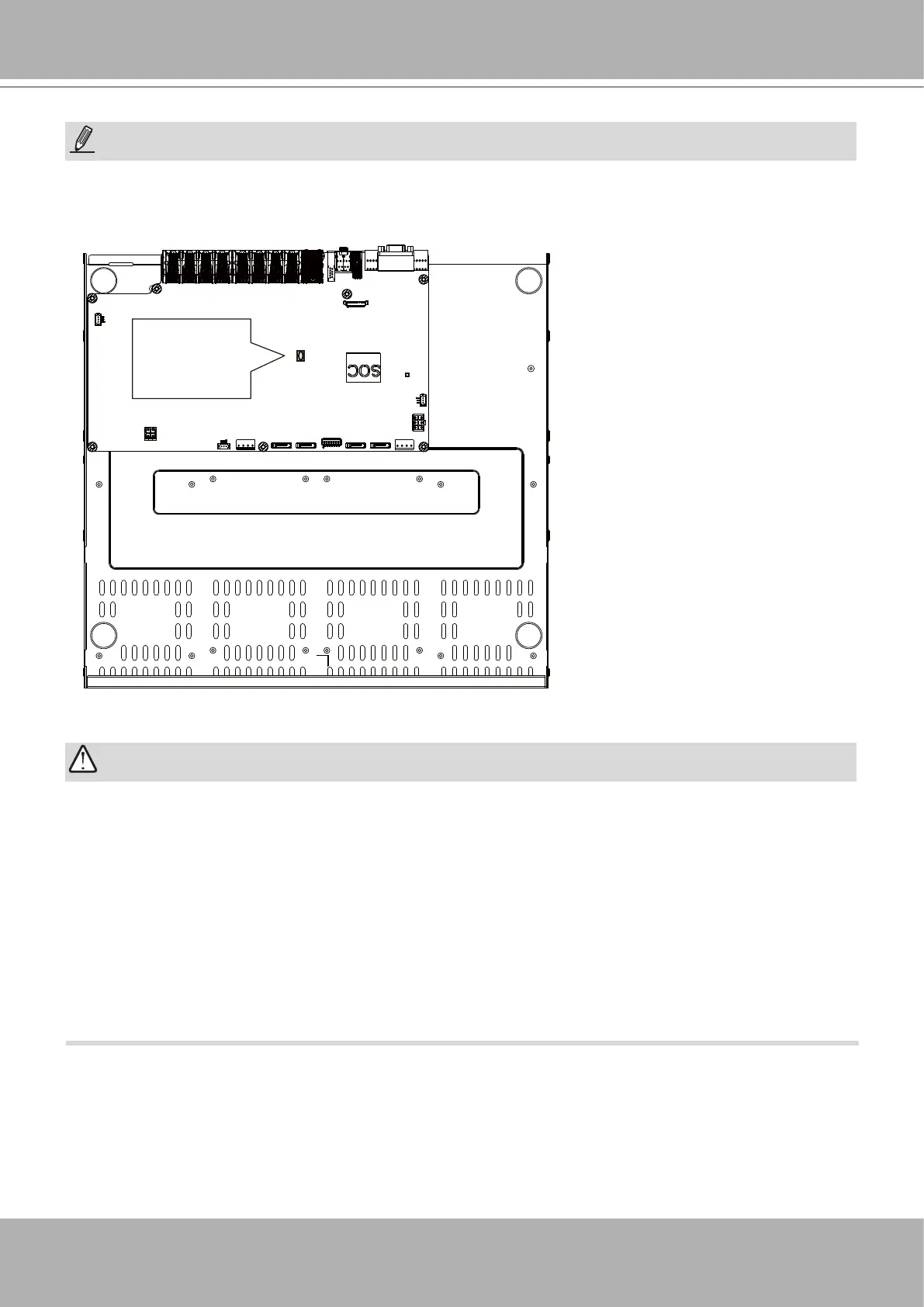

You can also use the Reset button to restore system defaults. Press and hold down the button
for longer than
5
seconds. The system should start restoring defaults.
A5
A6
B1
A7
A8
A1
A2
A3
A4
B2
B3
B4
B5
B6
B7 B8
B9
B10
B11
B12
B14
B15
B16
B17
B18
J1018
J1017
SATA 4
SATA 3
SATA 1
SATA 2
J1014
Reset
