DEMA 801GAP User Manual

I-951 Page 7 of 8
Rev. F-43693 2/14/2018

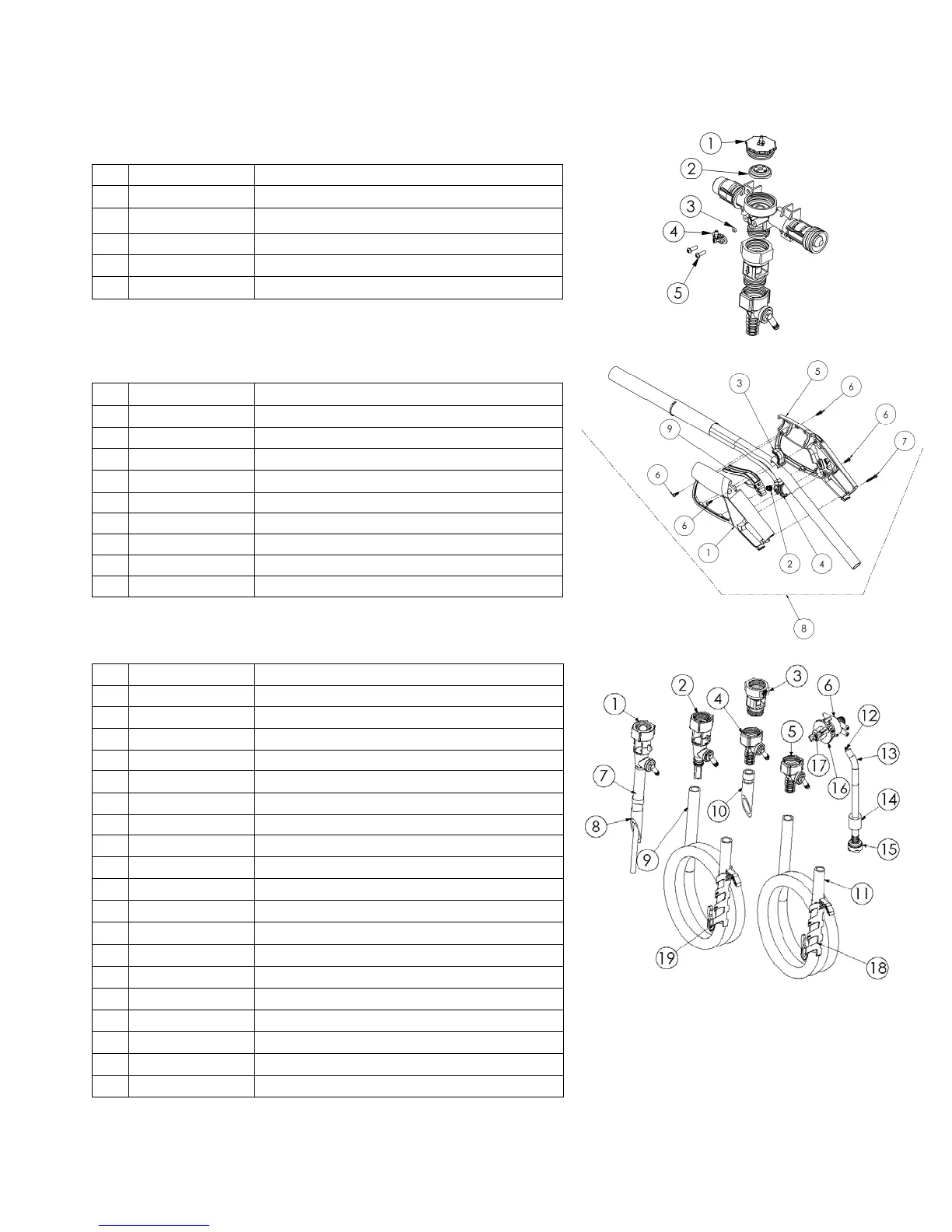

REMOTE FILL APPLICATION
REMOTE FILL APPLICATION
BACK FLOW & PROPORTIONING DEVICES
NO. PART NO. DESCRIPTION
1 98-5-2 Nut, Diaphragm
2 98-26-1 Diaphragm Without Center Hole EPDM
3 26-35 O-ring (EPDM)
4 98-15-1 Elbow
5 58-60 #6 Hi Lo Screw ½” Lg. (2 Required)
NO. PART NO. DESCRIPTION
1 40-731-1 Remote Gun Fill Half (R.H.)
2 40-737-1 Trigger Return Spring
3 40-734-1 Hook
4 40-775-1 Valve Assembly
5 40-730-1 Remote Gun Fill Half (L.H.)
6 58-60 #6 Hi Lo Screw ½” Lg. (4 Required)
7 21-009-6 #6 Hi Lo Screw 1” Lg. (1 Required)
8 40-736-1 Remote Fill Assembly
9 40-735-1 Activation Lever ASM
NO. PART NO. DESCRIPTION
1 61-32BAG-2 Proportioner Assembly (1 GPM)
2
61-22-3BAG-EL2
Proportioner Assembly (4 GPM)
3 16-30 Action Gap Assembly
4 61-99-2 Proportioner Assembly (1 GPM)
5 61-22-3 Proportioner Assembly (4 GPM)
6 63-96-3AFL Selector and Knob Assembly (Aflas)
7 63-82 Tube, 3/16” I.D. Outlet
8 98-43-1 Tube, 9/16” I.D. Outlet
9 98-30-AG Outlet 9/16" I.D. Hose W/Hanger (6' LG)
10 98-42-2 Tube, 1/2” I.D. Outlet
11 89-30-GAP Outlet 1/2" I.D. Hose W/Hanger (6' LG)
12 100-15K Metering Tip Kit (14 Sizes)
13 100-12 /100-12E Hose, 7/32” I.D. x 8’ Lg./7/32” I.D. x 50’ Lg.
14 61-107-2 Ceramic Weight, 3/8” I.D.
15 100-16E Foot Valve Assembly (EPDM)
16 63-111-2 Knob
17 58-60 Screw, Hi/Low, #6 x ½”
18 89-28-1 Hose hanger, Action Gap Hose style
19 89-28-2 Hose hanger, Air Gap Hose style
