I-951 Page 3 of 8
Rev. F-43693 2/14/2018

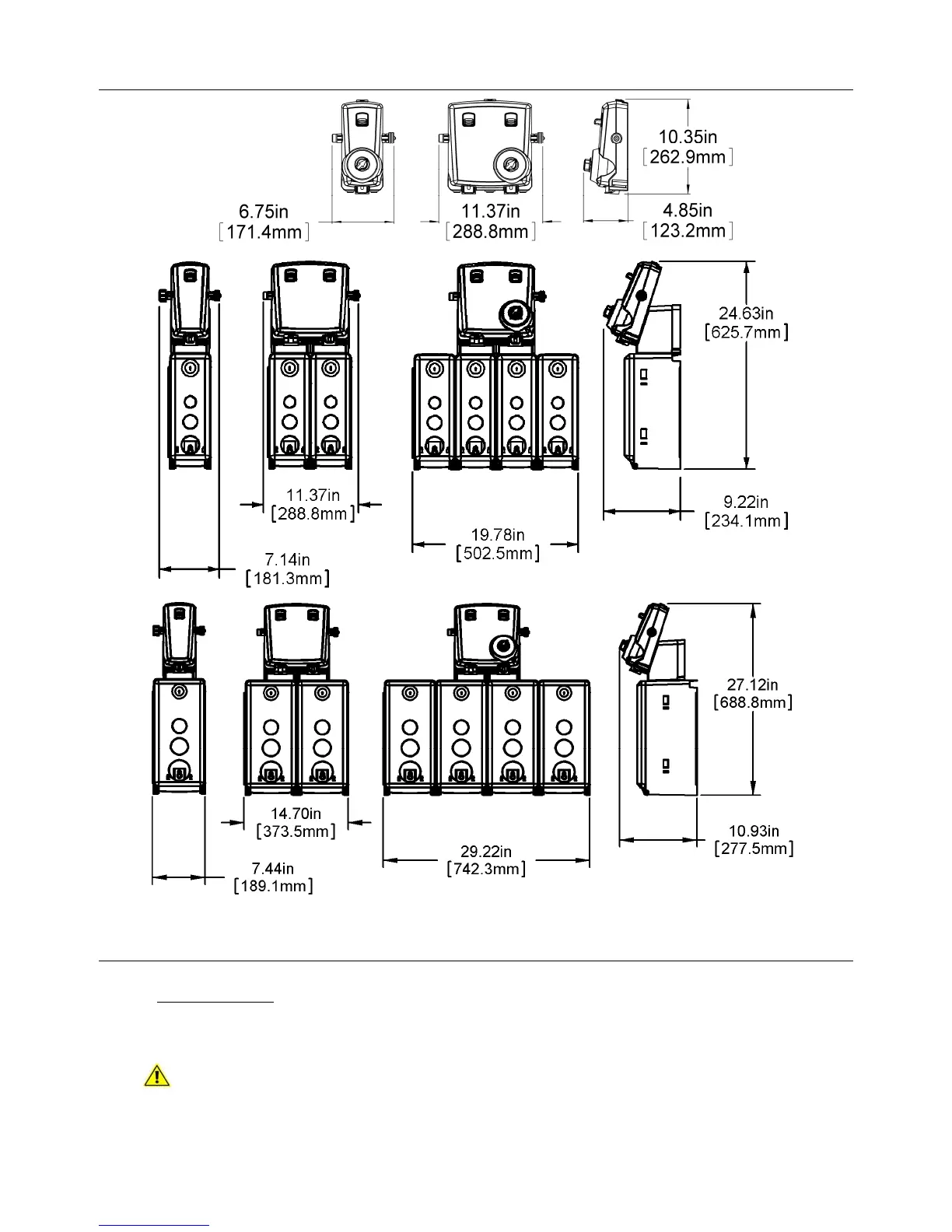

Overall Size
Installation
Mounting
Dispenser Only
1. Remove selector knobs (if installed) by pulling on the knobs.
2. Remove the dispenser cover by depressing the tab on the top of the cover.
3. Position the dispenser on the wall and mark the screw locations.
4. Chemical containers can be no greater than 6’ (1.83 meters) below the dispenser.
5. Install the supplied anchors in the wall.
6. Mount the dispenser to the wall with the supplied screws.
7. Replace the cover and any selector knob.
