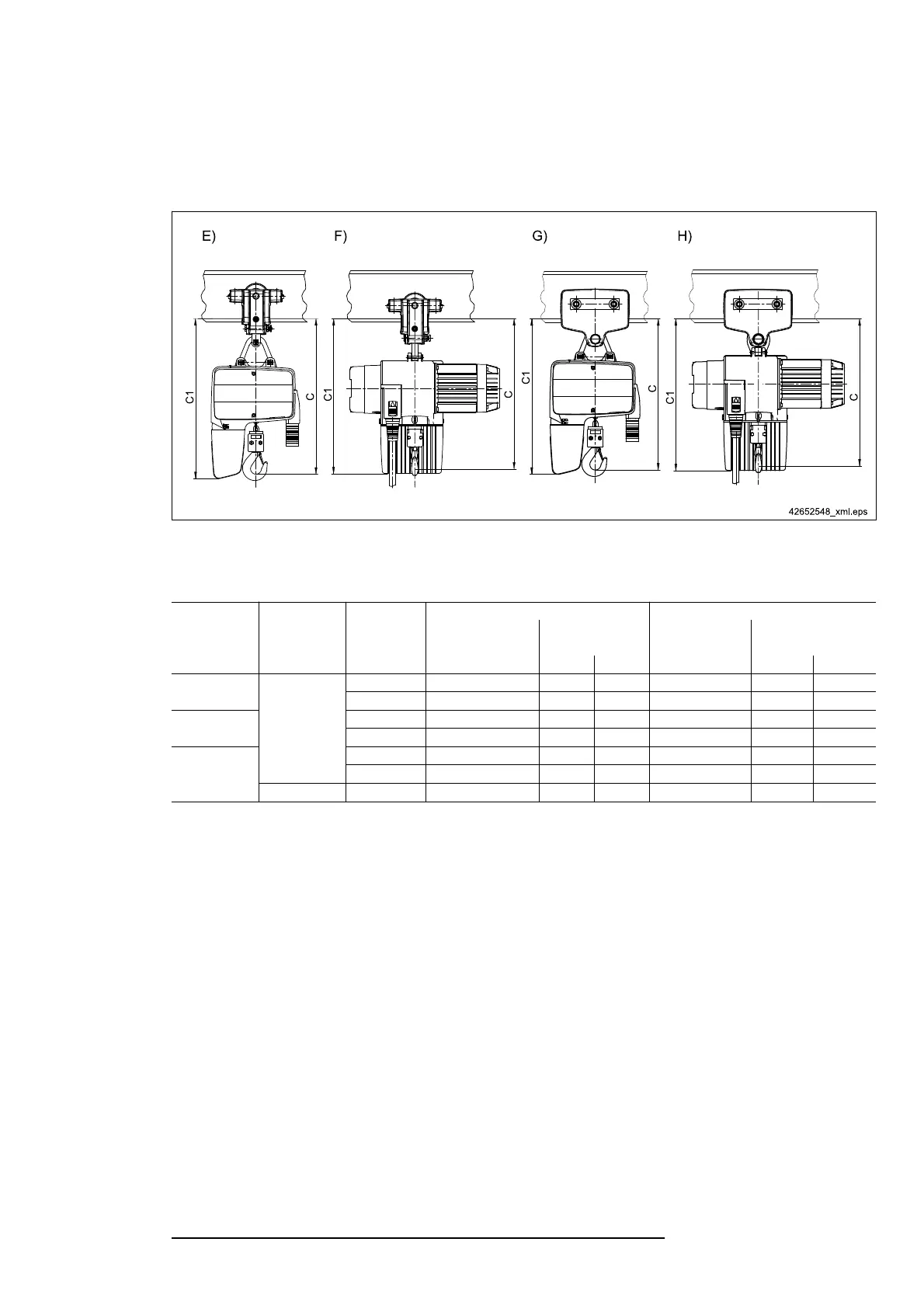

DC-Com chain hoist with tolley
Fig. 6
E CF 5 trolley transverse to girder
F CF 5 trolley parallel to girder
G U 11, U22, U 34 trolley transverse to girder
H U 11, U22, U 34 trolley parallel to girder
Size
17)
Reeving Trolley Transverse to girder Parallel to girder
C
C1 C C1
Chain collector box Chain collector box
H4 / H5 H8 H4 / H5 H8
DC Com 1/2
1/1
U 11 416 425 455 411 420 450
CF 5 406 415 445 401 410 440
DC-Com 5
U 11 468 487 517 463 482 512
CF 5 458 477 507 453 472 502
DC-Com 10
U 11 557 578 667 581 602 672
U 22 569 590 679 593 614 703
2/1 U 22 / U 34 661 679 679 685 703 803
Tab. 16
17)
Dimensions C and C1 decrease when the short suspension bracket is used: for DC-Com 1-5 by 38 mm and for DC-Com 10 by 33 mm, see also
⇒ "Suspension", Page 34.
