11
21495344.indd/311007
3.2.1 Downwards compatibility of
DRC-10 D2 transmitters
For combining DRC-10 D2 transmitters with D1 type receivers
DRC-DR, part no. 719,441 45
DRC-MP, part no. 773 432 44
these transmitters must be programmed for operation at a fixed frequency (chapter
„Programming parameters of the DRC-10 handheld transmitter“, section 1.6).

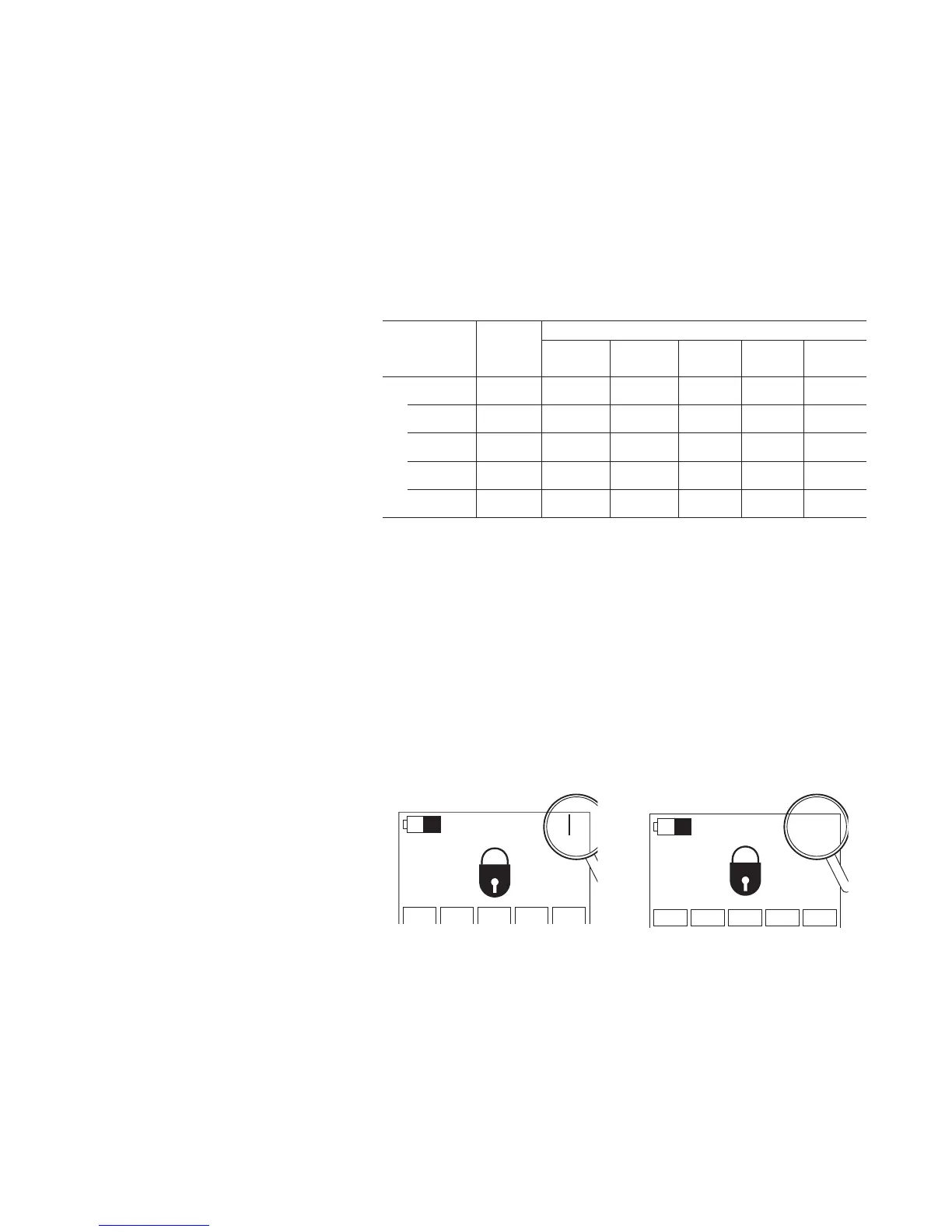

The table below shows an overview of the possible combinations
3.2.2 Compatibility
D1, D1 FH and D2
Design
Product
Part no.:
Receiver
D1
DRC-MP
773 432 44
D1
DRC-DR
719 441 45
D1 FH
DRC-Mp
773 584 44
D1 FH
DRC-DR
719 436 45
D2
DRC-DR
719 439 45
Transmitter
D1
DRC-10
773 431 44
OK OK
not
compatible
not
compatible
not
compatible
D1
DRC-J
773 460 44
OK OK
not
compatible
not
compatible
not
compatible
D1 FH
DRC-10
773 581 44
Fixed
frequency
Fixed
frequency
OK OK OK
D1 FH
DRC-J
773 583 44
Fixed
frequency
Fixed
frequency
OK OK OK
D2
DRC-10
773 591 44
Fixed
frequency
Fixed
frequency
OK OK OK
Explanation:
D1 without frequency hopping
D1 FH with frequency hopping
D2 with frequency hopping and, if required, with extended functions
Transmitters and receiver with frequency hopping can be identified by the part no.
on the rating plate.
Additionally transmitters with frequency hopping have a different symbol for the
signal strength in the display.
3.2.3 Frequency hopping feature
Transmitter without frequency hopping
Transmitter with frequency hopping
NOID ???
NOID
