14
21495344.indd/311007

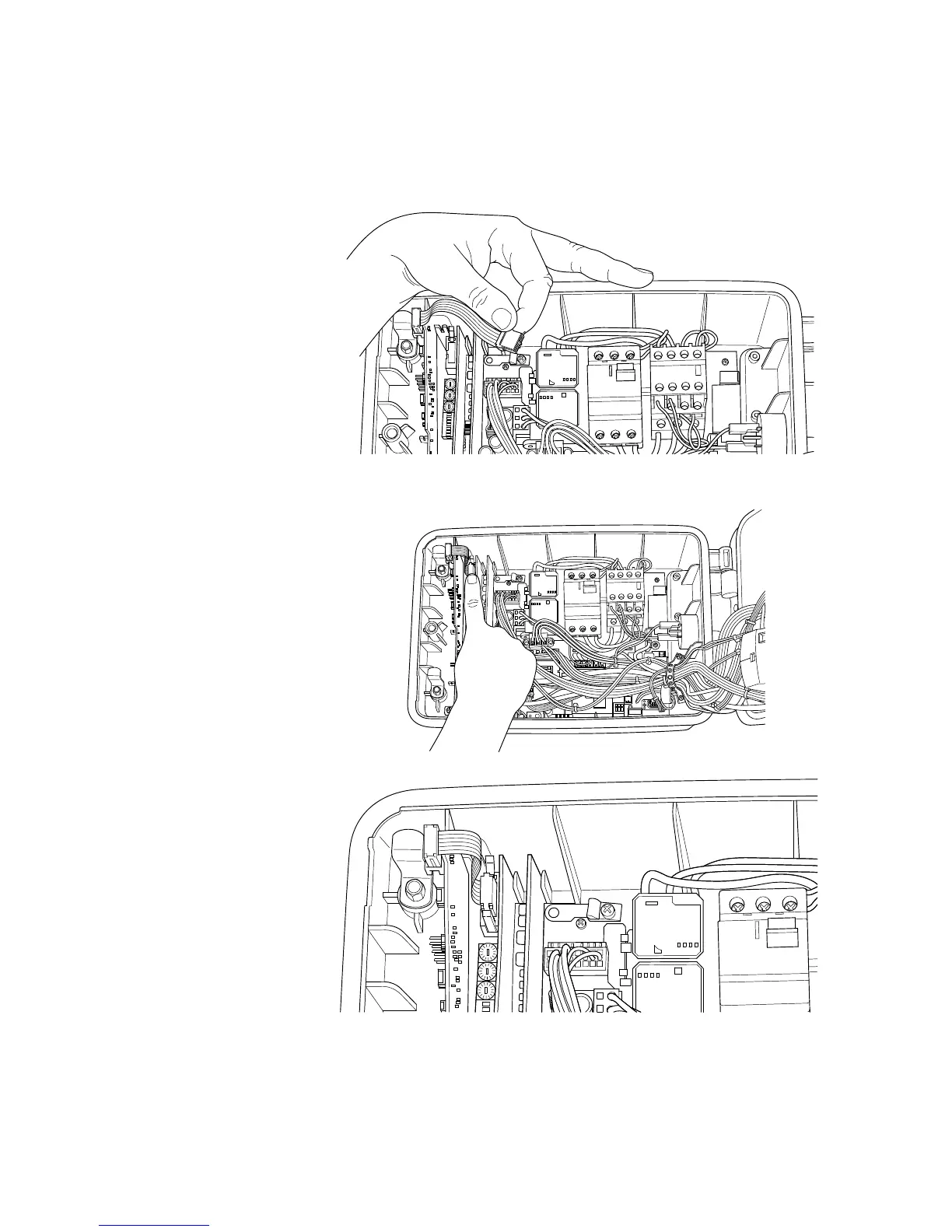

• Connecting the flat cable from the radio receiver to the controller card of the
rope hoist control system
• With the above steps, installation of the radio receiver card has been complet-
ed. Before the system is put into operation again, make sure that other control
components such as, for example, the DSE-8R or DSE-10R control pendant
with cable, have been disconnected from the system. Otherwise, no clear as-
signment of the control units is possible.
42354644.eps
42354844.eps
42354744.eps
