8.4.4.2 Removing and installing the suspension fork and suspension

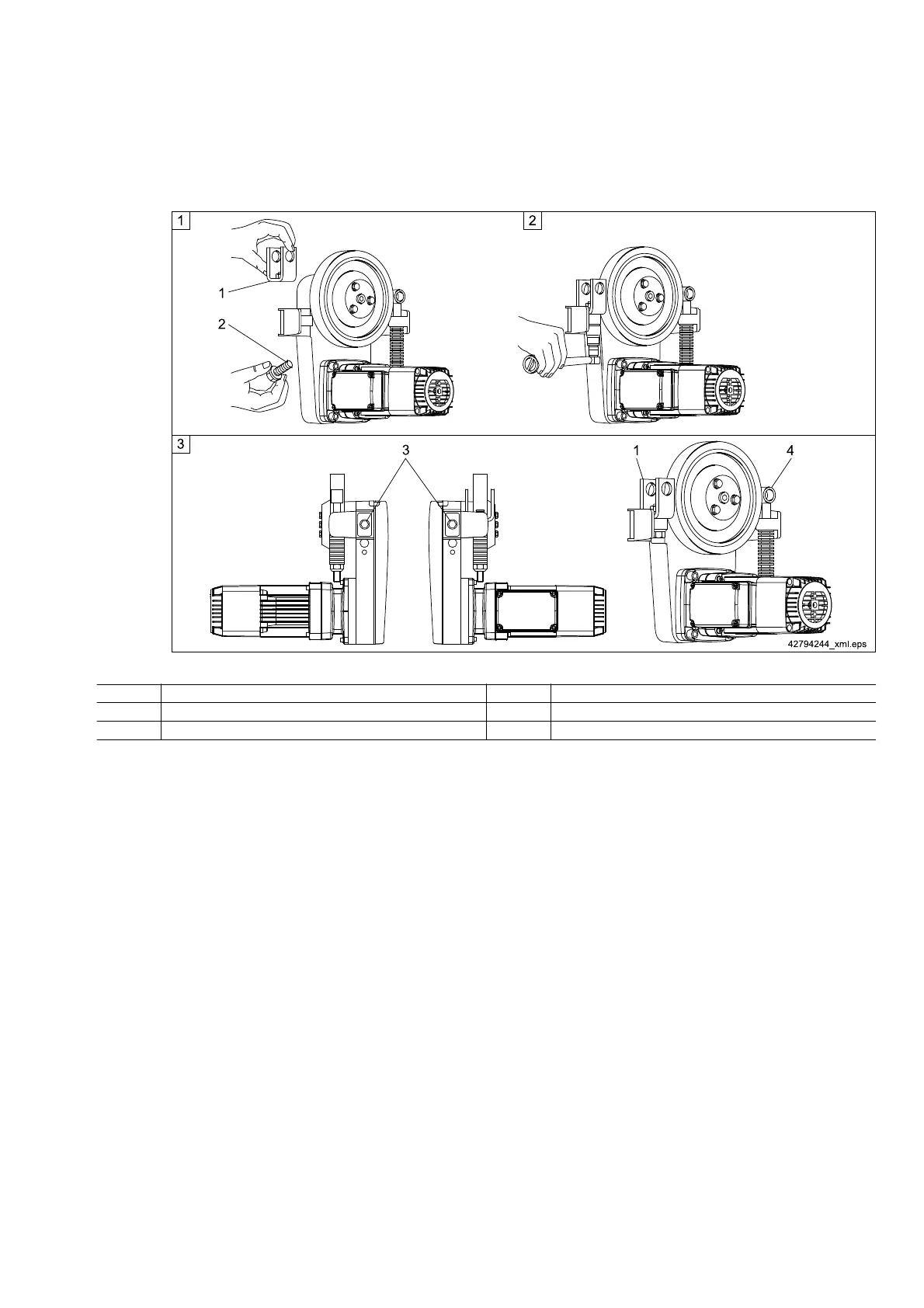

Fig. 20
Item Designation Item Designation
1 Suspension fork 3 Hexagon bolt suspension
2 Hexagon bolt suspension fork 4 Eye bolt
Tab. 32
1. Install suspension fork (1) with hexagon bolt (2).
2. Tighten hexagon bolt (2) to a tightening torque of 270 Nm.
3. On both sides of the friction wheel, tighten hexagon bolts (3) for the suspension to a tightening torque of
70 Nm. The bore holes of suspension fork (1) and eye bolt (4) are used to attach a trolley load bar.
214 395 44/120914
47
