4.10 Power supply lines

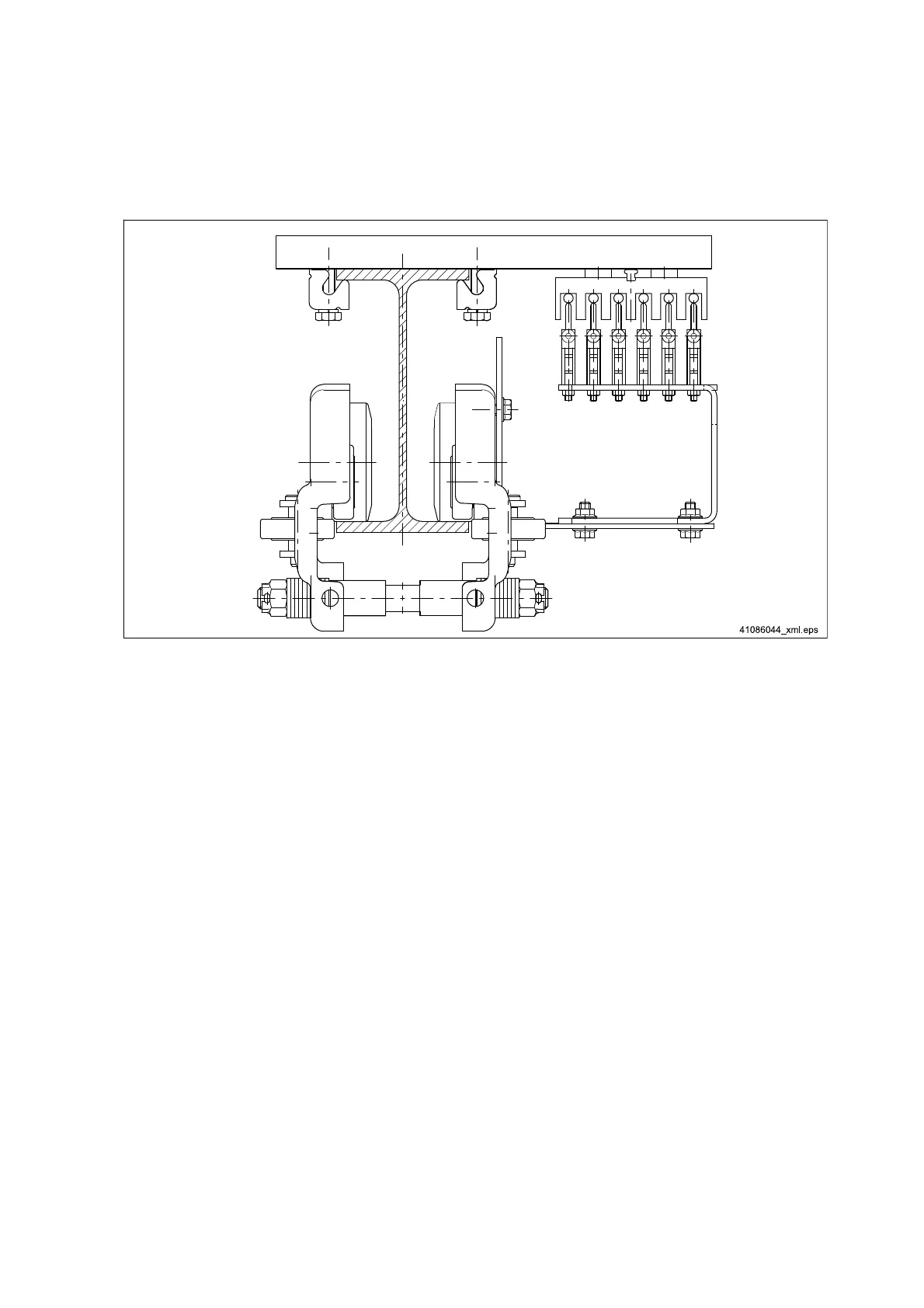

Fig. 10 Example of a current collector arrangement on a DRF 200 trolley
Power supply is provided via a specially developed current collector system.
The DEL current collector system is suitable for travel through horizontal and vertical curves in the specified per‐
mitted radius range.
The DCL current collector profile is suitable for travel through horizontal curves. The minimum permitted radius for
this system depends on the enclosure material and the conductor cross-section.
Power supply for travel along straight tracks can also be provided by a trailing cable.
The current collector bracket and/or current collector tube can be bolted to the trolley using the corresponding
bore holes in the side cheek.
Limit switches and proximity switches can be attached to the trolley using a C-rail.
For further information on DEL, DCL and DKK power supply lines, the trailing cable and the C-rail, see Tab. 2,
Page 2.
22
214 395 44/120914
