DEMAG DRF 200 - Friction Wheel Drive; Removing and Installing the Friction Wheel

8.4.4 Friction wheel drive
8.4.4.1 Removing and installing the friction wheel

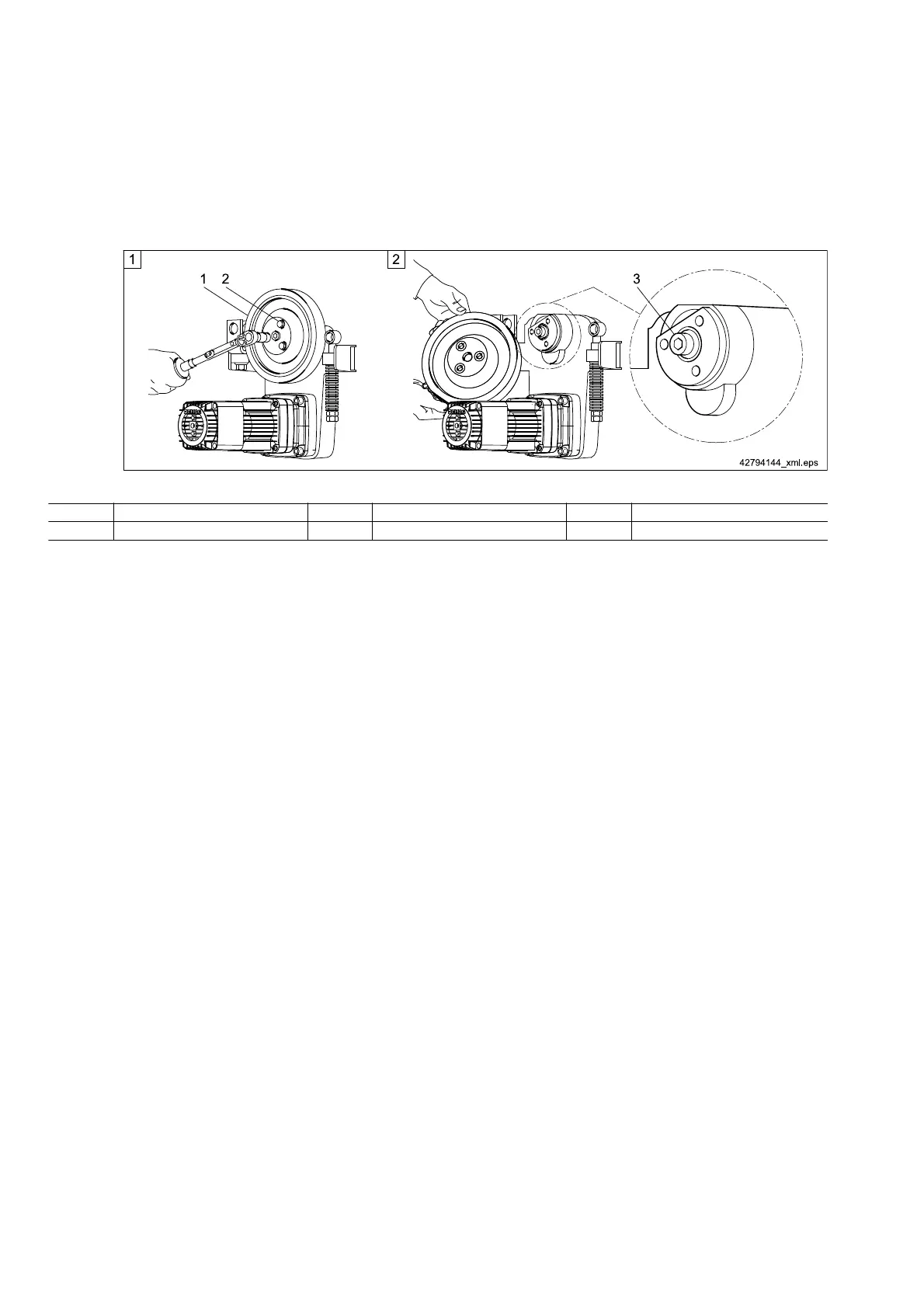

Fig. 19
Item Designation Item Designation Item Designation
1 Friction wheel 2 Hexagon bolts 3 Hub
Tab. 31
1. To replace friction wheel (1), unscrew the three hexagon bolts (2).
2. The tightening torque of hub (3) must be checked and, if necessary, re-tightened before friction wheel (1) is
installed. The tightening torque is 45 Nm.
Ensure the tapered connection is dry when new parts are installed.
Install friction wheel (1) and tighten the three hexagon bolts (2) to a tightening torque of 70 Nm.
