Demco HCM - Wheel Carrier Installation and Row Spacing

Page 13 AB20020
ASSEMBLY INSTRUCTIONS
4. Attach the Wheel Carriers (#28) to the Axle Tube with two
1/2” square u-bolts (#5) and four nylon locknuts (#23) on
each side. DO NOT TIGHTEN BOLTS AT THIS TIME.
5. Slide the wheel carriers into position for your particular
row spacing (30” or 40” rows).
NOTE: Check the position of the wheel carrier up
- rights for 30” rows (VIEW A) or 40” rows, turf or
pasture (VIEW B) as shown.
6. Tighten the U-bolts on the wheel carriers.
7. Bolt the two rims (#6, with tires mounted) to the hubs with
the twelve 1/2” x 1” lug bolts (#36) provided.
6
28
36
23
5

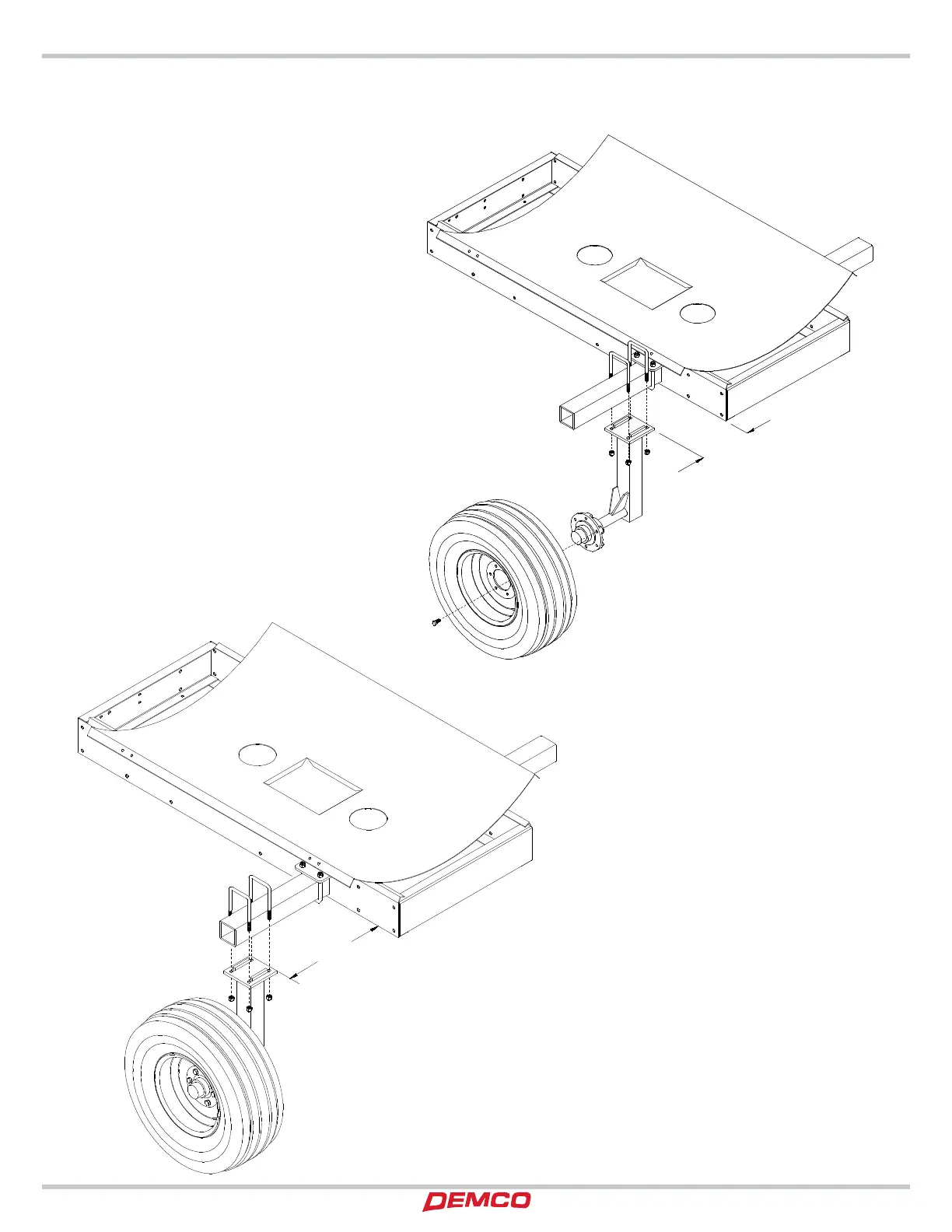

VIEW A
3-1/2”
13-1/2”
6
23
5
VIEW B
* FOR REFERENCE NUMBER
LIST AND DESCRIPTION SEE
PAGE 21
23
15
15
WHEEL CARRIER INSTALLATIION AND ROW SPACING
