Demco HCM - Foam Marker, Electric Control Panel & Hand Gun Storage Bracket Mounting Locations

Page 23 AB20020
MOUNTING INSTRUCTIONS
45. Mount the mounting brackets (#2 & 3), using four 1/2” x
1-1/4” bolts, flatwashers and nylon locknuts, provided
with foam marker.
46. Mount the electric control panel (#7) using four 3/8”
x 1” bolts, lockwashers and nuts provided with CP414
control panel.
47. Mount handgun bracket (#11) using existing bolts
already in tongue.
PARTS LIST
Please order replacement parts by PART NO. and DESCRIPTION.
REF. PART
NO. NO. QTY. DESCRIPTION
1. - 1 Foam Marker
2. 12911-76 2 Foam Marker Mount
3. 00967 4 1/2”-13 UNC x 1-1/4” Hex Hd. Bolt
4. 00085 12 1/2” Flatwasher
5. 02178 4 1/2”-13 UNC Nylon Insert Locknut
6. CP414HVR 1 Electric Control Panel
7. 00907 4 3/8”-16 UNC x 1” Hex Hd. Bolt
8. 00060 4 3/8” Lockwasher
9. 00061 4 3/8”-16 UNC Hex Nut
10. 04931-76 1 Handgun Bracket
1
2
2
3
4
5
6
7
8
9
10

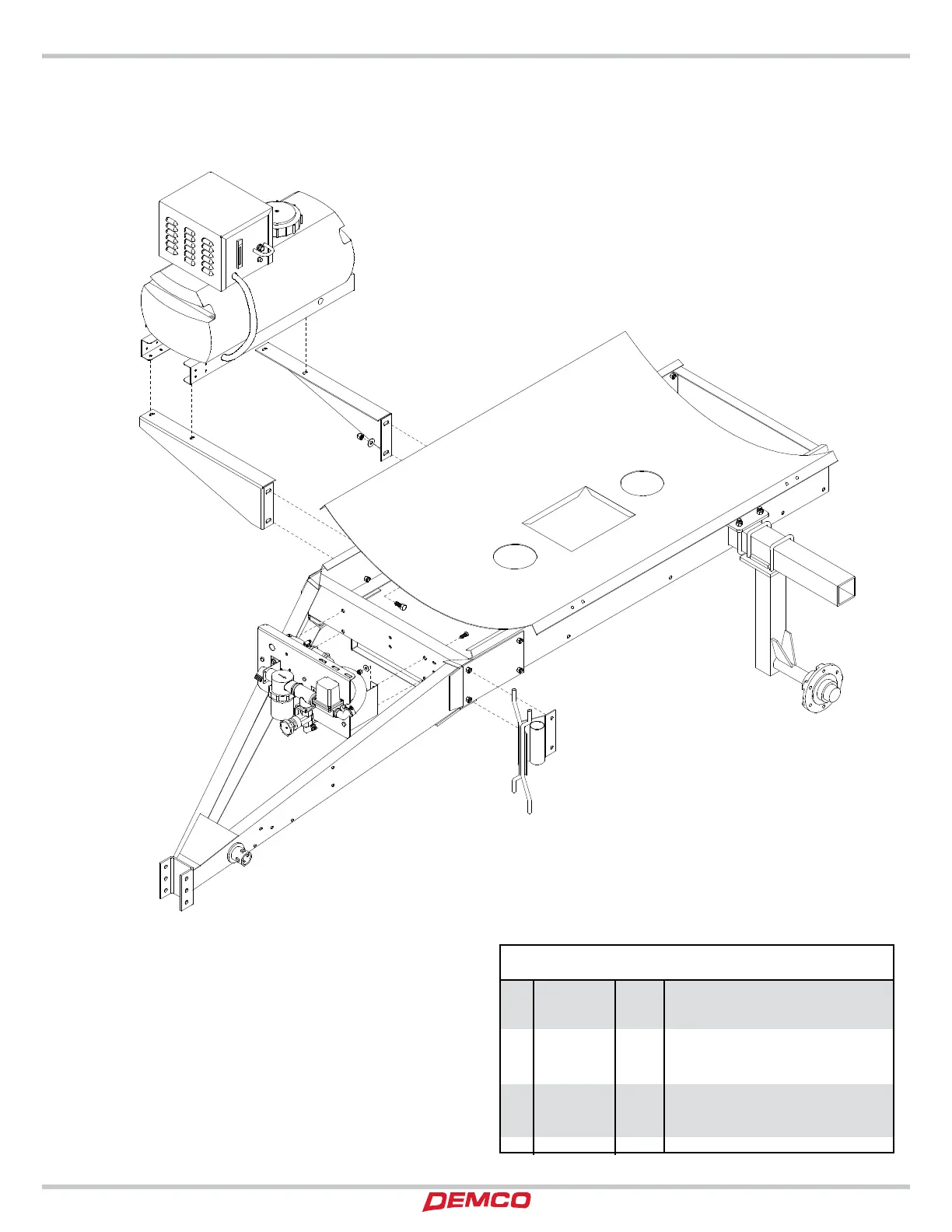

FOAM MARKER, ELECTRIC CONTROL PANEL & HAND GUN STORAGE BRACKET MOUNTING LOCATIONS
