Demco HCM - Manual Boom Control, Panel Mount Installation

Page 18 AB20020

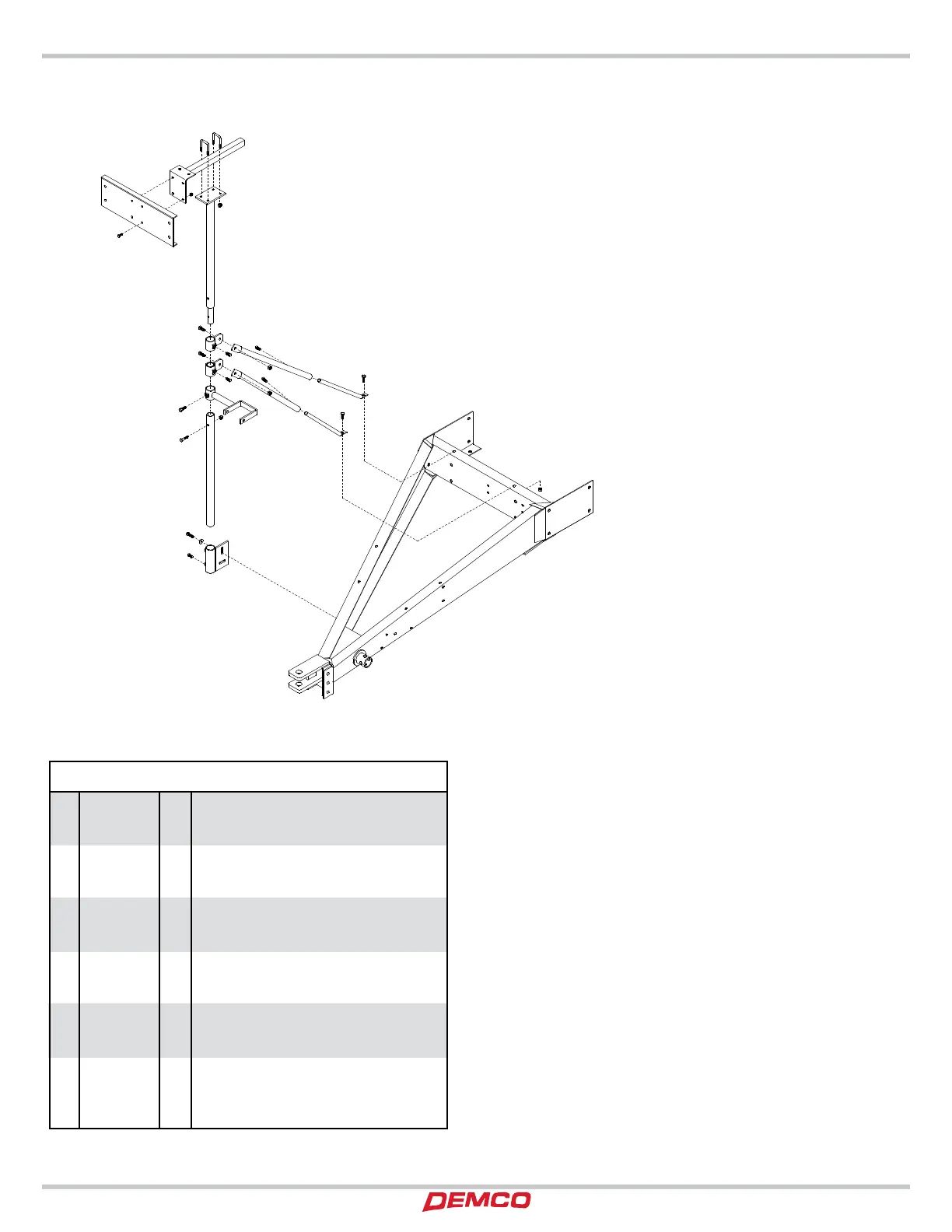

ASSEMBLY INSTRUCTIONS
(For electric control panel mounting location see page 19)
30. Bolt on manual panel mount (#7) using two 3/8” x 1-1/4”
bolts (#1), flat washers (#3) and nylon locknuts (#2).
31. Insert lower valve mounting bracket (#5) into panel mount
on frame and tighten 3/8” x 3/4” square head set screws (#6).
32. Slide PTO shaft holder (#11) and two panel mount
collars (#12) over upper valve mounting bracket (#8) and insert into
lower valve mounting bracket (#5). Bolt the two halves
together with 5/16” x 1-3/4” bolt (#15) and nylon locknut (#16).
33. Tighten PTO shaft holder (#11) with 3/8” x 3/4” set screw (#6)
when you know where it goes.
34. Bolt female stabilizer braces (#13) to panel mount
collars (#12) with 3/8” x 1” bolts (#4) and nylon locknuts (#2).
Insert male stabilizer braces (#14) and secure to frame with
3/8” x 1” bolt (#4) and nylon locknut (#2), as shown. Tighten
collars and braces with 3/8” x 3/4” set screws (#6).
35. Bolt the horizontal valve mounting bracket (#9) to upper
valve mounting bracket (#8) using two 5/16” square U-bolts (#17)
and nylon locknut (#16). Bolt mounting plate (#10) to mounting
bracket using four 1/4” x 3/4” bolts (#18) and nylon locknuts
(#19).
1. 00523 4 3/8”-16 UNC x 1-1/4” Hex Hd. Bolt
2. 02592 7 3/8”-16 UNC Nylon Insert Locknut
3. 00059 2 3/8” Flatwasher
4. 00907 3 3/8”-16 UNC x 1” Hex Hd. Bolt
5. 04934-76 1 Lower Valve Mtg. Bracket
6. 00095 7 3/8” x 3/4” Set Screw
7. 02148-76 1 Manual Panel Mount
8. 04933-76 1 Upper Valve Mtg. Bracket
9. 04935-76 1 Horizontal Valve Mtg. Bracket
10. 04936-76 1 Panel Mounting Plate
11. 05117-76 1 PTO Shaft Holder
12. 02145-76 2 Panel Mount Collar
13. 02147-76 2 Female Stabilizer Brace
14. 02146-76 2 Male Stabilizer Brace
15. 04759 1 5/16”-18 UNC x 1-3/4” Hex Hd. Bolt
16. 02802 5 5/16”-18 UNC Nylon Insert Locknut
17. 00909 2 5/16” x 1-1/4” Sq. U-Bolt
18. 01076 4 1/4”-20 UNC x 3/4” Hex Hd. Bolt
19. 02772 4 1/4”-20 UNC Nylon Insert Locknut
REF. PART
NO. NO. QTY. DESCRIPTION
PANEL MOUNT PARTS LIST
Please order replacement parts by PART NO. and DESCRIPTION.
1
3
7
6
2
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
2
4
6
6
6
16
4
13
14
MANUAL BOOM CONTROL, PANEL MOUNT INSTALLATION
