Demco HCM - Hypro Belt Drive Mounting & Centrifugal Pump Plumbing

Page 19 AB20020
NOTE: Thread sealant should be
applied to all threaded
fittings before assembly.
1
10
29
13
13
2
13
13
14
14
16
16
18
19
19
21
22
22
22
22
23
23
24
24
24
26
9
28
42
32
32
34
4
6
5
25
17
31
12
14
13
30
11
13
8
35
36
39
38
37
4
5
13
14
13
31
33
34
34
40
33
33
20
10
27
20
7
28
4

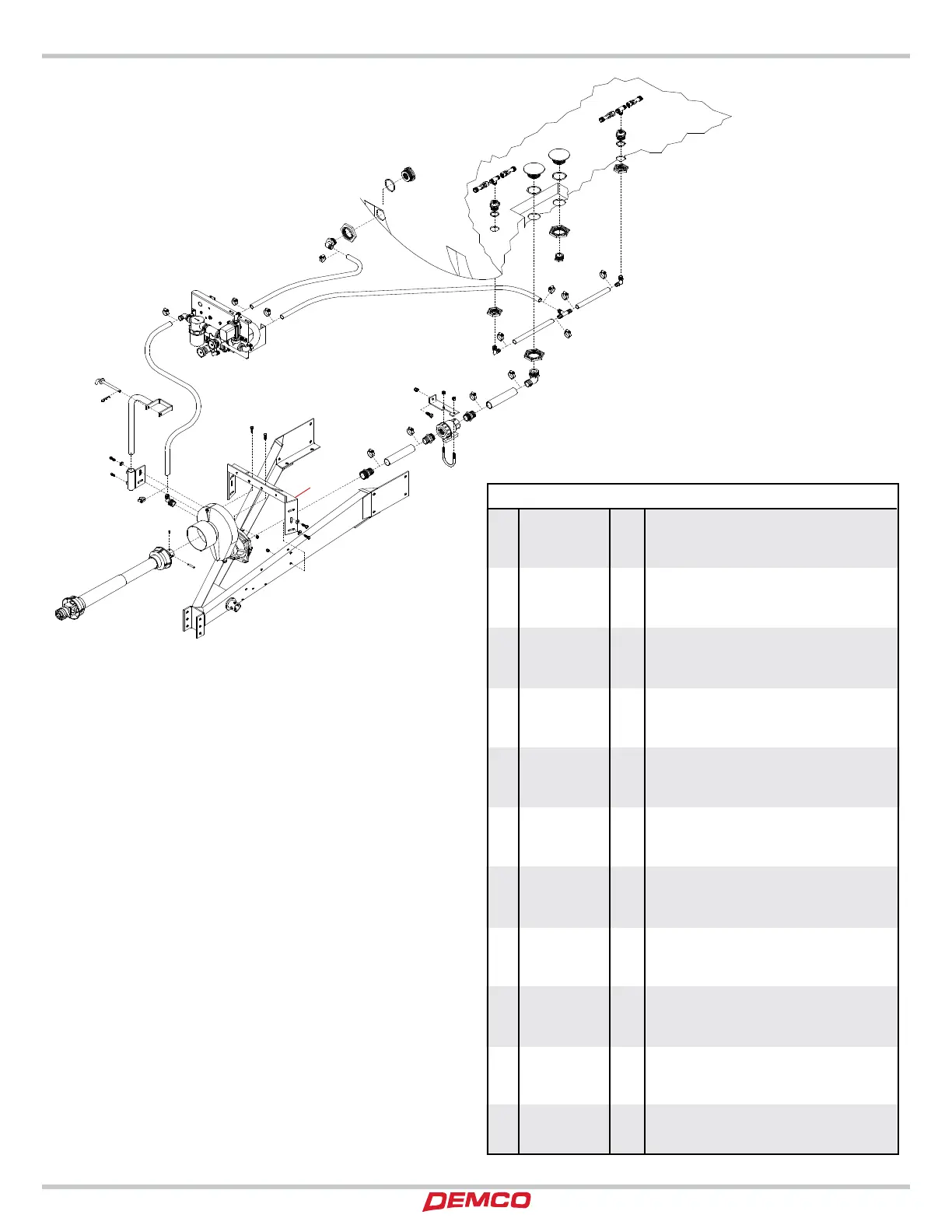

HYPRO BELT DRIVE PUMP MOUNTING
36. Begin by bolting the pump hanger (#1) to the
sprayer tongue with 3/8” x 1-1/4” bolts, flat wash-
ers and nylon locknuts as shown.
37. Bolt Hypro pump mounting bracket (#2) to hanger
using two 1/2” x 1-1/4” bolts, flat washers and
nylon locknuts.
38. Next bolt pump (#3) to the bracket (#2) using two
3/8” x 1-3/4” bolts, flat washers, and nylon lock
nuts.
39. For Electric Control Panels Only-
Bolt the PTO holder mount (#37) to the tongue
using two 3/8” x 1-1/4” bolts (#4), flatwashers (#5)
and nylon locknuts (#6). Insert PTO shaft
holder (#38) into mount and secure with two 3/8”
x 3/4” set screws(#39). Place 3/8” removable pin
(#41) in holder along with small hairpin (#40). The draw-
ing and parts breakdown are for installing the hoses and
various components. Be sure to run 1-1/2” hose from
the anti-vortex tank outlet fitting to the inlet side of the
pump, 1” hose from the outlet side of the pump to the
control panel, 3/4” hose from the panel to the agitators
and 3/4” hose from the panel to the boom insert tees.
REF. PART
NO. NO. QTY. DESCRIPTION
Please order replacement parts by PART NO. and DESCRIPTION.
* NOT INCLUDED ON ECONOMY MODELS
HYPRO BELT DRIVE PUMP PARTS LIST
3
3
1. 07207-76 1 Pump Hanger
2. C9402 540S 1 Hypro Belt Drive Pump
3. 00523 6 3/8”-16 UNC x 1-1/4” Hex Hd. Bolt(Gr.5)
4. 00059 4 3/8” Flatwasher
5. 02592 8 3/8”-16 UNC Nylon Insert Locknut
6. 00908 2 3/8”-16 UNC x 1-3/4” Hex Head Bolt(Gr.5)
7. 00789 1 5/16”- 18 UNC x 3/8” Socket Set Screw
8. 00662 1 5/16” x 1-3/4” Roll Pin
9. 00967 * 3 1/2”-13 UNC x 1-1/4” Hex Head Bolt(Gr.5)
10. BEL1010 1 1” MPT x 1” HB Elbow (GFP)
11. B20H 2 1” Gear Clamp
12. 1010RB - 1” Rubber Hose
13. B12H 12 3/4” Gear Clamp
14. 340RB - 3/4” Rubber Hose
15. T34 1 3/4” HB Insert Tee
16. BEL1234 2 1/2” MPT x 3/4” HB Elbow (GFP)
17. PO12DA 2 1/2” Double Thread Outlet
18. R1212 2 1/2” MPT Tee
19. 5044 1 4 Single Agitation
20. CP114PAV 2 1-1/4” Anti-Vortex Outlet Fitting
21. EL114 112 1 1-1/4” MPT x 1-1/4” HB Elbow (GFP)
22. B32H 4 1-1/2” Gear Clamp
23. S112 - 1-1/2”Suction Line
24. A114 112 3 1-1/4” MPT x 1-1/2” HB (GFP)
25. UV125FP 1 1-1/4” Poly Ball Valve
26. 02757* 1 7/16” U-bolt
27. 01811-30* 1 Valve Mounting Bracket (Deluxe models)
28. 02178* 3 1/2”-13 UNC Nylon Insert Locknut
29. 00211 - 32” 540 RPM PTO Shaft
30. CP414HVR - Electric Control Panel
CP3B3HV - Manual Control Panel
31. 5077V 2 Viton Grommet
32. N5P 2 Nut for Tank Outlets
33. 5078V 3 Viton Grommet
34. N8P 3 Tank Outlet Nut
35. 02148 1 PTO Holder Mount
36. 04932-76 1 PTO Holder Shaft
37. 00095 2 3/8”x 16 UNC x 3/4” Sq. Hd. Set Screw
38. 00182 1 1/8” Small Hairpin
39. 00183-95 1 1/4” x 5-3/4” PTO Pin
40. F1014 2 1-1/4” Hex Plug
41. CP114P 1 1-1/4” Outlet Fitting
42. 04168 2 7/16” Nylon Insert Locknut
HYPRO BELT DRIVE MOUNTING & CENTRIFUGAL PUMP PLUMBING
