Demco HCM - Quick Refill (CPTK1) Parts Breakdown & Installation

Page 22 AB20020
NOTE: Apply thread sealant to the fittings. Do not use seal-
ant on external threads of tank outlet fitting.
REF.
NO. PART NO. QTY. DESCRIPTION
QUICK REFILL (CPTK1) PARTS LIST
Please order replacement parts by PART NO. and DESCRIPTION.
1. BM1140 2 1-1/4”MPT Nipple (GFP)
2. BTT114 2 1-1/4” FPT Tee (GFP)
3. A114-112 1 1-1/4” MPT x 1-1/2” HB (GFP)
4. B32H 2 1-1/2” SS Gear Hose Clamp
5. 1120RB - 1-1/2” Rubber Hose
6. BA112 1 1-1/2” MPT x 1-1/2” Hose Barb (GFP)
7.
BA200-112 1 2” MPT x 1-1/2” FPT Reducer (GFP)
8. UV200FP 1 2” Poly Ball Valve
9. 633F2020 1 2” Adapter - Male NPT
10. 634B2020 1 2” Cap for Adapter
11. 633C2020 1 2” Hose Shank Coupler
12. 02757 1 7/16”-14 UNC x 3” U-Bolt
13. 01811-76 1 Quick Refill Mounting Bracket
14. 00967 2 1/2”-13 UNC x 1-1/4” Hex Head Bolt (Gr 5)
15. 02178 2 1/2”-13 UNC Nylon Insert Locknut
16. 00205 2 7/16” Flatwasher
17. 02771 2 7/16”-14 UNC Nylon Insert Locknut
1
2
3
4
5
4
6
7
8
9
10
11
12
16
17
13
14
15
To Control
Panel Valve

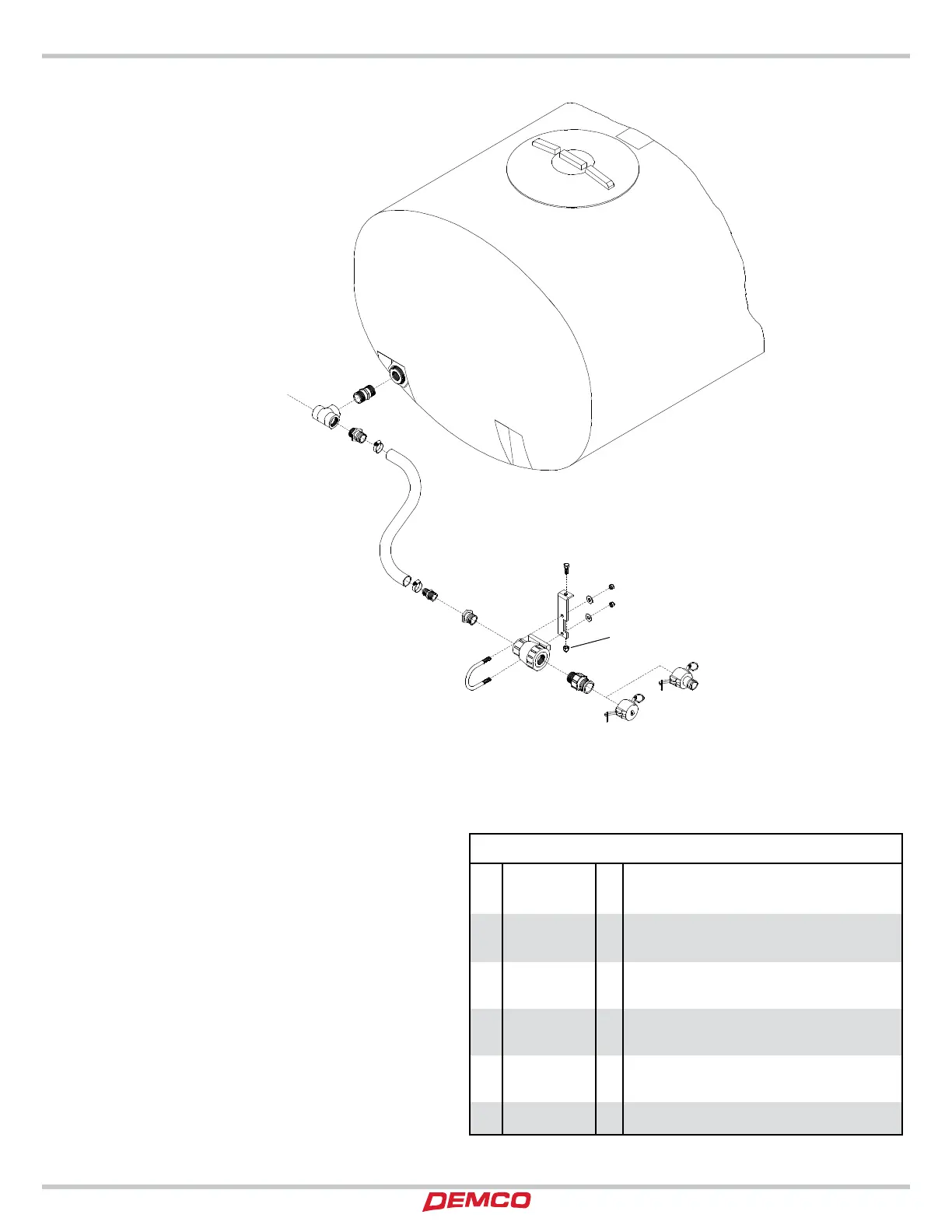

(OPTIONAL CPTK1) QUICK REFILL PARTS BREAKDOWN & INSTALLATION
