Demco RMLE - Polyester Bands for Demco Tanks

AC20021 Page 17
* Strap only sold by the Linear Foot
Locate tank, locate inches of material needed per band, multiply that
length by the number of bands needed
divide by 12
= number of linear feet needed
REF. PART
NO. NO. QTY. DESCRIPTION
Attaching Hardware for Strap Bands
NOTE: Be sure to center the straps and make final adjustments before
tightening them down with the bolts.
NOTE: Be sure to check the straps periodically to ensure they are
tight.

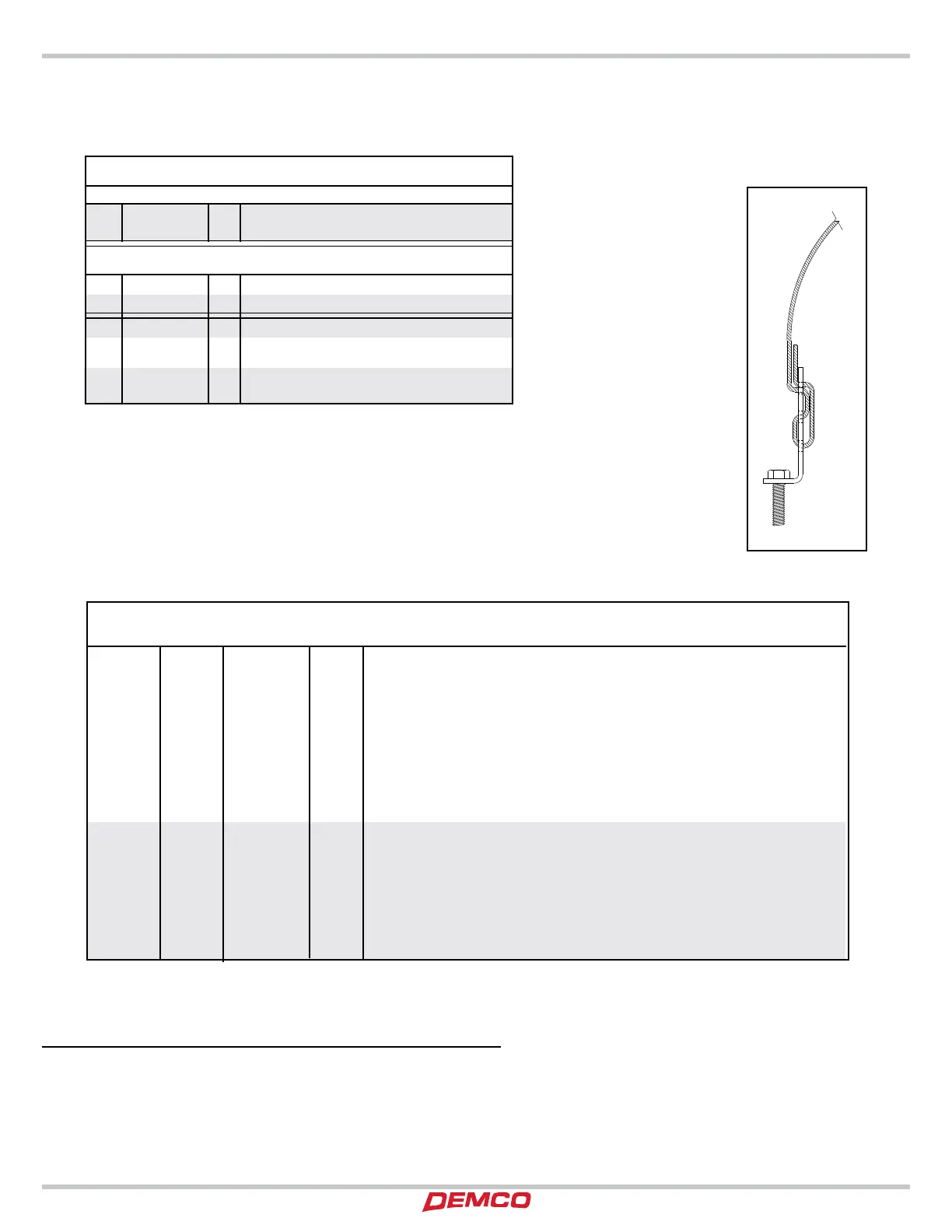

VIEW A
To replace the old style
steel tank bands with new
polyester straps, remove
the steel bands and use the
bolts that secured them to
attach the new straps.
Weave the straps (#1)
through the Strap Anchors
(#2) as shown in *Allow a
minimum of 2” overlap past
the anchor on the tank side
of strap.
INSTALLATION
*
1
2
3
Please order replacement parts by PART NO. and DESCRIPTION.
Please order replacement polyester strap material by PART NO., DESCRIPTION and by the LINEAR FOOT.
Specify the tank to be fit and material will be cut to length before shipment.
1. - 2 Polyester Strap
05367 - 1-3/4”-Black Strap (Sold per foot)
03728 - 4”-Black Strap (Sold per foot)
2. - 2 Strap Anchor
05785-95 2 Small Strap Anchor (1-3/4”)
05784-95 2 Large Strap Anchor (4”)
3. 04352 2 5/16”-18 UNC x 4” Full Thread Bolt
- 02802 2 5/16”-18 UNC Nylon Insert Locknut
3. 01885 2 3/8”-16 UNC x 5” Full Thread Bolt
3. 02157 2 3/8”-16 UNC x 6” Full Thread Bolt
- 02592 2 3/8”-16 UNC Nylon Insert Locknut
INCHES USED
PER BAND
LENGTH
STRAP
WIDTH COLOR PART NO. TANKS
1-3/4” Black *05367 50” Planter Tanks P25 23, P55 23, P85 24, P110 24
64” Planter Tanks P110 30, P150 30
56” 150-250 gallon Cutaway tanks (Short side one per tank)
74” 150-250 gallon Cutaway tanks (Tall side one per tank)
60” 200 gallon P200 32
86” 200 gallon elliptical PE200R
50” Lawn & Garden Line tanks P55 23, P85 24
64” 110, 150 gallon Rear Mount tanks P110 30, P150 30
86” 300 gallon PE300R, P300 38
4” Black *03728 82” 400 & 500 gallon P400 42, P500 42 and S42 (saddle)
112” 400 & 500 gallon PE400R, PE500R, 750 gallon PE750DA
94” 500 & 600 gallon PE500A, PE600A & S48, PS548A (saddles)
108” TMC 500 gallon SKD”48”
126” 750 gallon PE750A, 1000 gallon PE1000DA
130” 1000 & 1600 gallon elliptical tank P1000A and PS-1016E (skid)
126” 60” dia. round tanks SKD”60” (skid)
150” 72” dia. round tanks SKD”72” (skid)
POLYESTER BANDS FOR DEMCO TANKS
