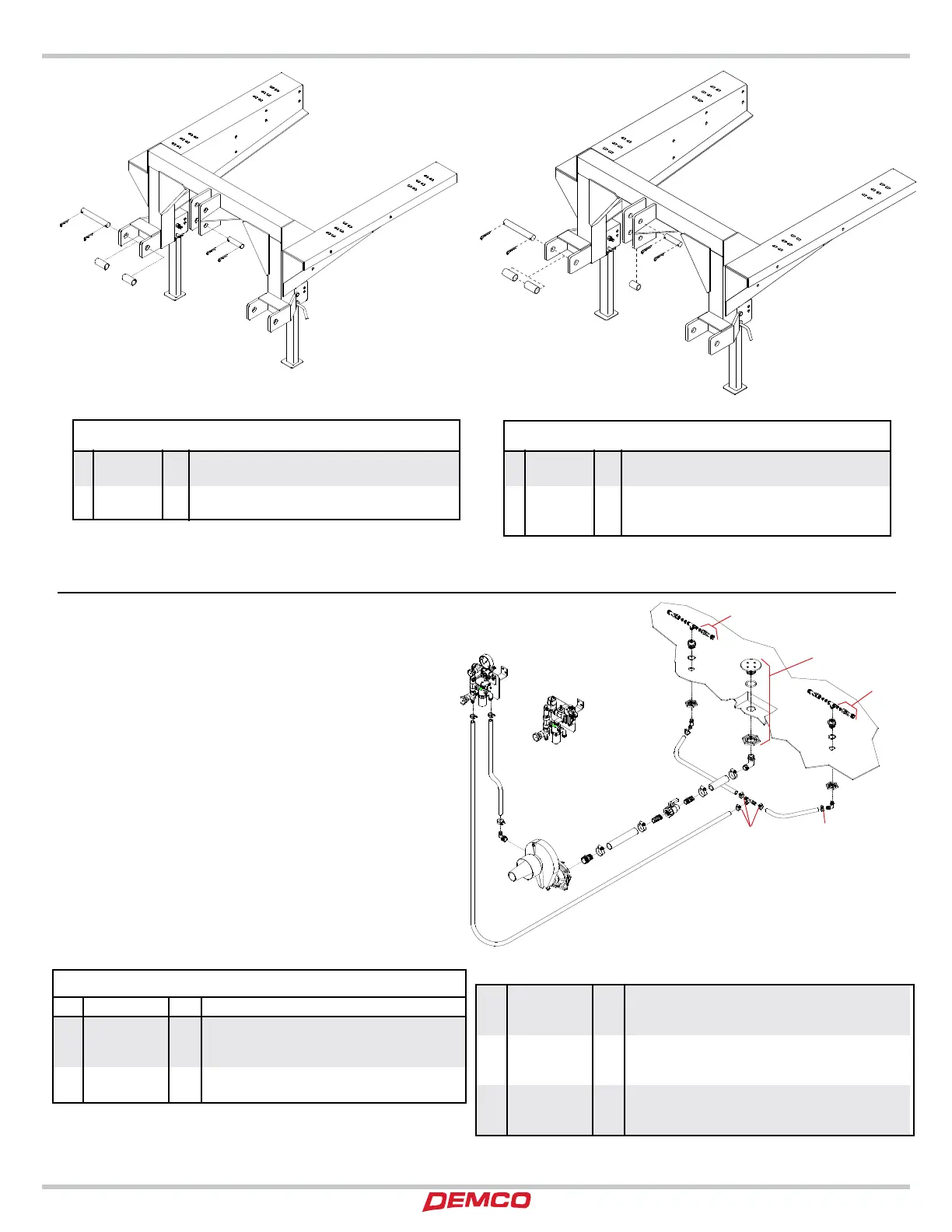

Demco RMLE - Category II & Category III Parts Breakdown & List; Single Section Plumbing Kit (9470004) Parts Breakdown & List

Page 20 AC20021
2
3
3
1
4
2
1
4
4
2
5
4
4
4
REF. PART
NO. NO. QTY. DESCRIPTION
Please order replacement parts by PART NO. and DESCRIPTION.
1. 05382-95 2 1-1/8” x 7-3/4” Pin
2. 00328-95 4
1-7/16 “O.D x 1-3/16” I.D x 3” lg. Bushing
3. 00332-95 1 1” Dia. x 4” Pin
4. 00006 6 3/16” Hairpin
REF. PART
NO. NO. QTY. DESCRIPTION
CATEGORY II HITCH MODEL RMSE PARTS LIST
Please order replacement parts by PART NO. and DESCRIPTION.
1. 05382-95 2 1-1/8” x 7-3/4” Pin
2. 00328-95 4 1-7/16 “O.D x 1-3/16” I.D x 3” lg. Bushing
3. 00332-95 1 1” Dia. x 4” Pin
4. 00006 6 3/16” Hairpin
5. 05383-95 1 1-1/4” O.D x 1” I.D x 1-15/16” Bushing
4
4
CATEGORY III HITCH MODEL RMLE PARTS LIST
Please order replacement parts by PART NO. and DESCRIPTION.
8. B12H 8 3/4” SS Gear Clamp
9. 340RB - 3/4” I.D. Rubber Hose
10. T34 1 3/4” Tee
11. BEL1034 1
1” MPT x 3/4” Hose Barb Elbow Fitting (GFP)
12. BEL114 3 1-1/4” MPT x 1-1/4” Hose Barb Elbow Fitting(GFP)
13. B24H 10 1-1/4” SS Gear Clamp
14. 1140RB - 1-1/4” I.D. Rubber Hose
15. BA114 4 1-1/4” MPT x 1-1/4” Hose Barb Fitting (GFP)
16. UV125FP 2 1-1/4” Nylon Ball Valve
Tank
See Control Panel Own-
ers Manual for Hook-Up
& Operation
Centrifugal
Pump
Plumbing Kit for Front/Rear Mounts
9470004 - Single Section Control
1
2
3
3
5
7
8
8
9
9
9
10
11
14
13
13
13
13
12
15
15
16
14
8
7
8
8
9
8
1
2
3
3
3
6
15
Electric
Control
Manual
Control
2
REF. PART
NO. NO. QTY. DESCRIPTION
PLUMBING PARTS LISTS
- D3371PA 2 Agitation Assembly
1. *5044 1 2 Jet Agitation Wand Assembly
2. *R1212 1 Jet Agitation Tee Fitting
3. *P012DA 1 Jet Agitation Fitting
6. P114AV 1 1-1/4” Anti-Vortex Tank Outlet Assembly
7. BEL1234 2 1/2” MPT x 3/4” Elbow Fitting (GFP)
* These items sold as complete part only (D3371P).
TOW AND THREE POINT HITCH INSTRUCTIONS
