Demco RMLE - Ground Storage Stands for X-Fold Parts Breakdown & Assembly Instructions

AC20021 Page 19
9488011 PARTS LIST
1. 07650-30 2 Rear Leg Receiver Tube
2. 05583 4 3/8”-16 UNC x 2-1/8” x 4-7/8” Square U-bolt
3. 00059 8 3/8” Flatwasher
4. 02592 12 3/8”-16 UNC Nylon Insert Locknut
5. 07651-30 2 Rear Insert Tube
6. 01404-95 2 Locking Bolt
7. 07735-30 4 Adjustable Leg
8. 01718-95 4 Lock Pin
9. 00182 4 .125 Hair Pin
Please order replacement parts by PART NO. and DESCRIPTION.

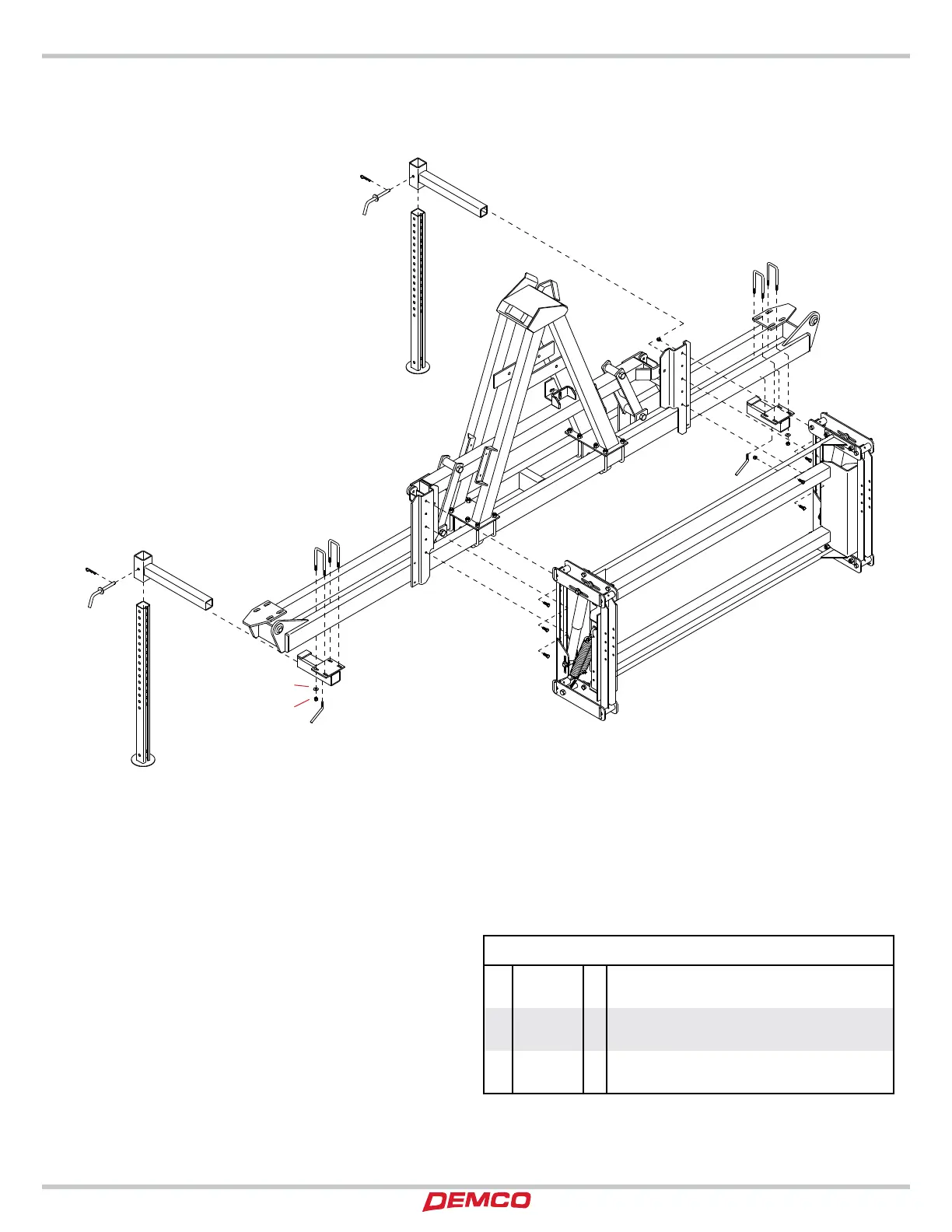

STORAGE STANDS ASSEMBLY INSTRUCTIONS
The Flotation Boom Mount and 3-Point Mount
must be assembled before proceeding.
1. Mount the Rear Leg Receiver Tube (#1) to the bottom of the
Center Tube Assembly using two 3/8” Square U-Bolts (#2),
four 3/8” Flatwashers (#3) and four 3/8” Locknuts (#4).
2. Insert the Rear Insert Tube (#5) and secure using a 3/8”
Locking Bolt (#6)
3. Insert the Adjustable Legs (#7) and secure using a Locking
Pin (#8) and Hair Pin (#9)
Repeat on other side.
1
2
3
4
7
6
5
1
2
3
4
6
9
8
7
5
9
8
GROUND STORAGE STANDS FOR X-FOLD MOUNTING
