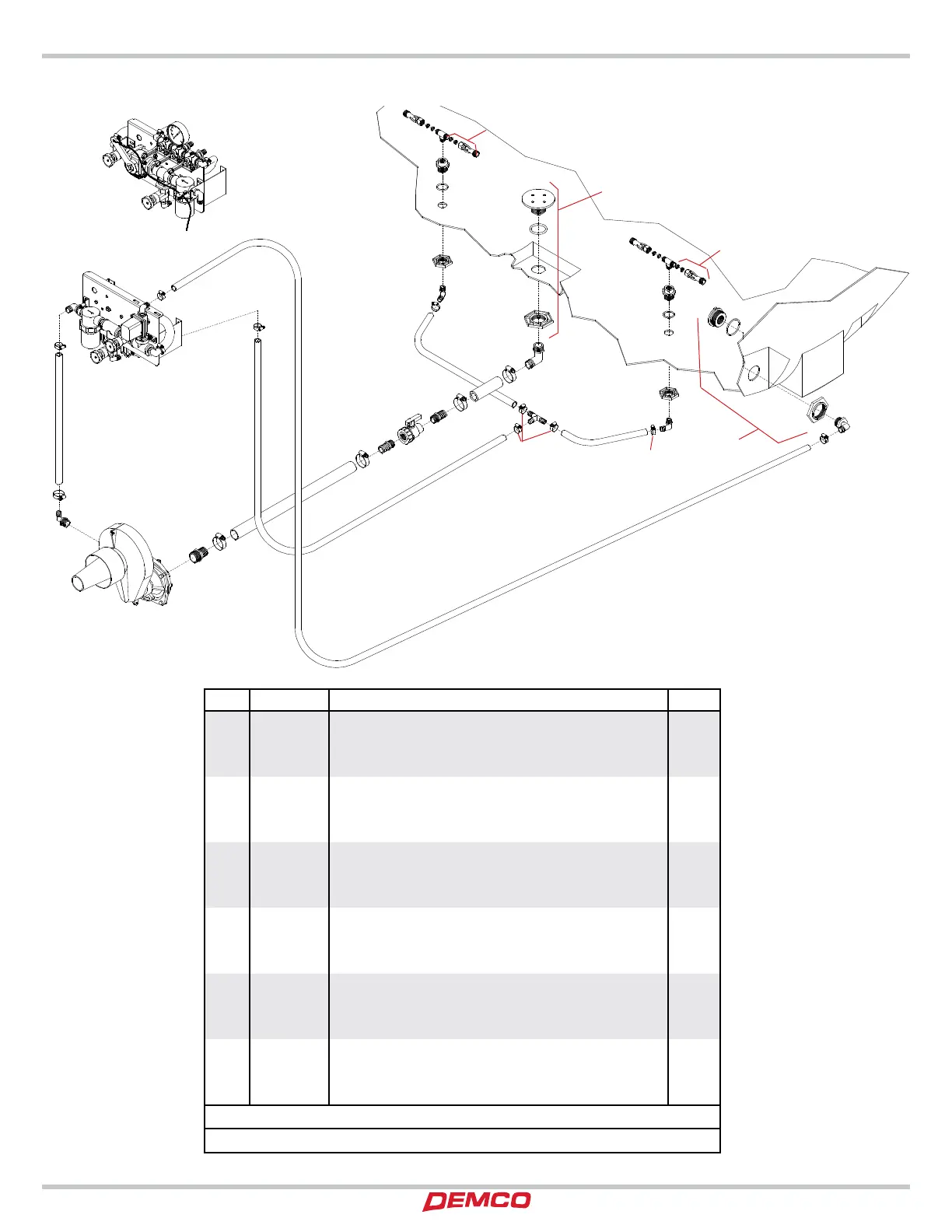

Demco RMLE - Section Plumbing Kit (9470005) Parts Breakdown & List

AC20021 Page 21
Tank
See Control Panel Own-
ers Manual for Hook-Up
& Operation
Centrifugal
Pump
1
2
3
3
5
7
8
8
9
9
9
10
11
17
16
16
16
16
15
18
18
19
17
8
7
12
12
13
12
1
2
3
3
3
6
18
Electric
Control
Manual
Control
8
12
11
13
14
PLUMBING KIT FOR FRONT/REAR MOUNTS
9470005 - 3 SECTION CONTROL
ITEM PART # DESCRIPTION QTY
- D3371PA AGITATION ASSEMBLY 2
1 *5044 1 JET AGITATION WAND ASSEMBLY 2
2 *R1212 JET AGITATION TEE FITTING 1
3 *P012DA JET AGITATION FITTING 1
6 P114AV 1-1/4” ANTI-VORTEX TANK OUTLET ASSEMBLY 1
7 EL1234 1/2” MPT X 3/4” ELBOW FITTING (GFP) 2
8 B12H 3/4” SS GEAR CLAMP 8
9 340RB 3/4” I.D. RUBBER HOSE -
10 T34 3/4” TEE 1
11 BEL114 1 1-1/4” MPT X 1” HOSE BARB ELBOW FITTING (GFP) 1
12 B16 H 1” SS GEAR CLAMP 4
13 1010RB 1” I.D. RUBBER HOSE -
14 P114A 1-1/4” TANK FITTING ASSEMBLY 1
15 BEL114 1-1/4” MPT X 1-1/4” HOSE BARB ELBOW FITTING (GFP) 3
16 B24H 1-1/4” SS GEAR CLAMP 10
17 1140RB 1-1/4” I.D. RUBBER HOSE -
18 BA114 1-1/4” MPT X 1-1/4” HOSE BARB FITTING (GFP) 4
19 UV125FP 1-1/4” NYLON BALL VALVE 2
Please order replacement parts by PART NO. and DESCRIPTION
* These items sold as complete unit only (D3371PA)
