3. Maintenance and Troubleshooting
C-250E R14 Page 19

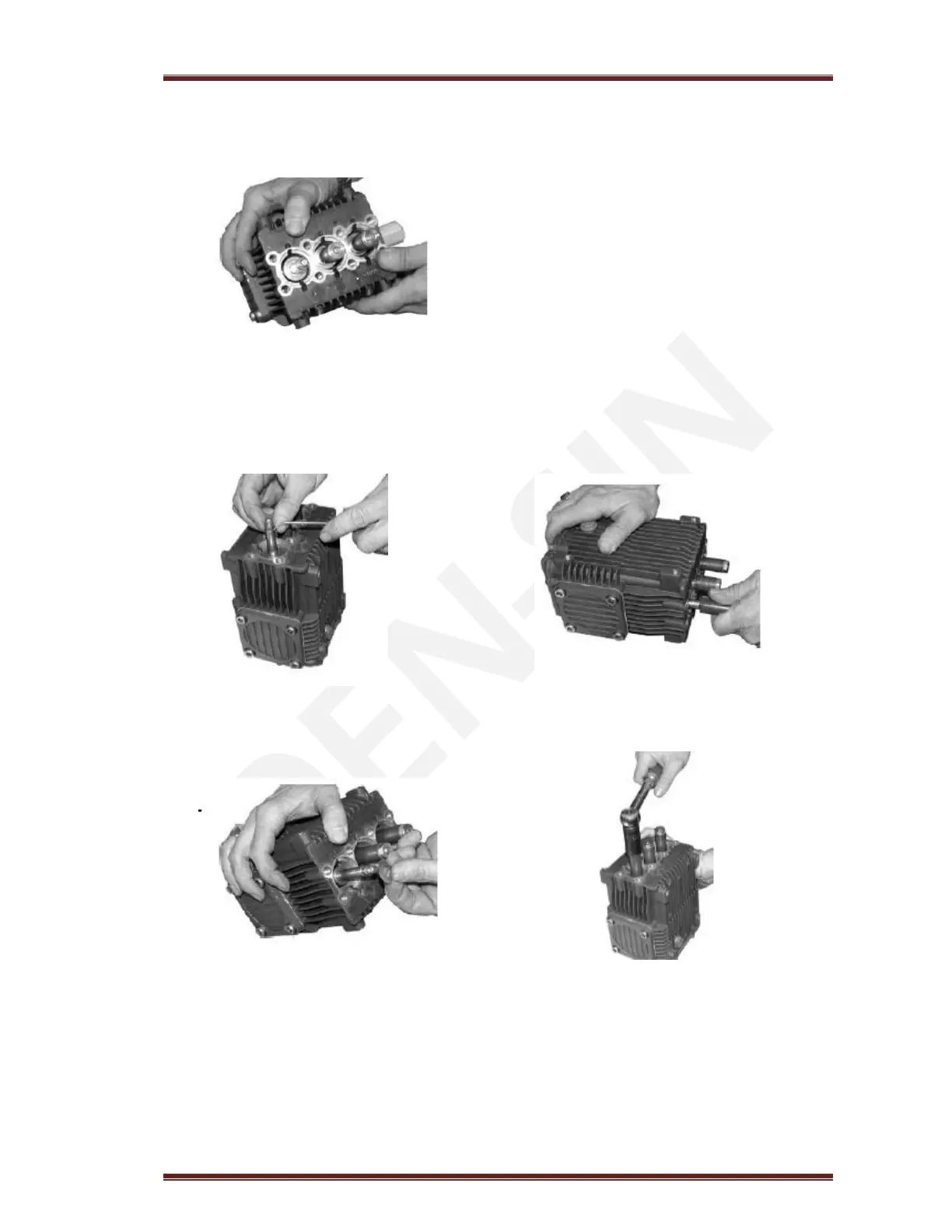

Assembly:
1) Install the slinger washer. (See Fig.26)
2. Install the plunger rod O-ring and split back-up ring. Place a light film of oil on the O-
ring and back-up ring. (See Fig. 27)
3. Install the plunger by pushing straight down and twisting slightly in either direction (See
Fig. 28)
4. Install the small copper washer on top of the plunger and place a small quantity of thread
sealant in the thread. Install the plunger nut and tighten to the required torque. (See Fig. 29
& 30)
Fig.26
Fig.27 Fig.28
Fig.29
Fig.30
